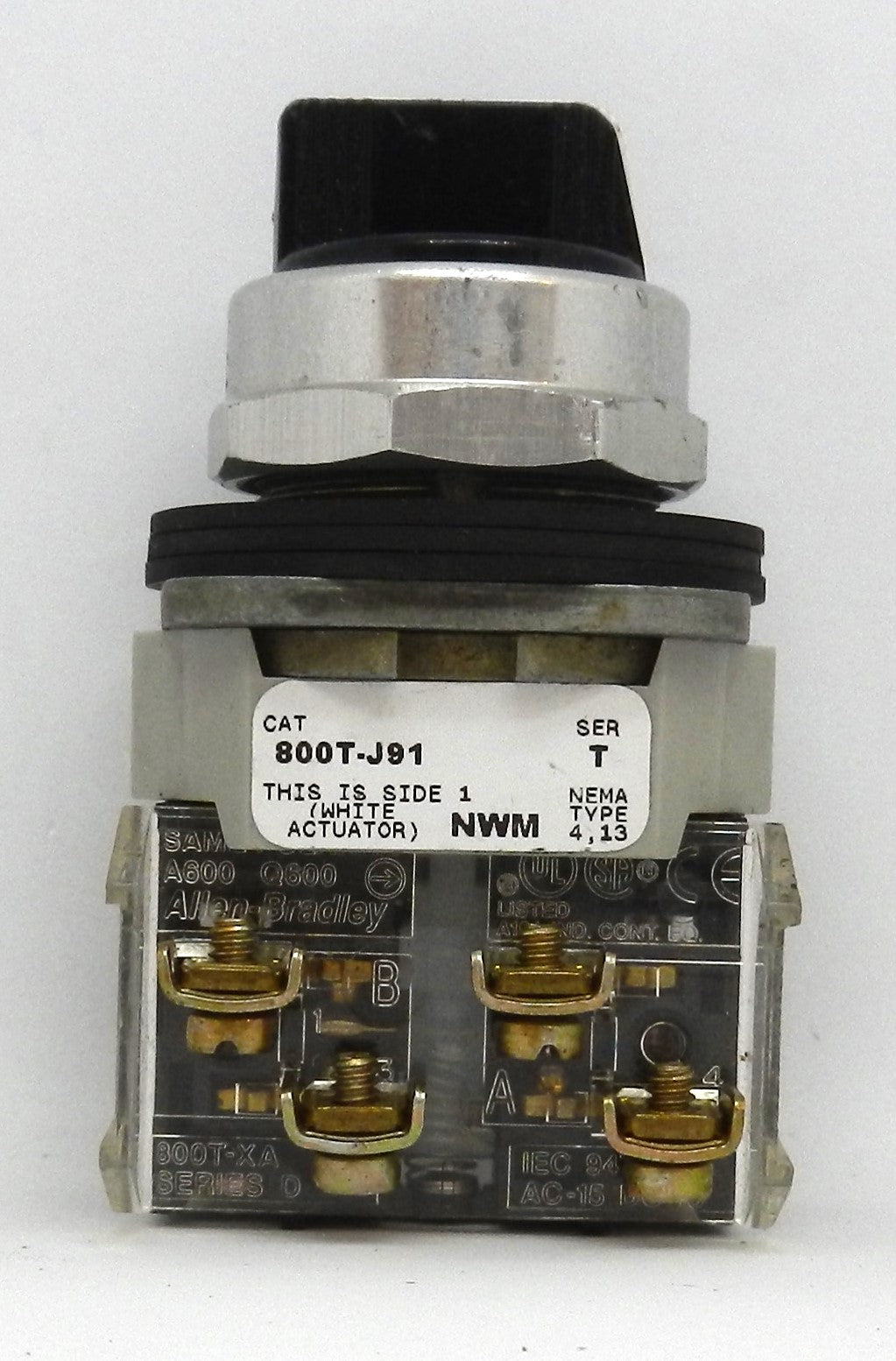

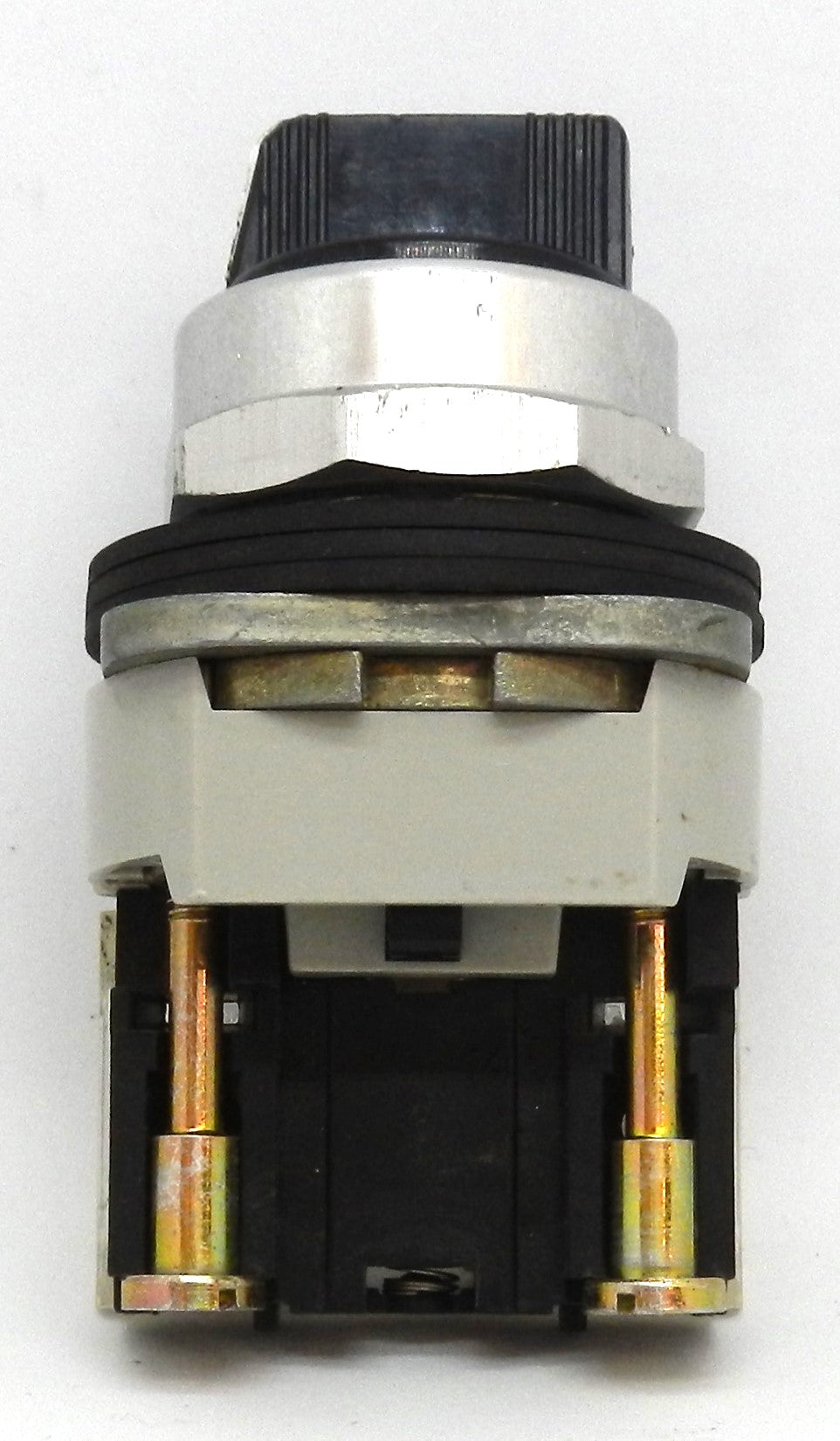

800T-J91 + 800T-XA Allen-Bradley 30mm 3-Position Selector Switch with 1NO 1NC Contact Block

Description:

• Genuine Allen-Bradley 30 mm selector switch assembly consisting of the 800T-J91 selector operator and 800T-XA contact block
• Includes 3-position spring-return selector switch with 1 Normally Open (1NO) and 1 Normally Closed (1NC) standard contact block
• Heavy-duty 30.5 mm NEMA metal operator designed for demanding industrial environments

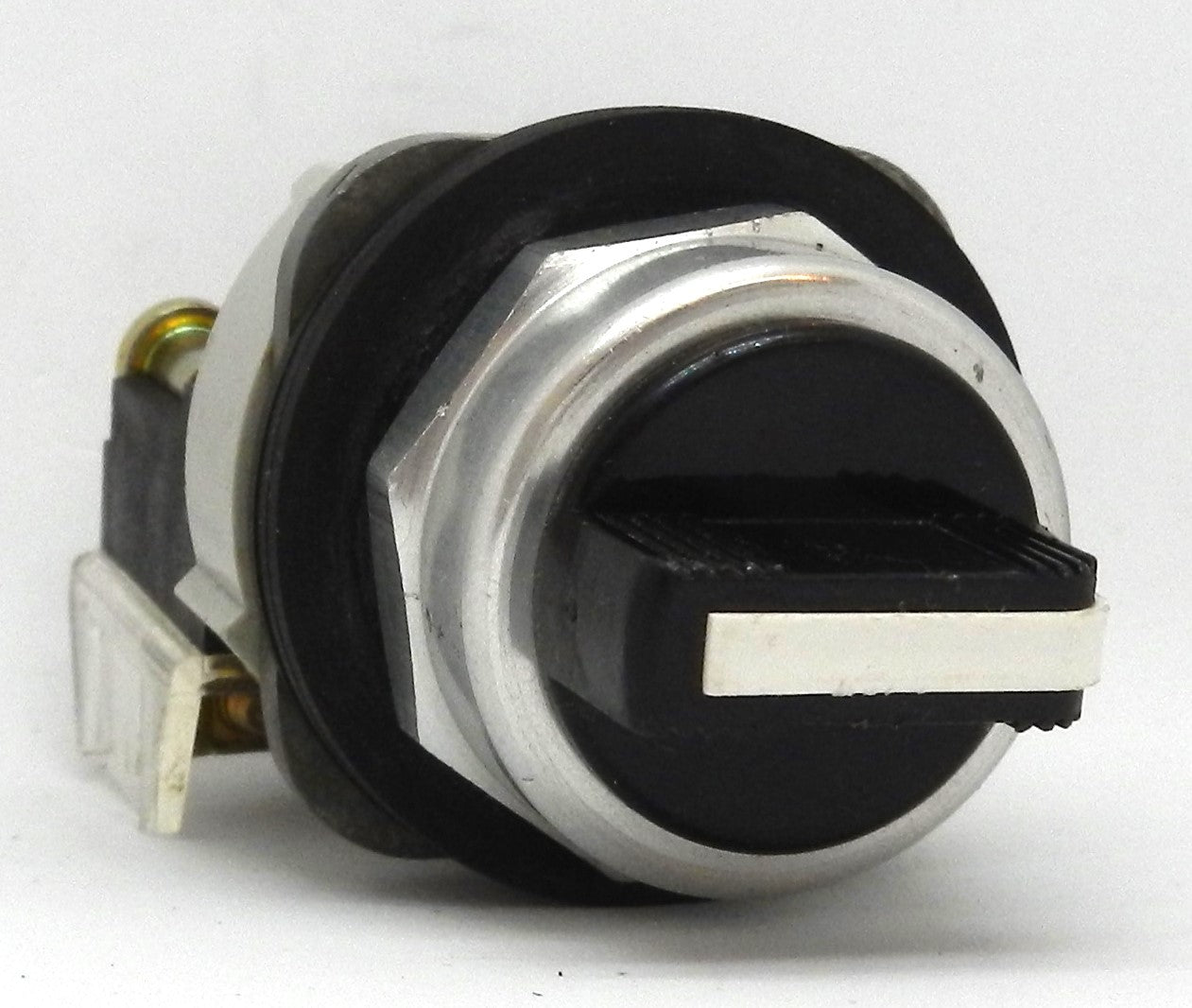

• Standard black knob with white insert provides clear operator identification
• Spring-return operation from both left and right positions for momentary control applications
• 800T-XA contact block is rated for industrial motor and control circuits up to 600V AC/DC
• Screw terminal connections ensure secure and reliable field wiring
• Compatible with the complete Allen-Bradley 800T family of pilot devices and accessories
• Ideal for motor control, machine automation, process control, control panels, OEM equipment, and industrial automation systems
• Active product supported by Rockwell Automation.

Specifications:

Selector Switch Operator (800T-J91)

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 800T-J91
• Product Series: Bulletin 800T
• Product Type: 30 mm Selector Switch Operator
• Number of Positions: 3
• Operator Function: Spring Return from Left and Right
• Operator Type: Standard Knob
• Cap Color: Black with White Insert
• Mounting Hole Diameter: 30.5 mm
• Mechanical Life: 1,000,000 Operations
• Enclosure Rating Compatibility:
  • NEMA 1
  • NEMA 4
  • NEMA 12
  • NEMA 13
• Construction: Metal Operator with Plastic Knob
• Country of Origin: China

Contact Block (800T-XA)

• Contact Configuration: 1 Normally Open (1NO) + 1 Normally Closed (1NC)
• Thermal Current Rating: 10 A
• Maximum Operational Voltage:
  • 600 VAC
  • 600 VDC
• Utilization Category:
  • A600 / AC-15
  • Q600 / DC-13
• Terminal Type: Screw Clamp
• Wire Range: 14–18 AWG (x2)
• Contact Mechanical Life: 1,000,000 Operations

Applications

• Industrial Control Panels
• PLC Systems
• Motor Control
• Machine Automation
• OEM Equipment
• Process Control
• Manufacturing Systems
• Electrical Control Stations

Dimensions:

• Mounting Hole Diameter: 30.5 mm (1.20 in)
• Compact 30 mm NEMA operator suitable for standard industrial control panels.

Weight:

• Approximate Weight: 0.11 kg (0.24 lb).
