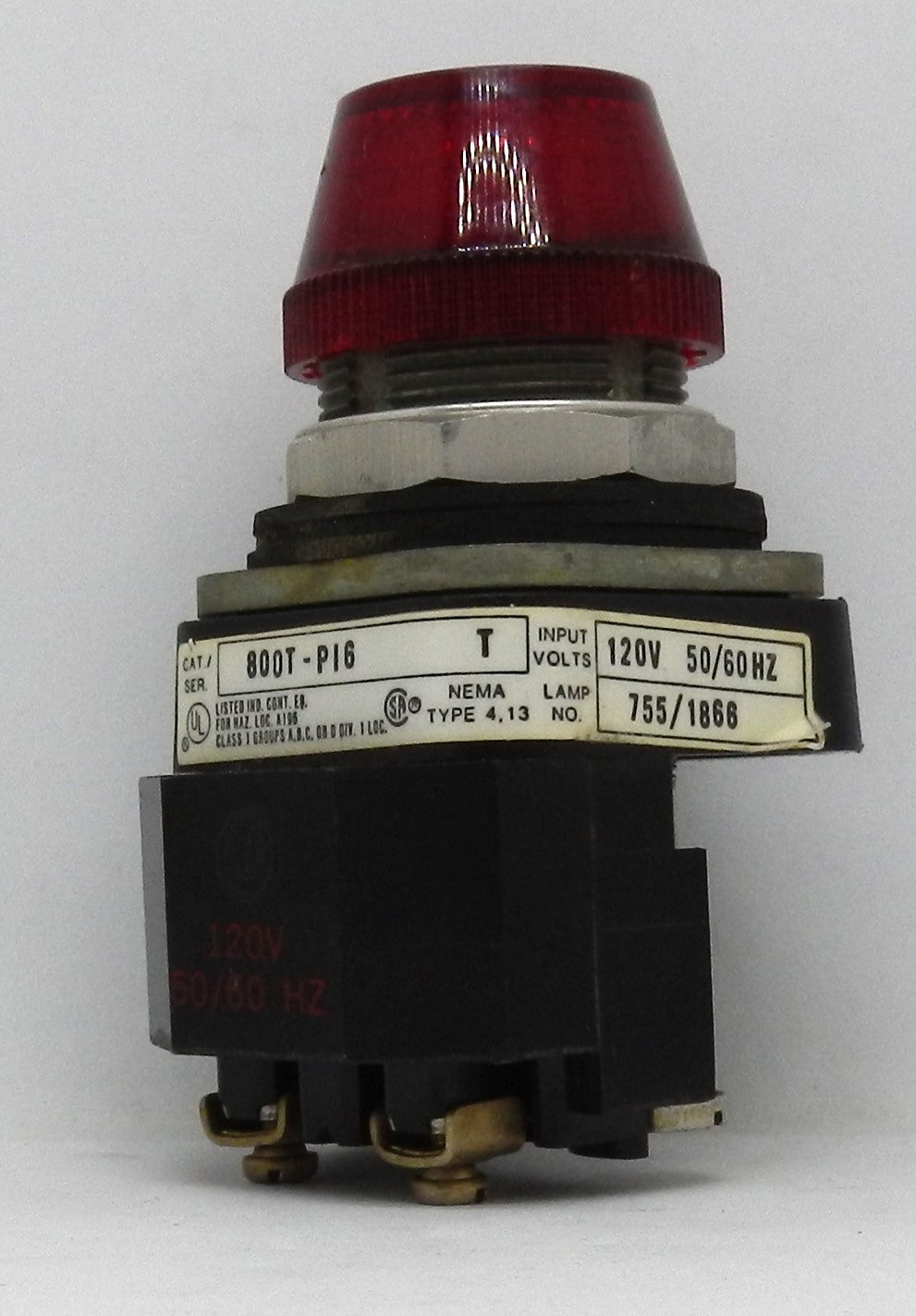

800T-P16 Allen-Bradley 30.5mm Pilot Light 120V AC Transformer Incandescent Metal No Cap Type 4/1

Description:

• Genuine Allen-Bradley Bulletin 800T heavy-duty pilot light for industrial control panels and operator stations
• 30.5 mm panel-mount pilot light with transformer-type incandescent illumination
• Operates on 120V AC, 50/60 Hz with an integrated transformer illumination module
• No test option and no lens cap, allowing use with compatible 800T colored lens caps
• Rugged die-cast metal construction designed for demanding industrial environments
• Screw terminal connections provide secure and reliable field wiring
• Compatible with NEMA Type 1, 4, 12, and 13 enclosures when properly installed
• Ideal for machine status indication, motor control centers, process automation, OEM equipment, and industrial control panels
• Lifecycle Status: Active.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 800T-P16
• Product Series: Bulletin 800T
• Product Type: Pilot Light
• Panel Cutout: 30.5 mm
• Number of Indicator Lights: 1
• Illumination Type: Incandescent
• Illumination Module Type: Transformer
• Input Voltage: 120V AC, 50/60 Hz
• Operator Material: Metal
• Operator Cap: No Cap
• Connection Type: Screw Terminals
• Enclosure Compatibility:
  • NEMA 1
  • NEMA 4
  • NEMA 12
  • NEMA 13
• Operating Temperature: -25°C to +55°C
• Storage Temperature: -40°C
• Country of Origin: China
• Certifications: UL Listed, CSA Certified, CE, CCC
• Applications:
  • Industrial Control Panels
  • Machine Automation
  • Motor Control Centers
  • Process Control
  • OEM Equipment
  • Status Indication

Dimensions:

• Panel Cutout Diameter: 30.5 mm
• Approximate Overall Dimensions:
  • Length: 1-13/16 in
  • Width: 1-13/16 in
  • Height: 2-3/32 in

Weight:

• Approximate Weight: 0.18 kg (0.40 lb).
