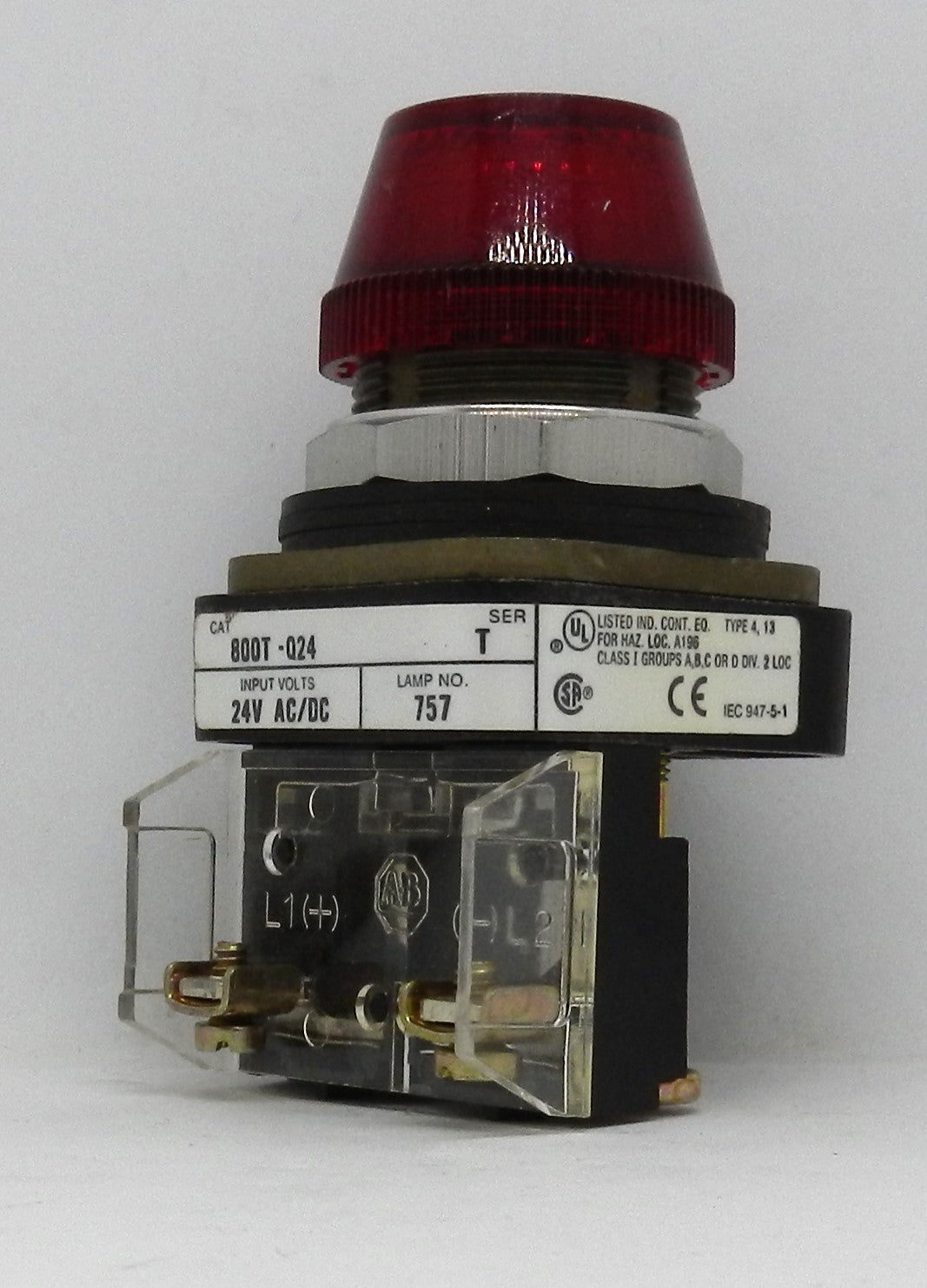

800T-Q24 Allen-Bradley 30.5mm Pilot Light 24V AC/DC Full Voltage Incandescent Metal No Cap Type 4/13

Description:

• Genuine Allen-Bradley Bulletin 800T heavy-duty pilot light for industrial control panels and operator stations
• 30.5 mm panel-mount pilot light with full-voltage incandescent illumination
• Operates on 24V AC/DC with an integrated full-voltage illumination module
• No test option and no lens cap, allowing installation of compatible 800T colored lens caps
• Rugged die-cast metal construction designed for demanding industrial environments
• Screw terminal connections provide secure and reliable field wiring
• Compatible with NEMA Type 1, 4, 12, and 13 enclosures when properly installed
• Designed for machine status indication, process monitoring, motor control centers, OEM equipment, and industrial automation systems
• Manufactured by Rockwell Automation for reliable industrial indication applications.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 800T-Q24
• Product Series: Bulletin 800T
• Product Type: Pilot Light
• Panel Cutout: 30.5 mm
• Number of Indicator Lights: 1
• Illumination Type: Incandescent
• Illumination Module Type: Full Voltage
• Input Voltage: 24V AC/DC
• Operator Construction: Metal
• Operator Type: Pilot Light
• Operator Cap: No Cap
• Electrical Connection: Screw Terminals
• Enclosure Compatibility:
  • NEMA 1
  • NEMA 4
  • NEMA 12
  • NEMA 13
• Operating Temperature: -25°C
• Storage Temperature: -40°C
• Country of Origin: China
• Certifications: UL Listed, CSA Certified, CE, CCC
• Applications:
  • Industrial Control Panels
  • Machine Automation
  • Motor Control Centers
  • Process Control
  • OEM Equipment
  • Status Indication

Dimensions:

• Panel Cutout Diameter: 30.5 mm
• Standard Bulletin 800T operator dimensions for 30 mm control stations.

Weight:

• Approximate Weight: 0.12 kg (0.26 lb).
