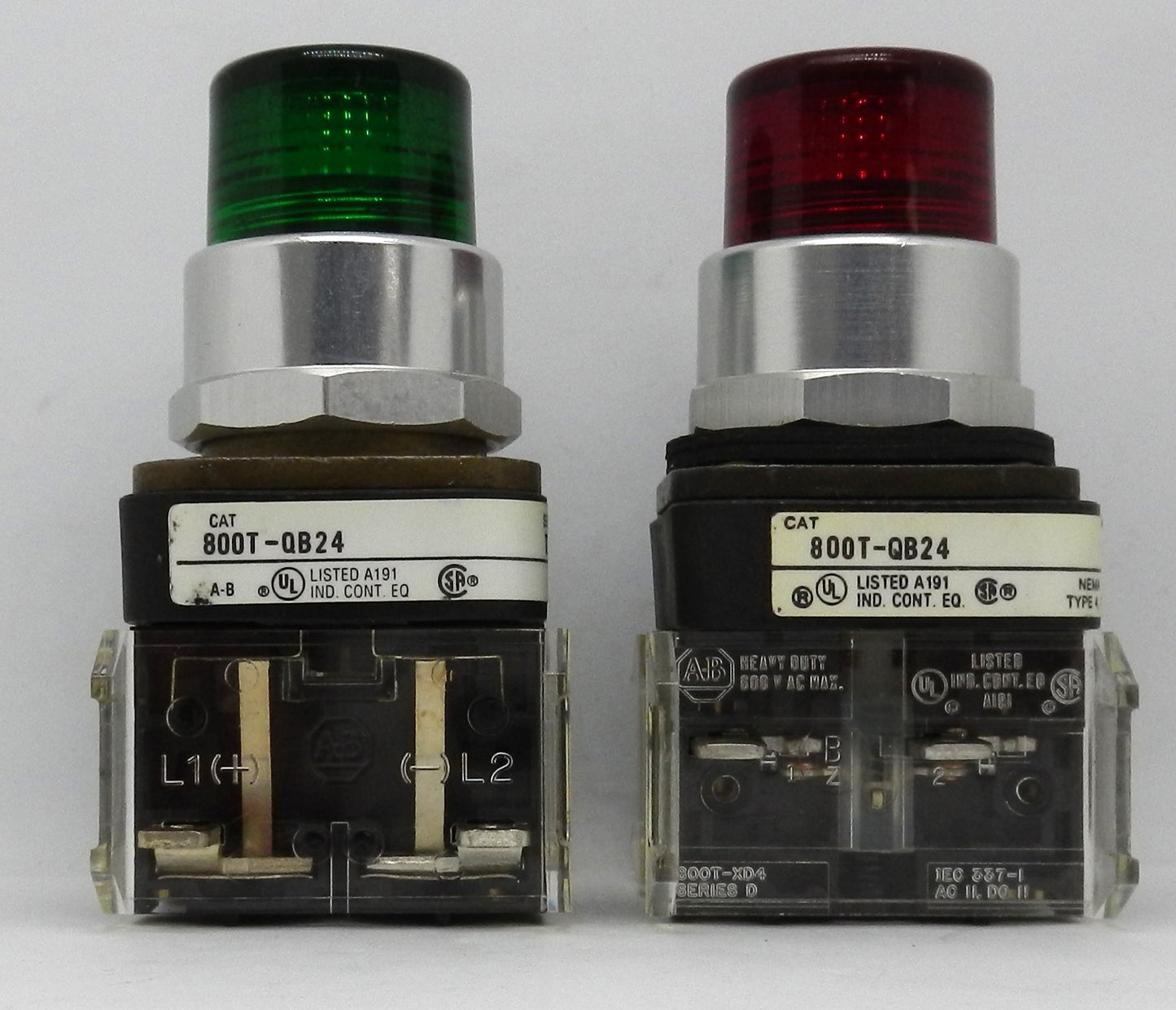

800T-QB24 Allen-Bradley 30.5mm Illuminated Momentary Push Button 24V AC/DC 1NO 1NC Metal Type 4/13

Description:

• Genuine Allen-Bradley Bulletin 800T heavy-duty illuminated momentary push button for industrial control panels and machine automation
• 30.5 mm panel-mount operator with extended head and no guard
• Operates on 24V AC/DC using a full-voltage incandescent illumination module
• Includes 1 Normally Open (NO) and 1 Normally Closed (NC) standard contact blocks
• Rugged die-cast metal construction designed for harsh industrial environments
• Screw terminal connections provide secure and reliable wiring
• Compatible with NEMA Type 1, 4, 12, and 13 enclosures when properly installed
• Ideal for start/stop stations, machine control, OEM equipment, process automation, and industrial control panels
• Manufactured by Rockwell Automation for dependable industrial operation.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 800T-QB24
• Product Series: Bulletin 800T
• Product Type: Illuminated Momentary Push Button
• Operator Style: Extended Head (No Guard)
• Operator Function: Momentary
• Panel Cutout: 30.5 mm
• Illumination Type: Incandescent
• Illumination Module: Full Voltage
• Input Voltage: 24V AC/DC
• Contact Configuration: 1 NO + 1 NC
• Contact Rating:
  • A600 (AC)
  • Q600 (DC)
• Maximum Operational Voltage: 600V AC / 600V DC
• Electrical Connection: Screw Terminals
• Operator Material: Metal
• Enclosure Compatibility:
  • NEMA 1
  • NEMA 4
  • NEMA 12
  • NEMA 13
• Protection Rating: Type 4/13
• Operating Temperature: -25°C to +60°C
• Certifications: UL Listed, CSA Certified, CE
• Applications:
  • Industrial Control Panels
  • Machine Automation
  • Motor Control
  • OEM Equipment
  • Process Control
  • Manufacturing Systems

Dimensions:

• Panel Cutout Diameter: 30.5 mm
• Standard Bulletin 800T heavy-duty operator dimensions for 30 mm control stations.

Weight:

• Approximate Weight: 1.08 kg (2.38 lb).
