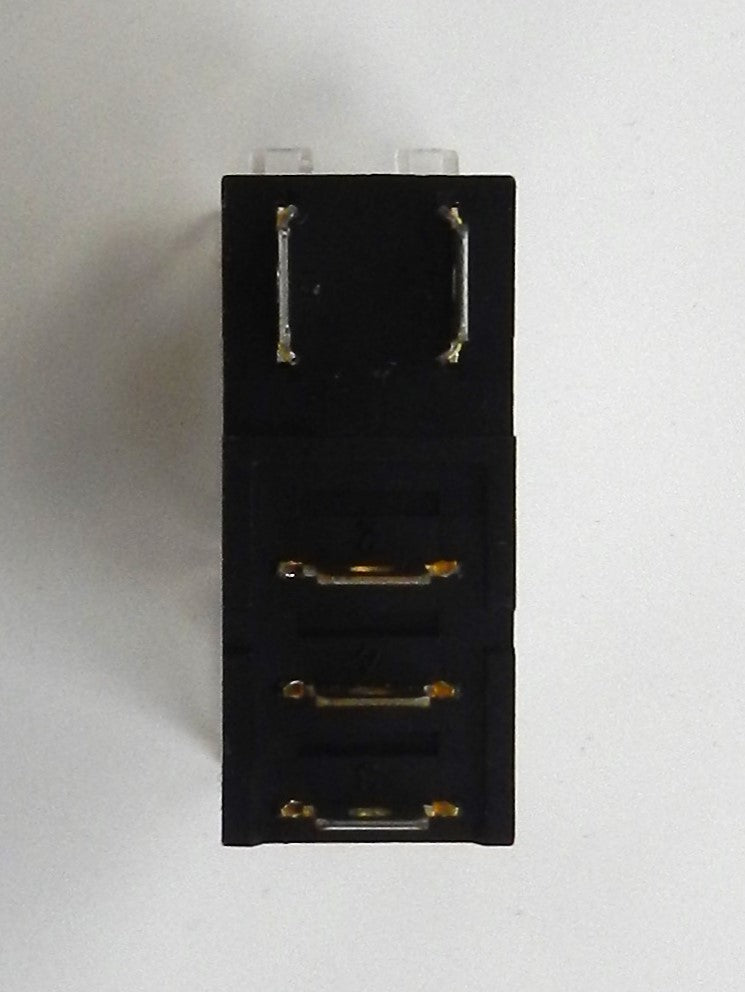

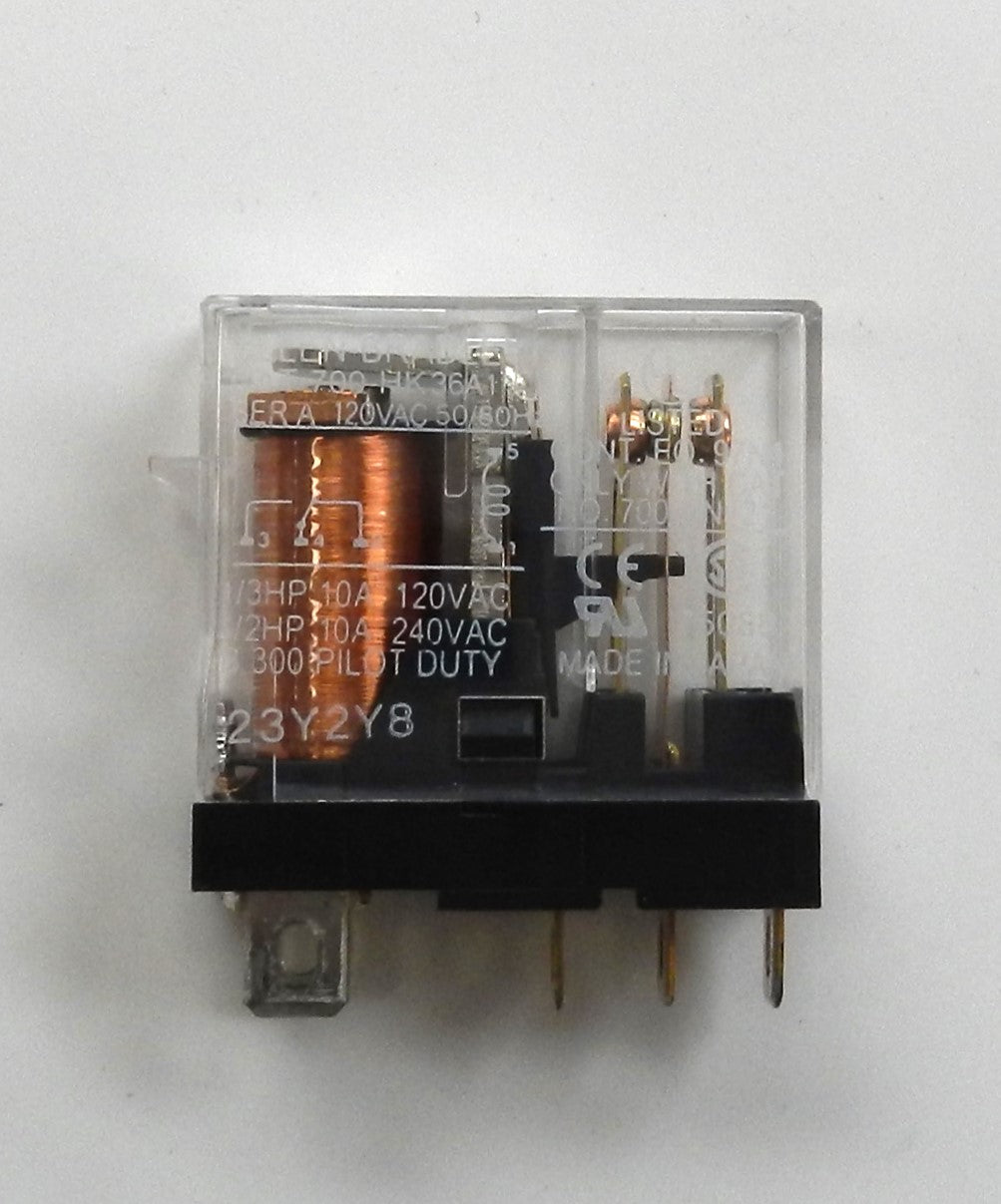

700-HK36A1 Allen-Bradley General Purpose Slim Line Relay SPDT 16A 120VAC Plug-In

Description:

• Genuine Allen-Bradley general-purpose slim line relay for industrial automation and control applications
• Features 1 SPDT (Single Pole Double Throw) changeover contact rated for 16A
• Operates with a 120 VAC 50/60 Hz AC coil
• Compact slim-line design saves valuable DIN rail and panel space
• Plug-in connection allows fast installation, replacement, and maintenance
• Silver nickel (AgNi) contacts provide reliable switching performance and long service life
• Compatible with Allen-Bradley 700-HK series relay sockets (socket sold separately)
• Ideal for interfacing PLC outputs, control panels, machine automation, HVAC, OEM equipment, process control, and industrial switching applications
• Active product in the Allen-Bradley Bulletin 700-HK relay family.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 700-HK36A1
• Product Series: Bulletin 700-HK
• Product Type: General Purpose Slim Line Relay
• Contact Configuration: SPDT (1 Changeover Contact)
• Rated Contact Current: 16 A
• Coil Voltage:
  • 120 VAC, 50 Hz
  • 120 VAC, 60 Hz
• Voltage Type: AC
• Connection Type: Plug-In
• Contact Material: Silver Nickel (AgNi)
• Rated Switching Power:
  • 4000 VA (AC-1)
  • 750 VA (AC-15 @ 230 VAC)
• Breaking Capacity:
  • 12 A @ 30 VDC (DC-1)
• Electrical Life:
  • 30,000 Operations
• Mechanical Life:
  • 10 Million Operations
• Protection Rating: IP20
• Operating Temperature: -40°C to +70°C
• Mounting: Plug-in Socket
• Country of Origin: Italy
• Lifecycle Status: Active
• Applications:
  • PLC Interface Relays
  • Industrial Automation
  • Control Panels
  • HVAC Systems
  • OEM Equipment
  • Machine Control
  • Process Control

Dimensions:

• Width: 12.4 mm (0.49 in)
• Height: 29 mm (1.14 in)
• Depth: 39.3 mm (1.55 in)

Weight:

• Approximate Weight: 0.02 kg (0.04 lb).
