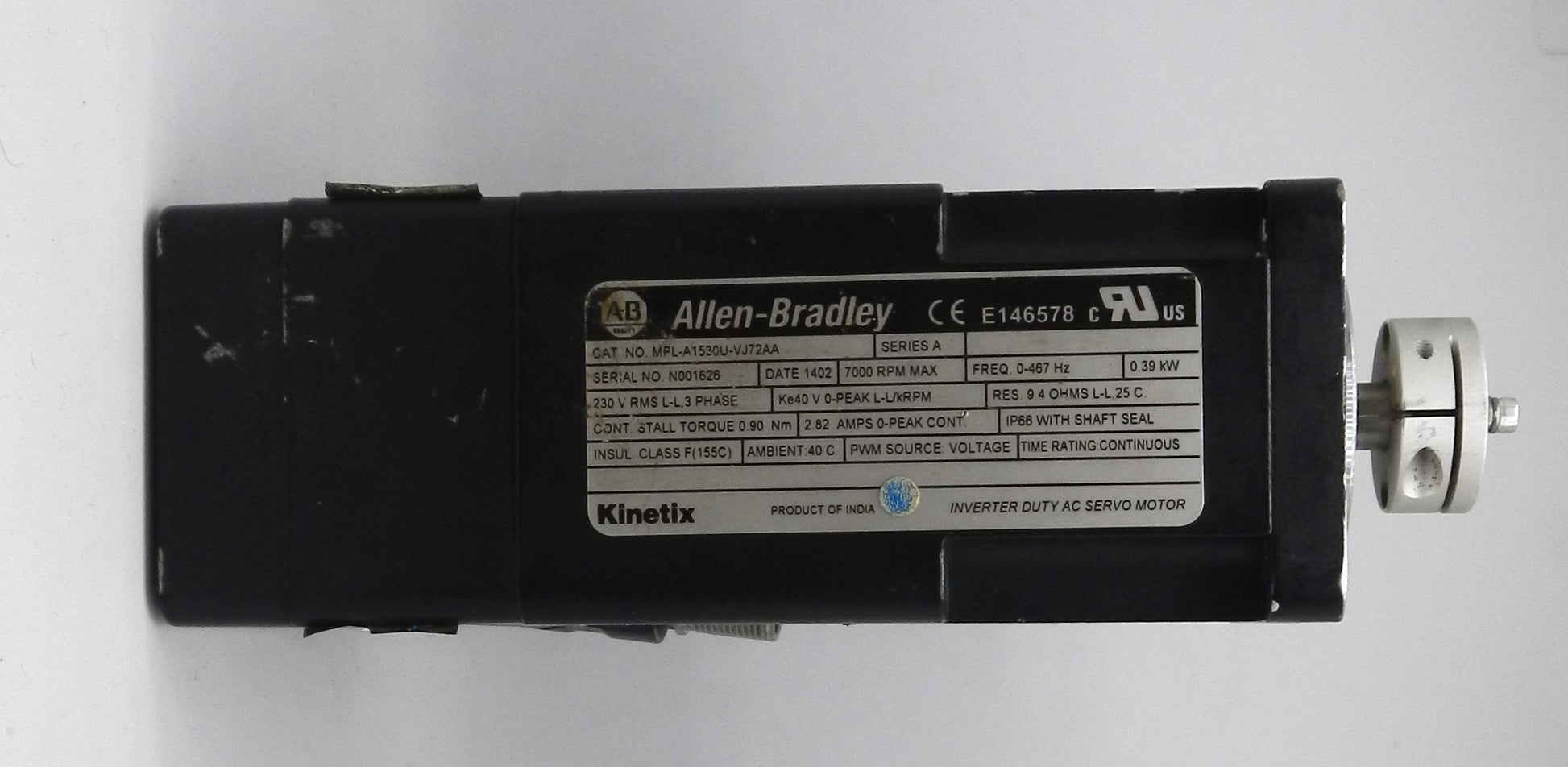

MPL-A1530U-VJ72AA Allen-Bradley Kinetix MP-Series Low Inertia Servo Motor 230V 7000 RPM Absolute Encoder

Description:

• Genuine Allen-Bradley Kinetix MP-Series low-inertia brushless rotary servo motor for high-performance motion control applications
• Operates on 230V AC systems and delivers a rated speed of 7000 RPM
• Features a 63 mm (Frame Size 15) motor frame with a 76.2 mm (3 in.) magnet stack length
• Equipped with a multi-turn high-resolution absolute encoder (Hiperface feedback) for precise positioning and repeatability
• Includes a keyed shaft extension for secure mechanical coupling

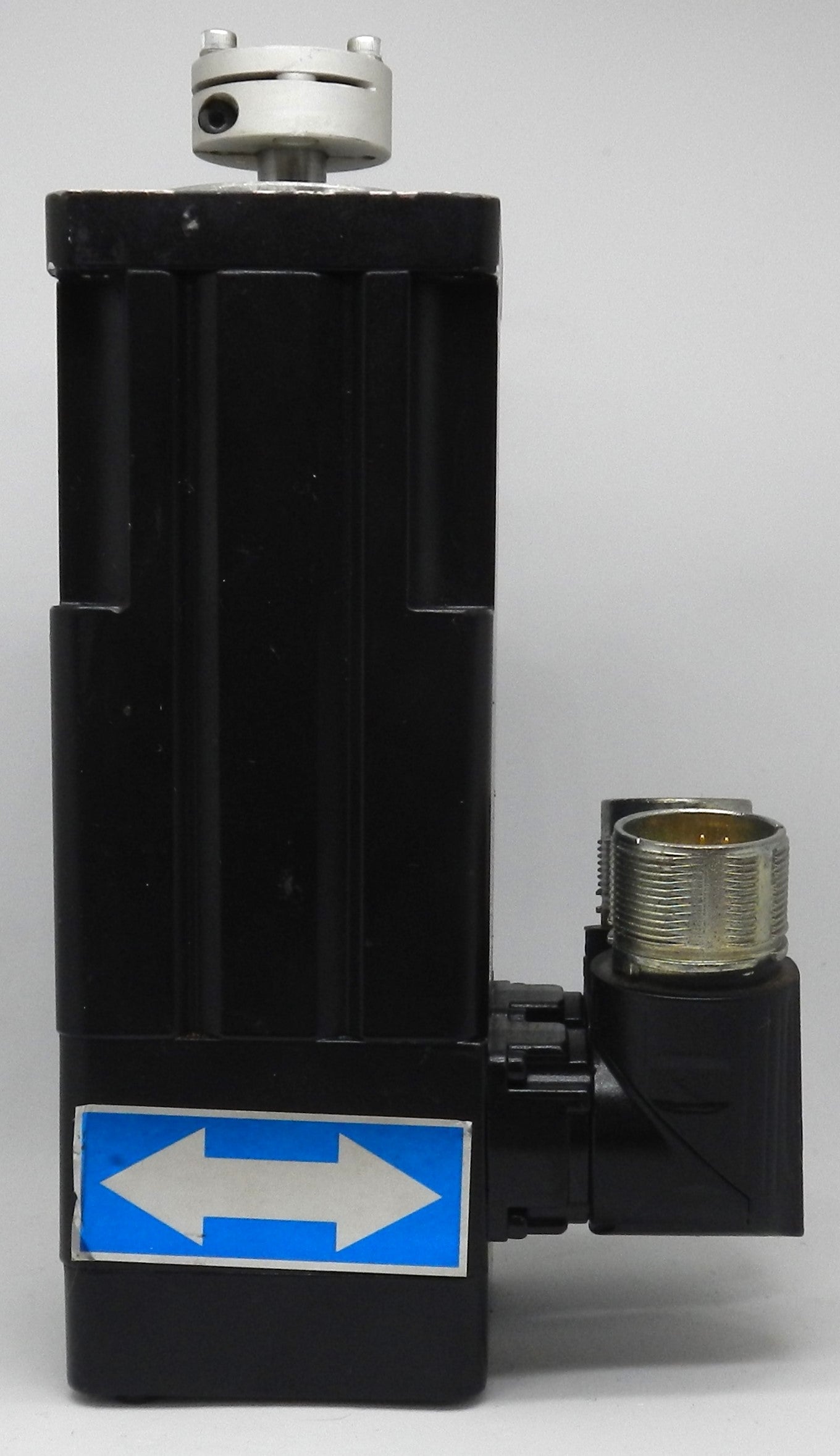

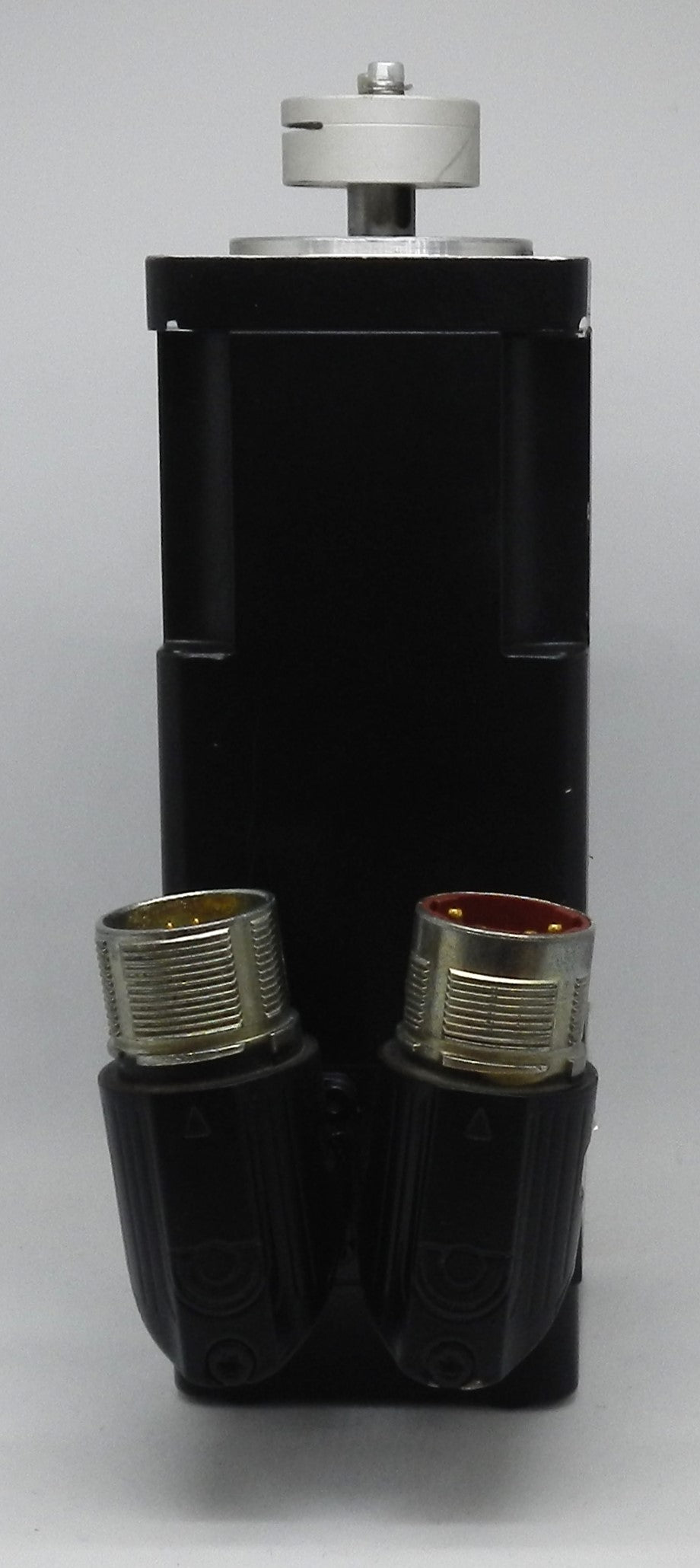

• Features a SpeedTEC DIN right-angle connector with 180° rotatable quick-connect capability for simplified installation
• No holding brake configuration for applications that do not require static load holding
• Designed for use with Allen-Bradley Kinetix servo drive systems including Kinetix 5500, 6500, 6200, 6000, 350, 300, 2000, and 7000 series drives
• Ideal for packaging equipment, robotics, CNC machinery, material handling, machine tools, printing, and industrial automation
• Lifecycle Status: Active.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): MPL-A1530U-VJ72AA
• Product Series: MP-Series MPL
• Product Type: Low Inertia Brushless Rotary Servo Motor
• Voltage Class: 230V AC
• Frame Size: 63 mm (Frame 15)
• Magnet Stack Length: 76.2 mm (3.0 in.)
• Rated Speed: 7000 RPM
• Continuous Rated Power: 0.39 kW
• Continuous Torque: 0.90 Nm
• Peak Torque: 2.80 Nm
• Rotor Inertia: 2.3 × 10⁻⁵ kg·m²
• Feedback:
  • Multi-turn High-Resolution Absolute Encoder
  • Hiperface Protocol
• Shaft Type: Keyed Shaft
• Shaft Seal: None
• Brake: No Brake
• Connector:
  • SpeedTEC DIN
  • Right Angle
  • 180° Rotatable Quick Connect
• Mounting Flange: IEC Metric
• Duty Cycle: S1 Continuous
• Enclosure Rating: IP66
• Operating Temperature: 0°C to +40°C
• Country of Origin: India
• Compatible Drive Families:
  • Kinetix 5500
  • Kinetix 6500
  • Kinetix 6200
  • Kinetix 6000
  • Kinetix 350
  • Kinetix 300
  • Kinetix 2000
  • Kinetix 7000
  • Ultra 3000

Dimensions:

• Frame Size: 63 mm (2.48 in.)
• Magnet Stack Length: 76.2 mm (3.0 in.)

Weight:

• Approximate Weight: 1.36 kg (3.0 lb).
