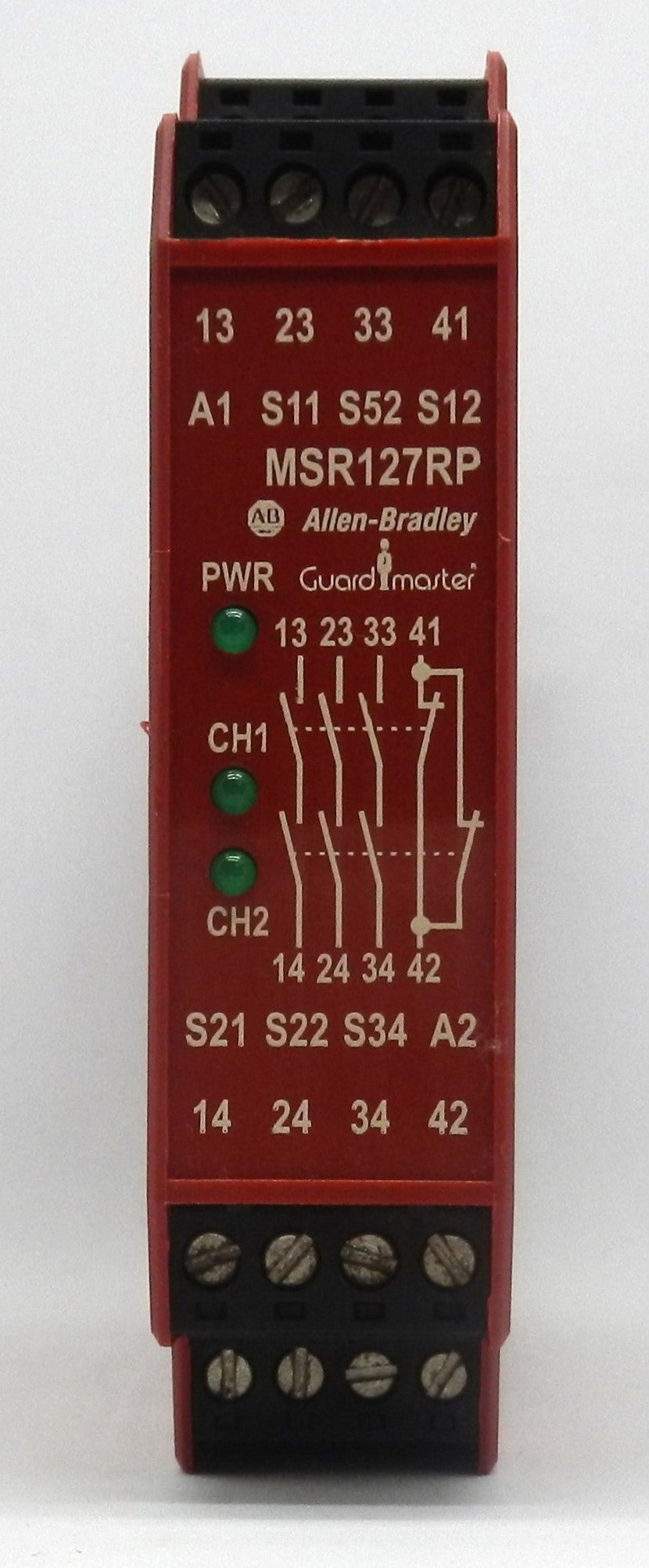

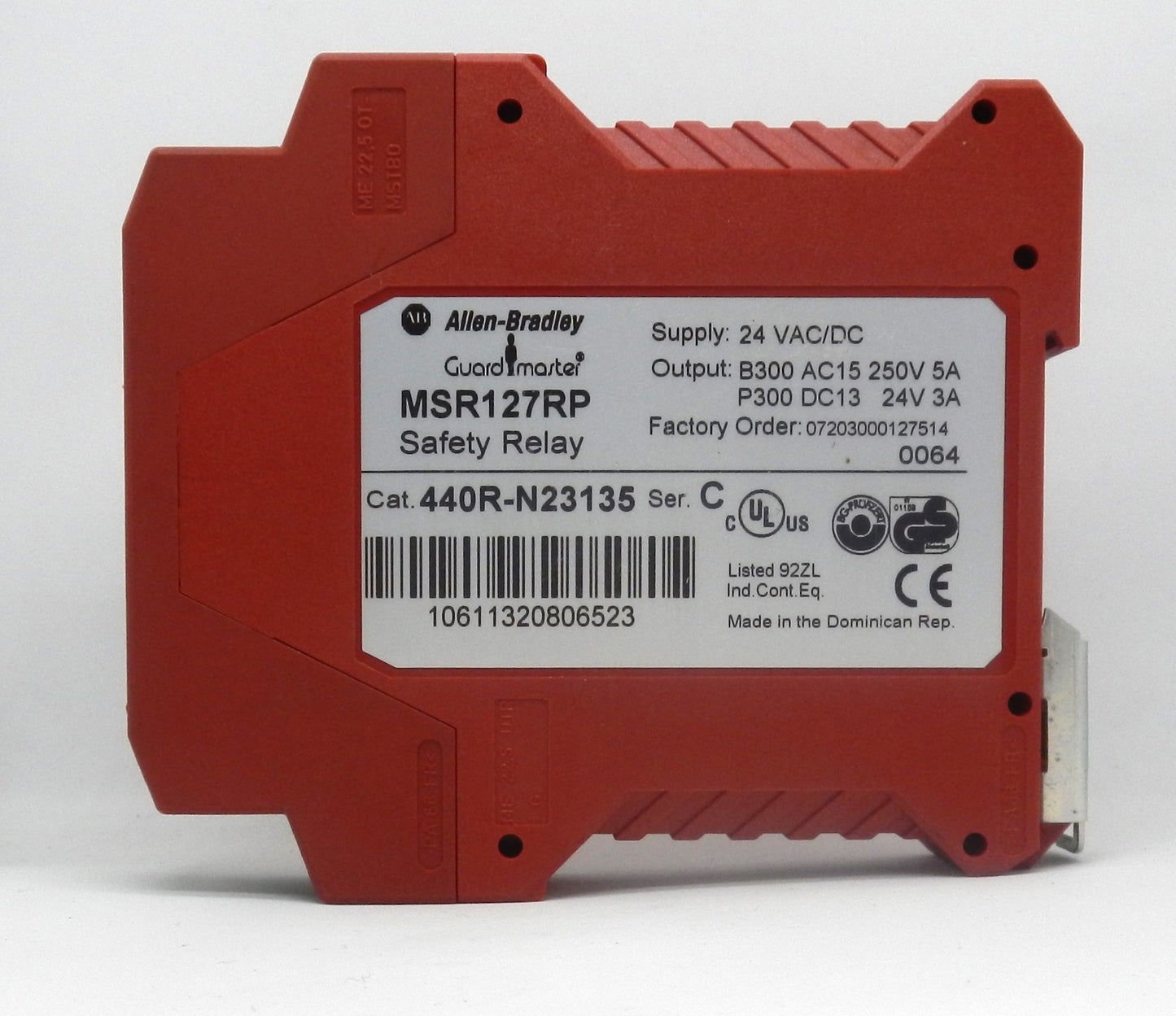

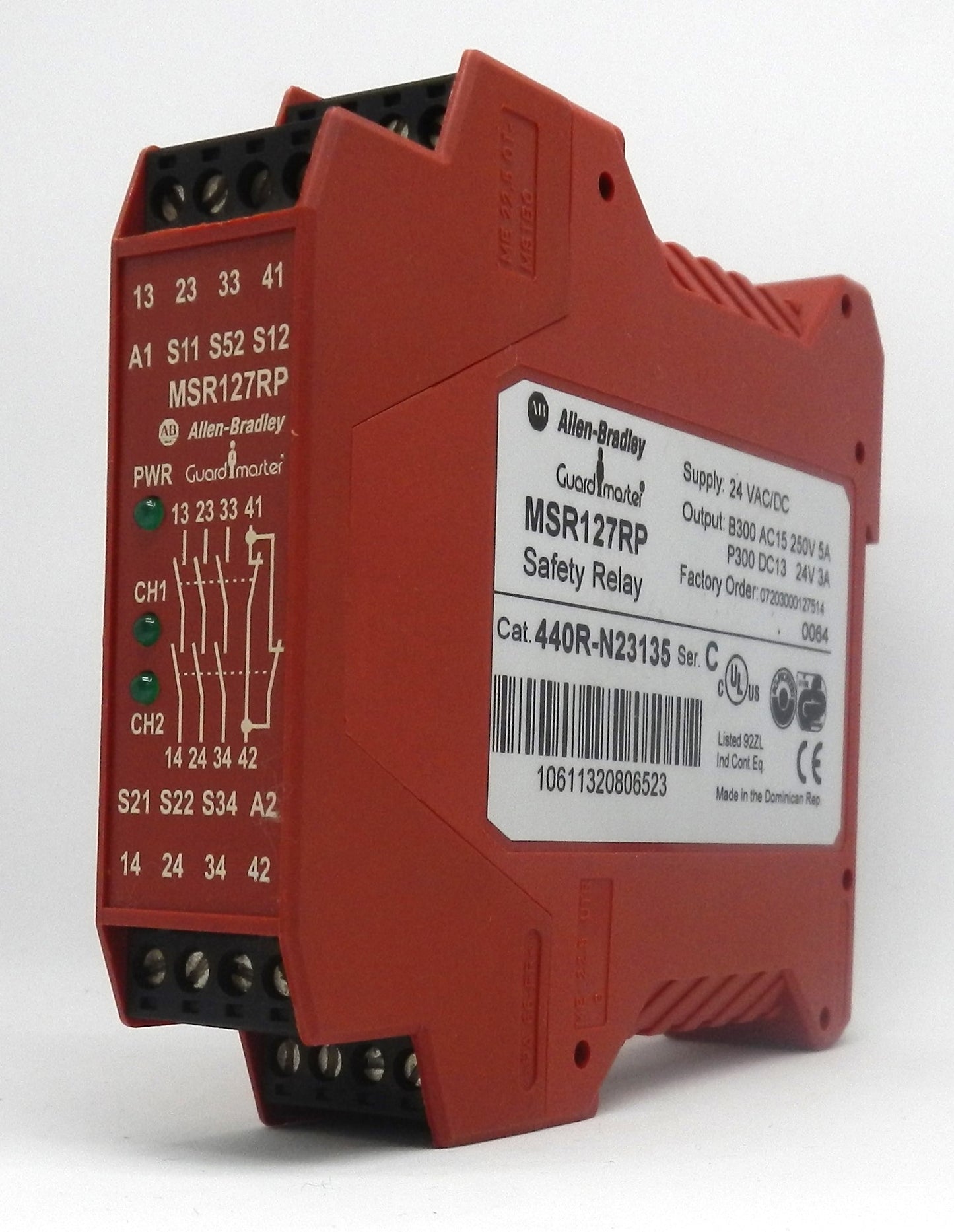

440R-N23135 Allen-Bradley Guardmaster MSR127RP Series C Safety Relay 24V AC/DC Manual Reset

Description:

• Genuine Allen-Bradley Guardmaster single-function safety relay for industrial machine safety applications
• MSR127RP Series C safety relay designed for monitoring emergency stop circuits, safety gates, interlock switches, and light curtains
• Operates on 24V AC/DC control power
• Supports 1 N.C., 2 N.C., or OSSD light curtain inputs for flexible safety device integration
• Features 3 Normally Open (N.O.) safety outputs and 1 Normally Closed (N.C.) auxiliary output
• Monitored manual reset function enhances machine safety and prevents unexpected restart
• Compact 22.5 mm housing with removable screw terminals for quick installation and maintenance
• DIN rail mount design for easy integration into industrial control panels
• Certified to Category 4, PLe (ISO 13849-1) and SIL CL 3 (IEC 62061) for high-performance safety applications
• Ideal for machine guarding, conveyors, robotics, packaging machinery, manufacturing equipment, and industrial automation.

Specifications:

• Manufacturer Name: Allen-Bradley (Rockwell Automation)
• Part Number (MPN): 440R-N23135
• Relay Model: MSR127RP
• Series: Series C
• Product Family: Guardmaster 440R
• Product Type: Safety Relay
• Supply Voltage:
  • 24 VAC
  • 24 VDC
• Input Configuration:
  • 1 N.C.
  • 2 N.C.
  • OSSD Light Curtain Inputs
• Safety Outputs: 3 Normally Open (N.O.)
• Auxiliary Outputs: 1 Normally Closed (N.C.)
• Reset Type: Monitored Manual Reset
• Terminal Type: Removable Screw Terminals
• Mounting Type: 35 mm DIN Rail
• Housing Width: 22.5 mm
• Rated Operational Current:
  • 5 A @ 250 VAC (AC-1 / AC-15)
  • 3 A @ 24 VDC (DC-13)
• Power Consumption: 2 W Maximum
• Operating Temperature: -5°C to +55°C
• Protection Rating:
  • IP40 (Housing)
  • IP20 (Terminals)
• Safety Ratings:
  • Category 4 (ISO 13849-1)
  • Performance Level e (PLe)
  • SIL CL 3 (IEC 62061)
• Certifications:
  • UL/cUL
  • CE
  • TÜV
  • UKCA
• Applications:
  • Emergency Stop Circuits
  • Safety Gate Monitoring
  • Light Curtain Monitoring
  • Machine Guarding
  • Industrial Automation
  • Robotics
  • Packaging Equipment
  • OEM Machinery

Dimensions:

• Height: 99 mm (3.90 in)
• Width: 22.5 mm (0.89 in)
• Depth: 114.5 mm (4.51 in).

Weight:

• Approximate Weight: 0.21 kg (0.46 lb).
