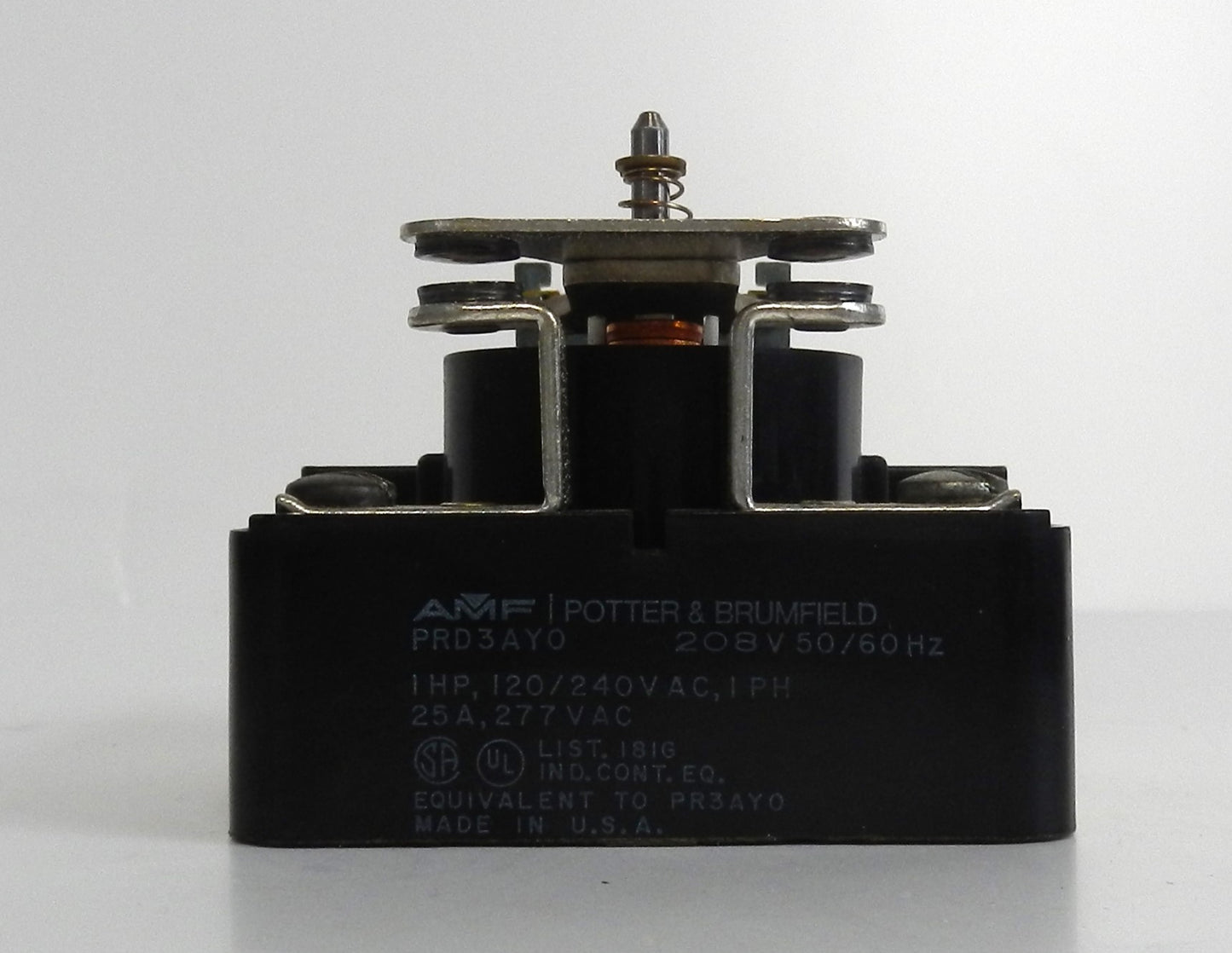

PRD3AY0-208 AMF Potter & Brumfield General Purpose Power Relay 208VAC Coil SPST-NO 25A

Description:

• Genuine AMF Potter & Brumfield (TE Connectivity) general-purpose power relay for industrial control and switching applications
• Features 1 Form X (SPST-NO Double-Make) main contact configuration for dependable high-current switching
• Equipped with a 208 VAC, 50/60 Hz AC coil
• Silver alloy (Ag) contacts rated for up to 25A resistive loads

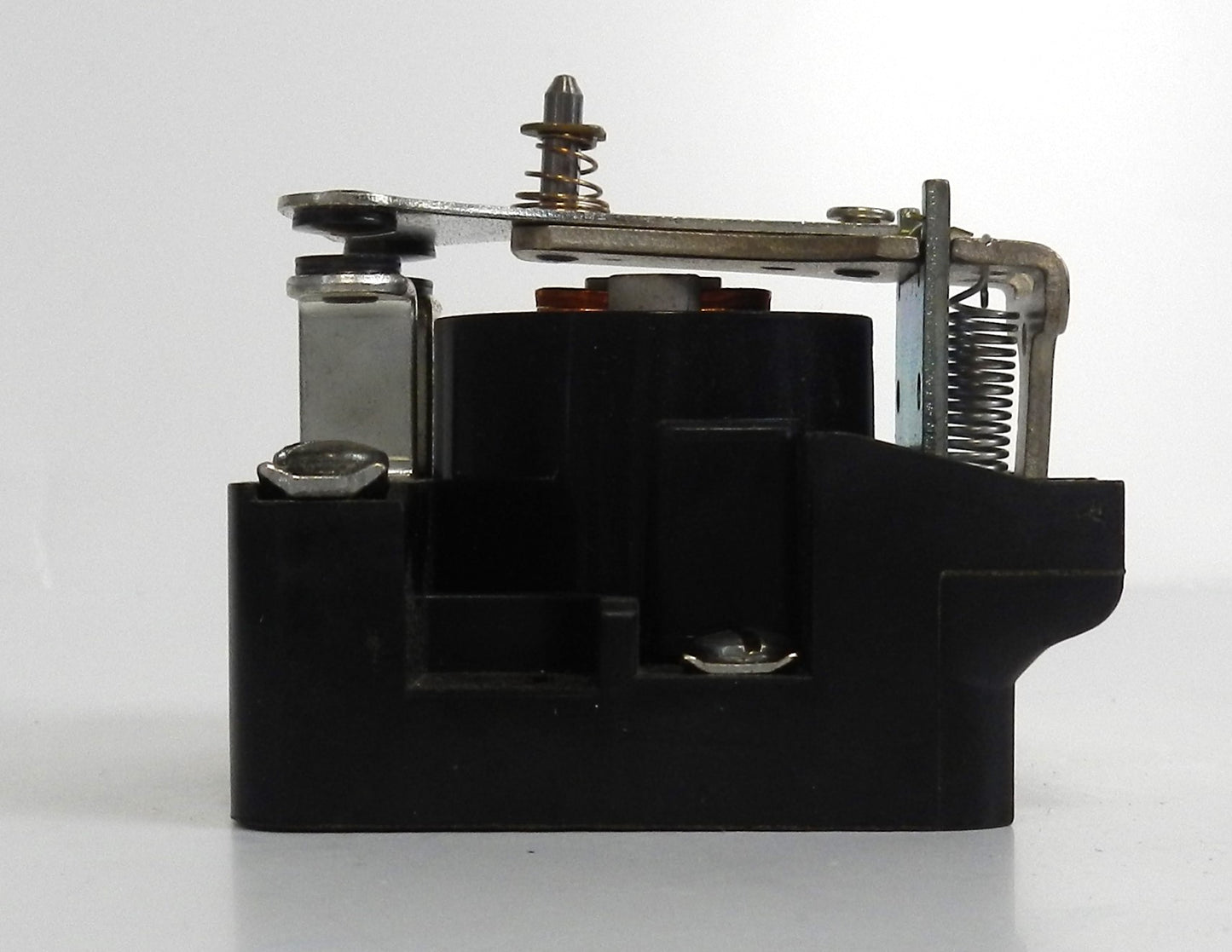

• Open-style relay design suitable for panel mounting in industrial control systems
• Screw terminal connections provide secure and reliable field wiring
• Designed for switching motors, heaters, lighting circuits, transformers, compressors, and industrial equipment
• Rugged construction ensures long service life in demanding industrial environments
• Ideal for industrial automation, OEM machinery, HVAC systems, motor control panels, and process control equipment.

Specifications:

• Manufacturer Name: AMF Potter & Brumfield (TE Connectivity)
• Part Number (MPN): PRD3AY0-208
• Product Series: PRD
• Product Type: General Purpose Power Relay
• Contact Configuration: 1 Form X (SPST-NO Double-Make)
• Coil Type: AC
• Coil Voltage: 208 VAC
• Coil Frequency: 50/60 Hz
• Contact Material: Silver (Ag)
• Contact Rating: 25 A Max
• Maximum Switching Voltage: 600 VAC
• Terminal Type: Screw Terminals
• Mounting Style: Panel Mount / Open Relay
• Dielectric Strength:
  • Contact-to-Coil: 2000 Vrms
  • Between Contacts: 2000 Vrms
• Insulation Resistance: 100 MΩ Minimum
• Operating Temperature:
  • -55°C to +45°C (AC Coil)
• Mechanical Life: 10 Million Operations
• Applications:
  • Motor Control
  • Industrial Automation
  • HVAC Systems
  • Lighting Control
  • Compressors
  • Process Control
  • OEM Equipment
  • Industrial Control Panels

Dimensions:

• Open-frame industrial relay designed for panel mounting.
• Accepts standard screw-terminal field wiring for industrial control applications.

Weight:

• Approximate Weight: 0.28 kg (0.62 lb).
