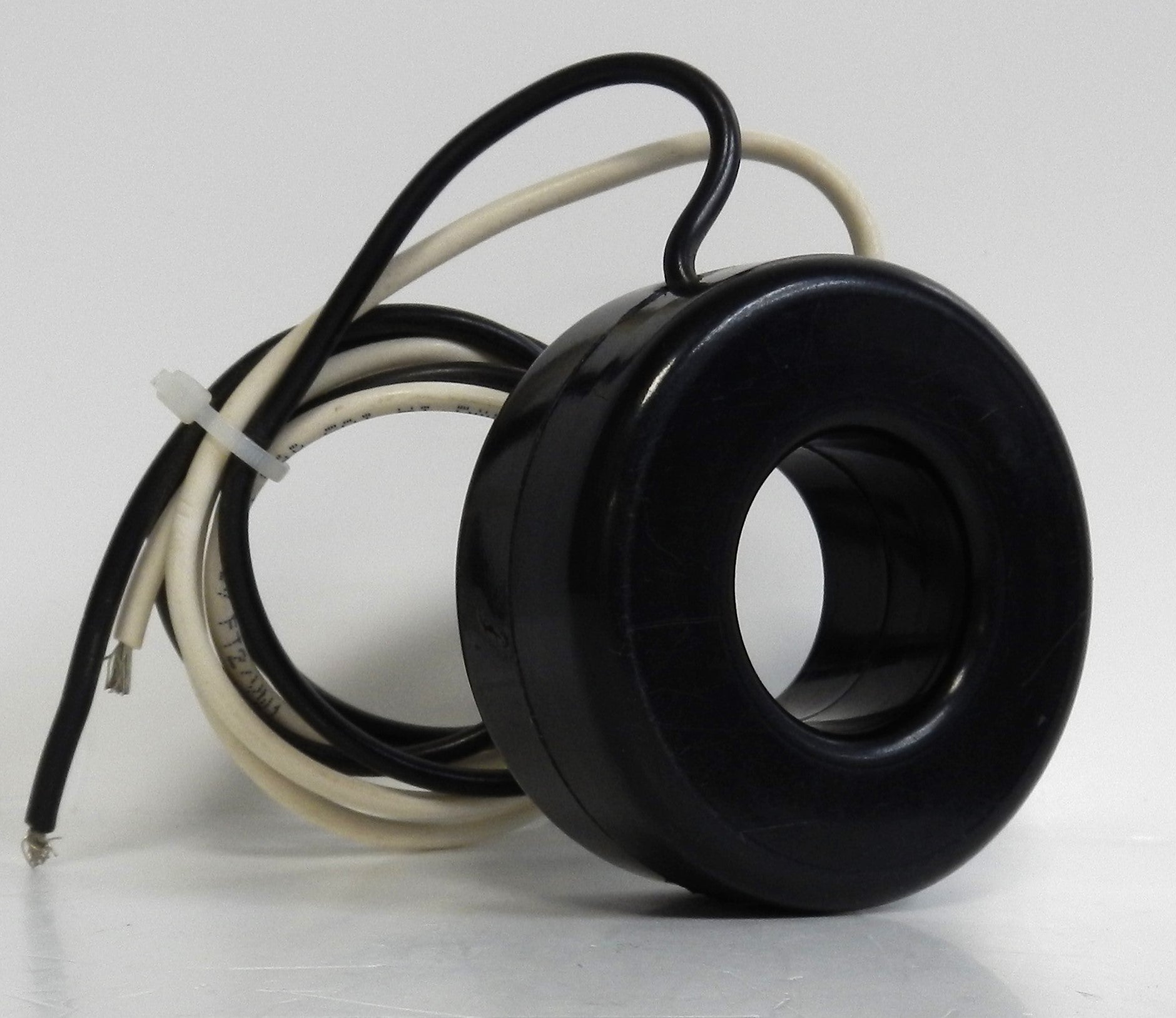

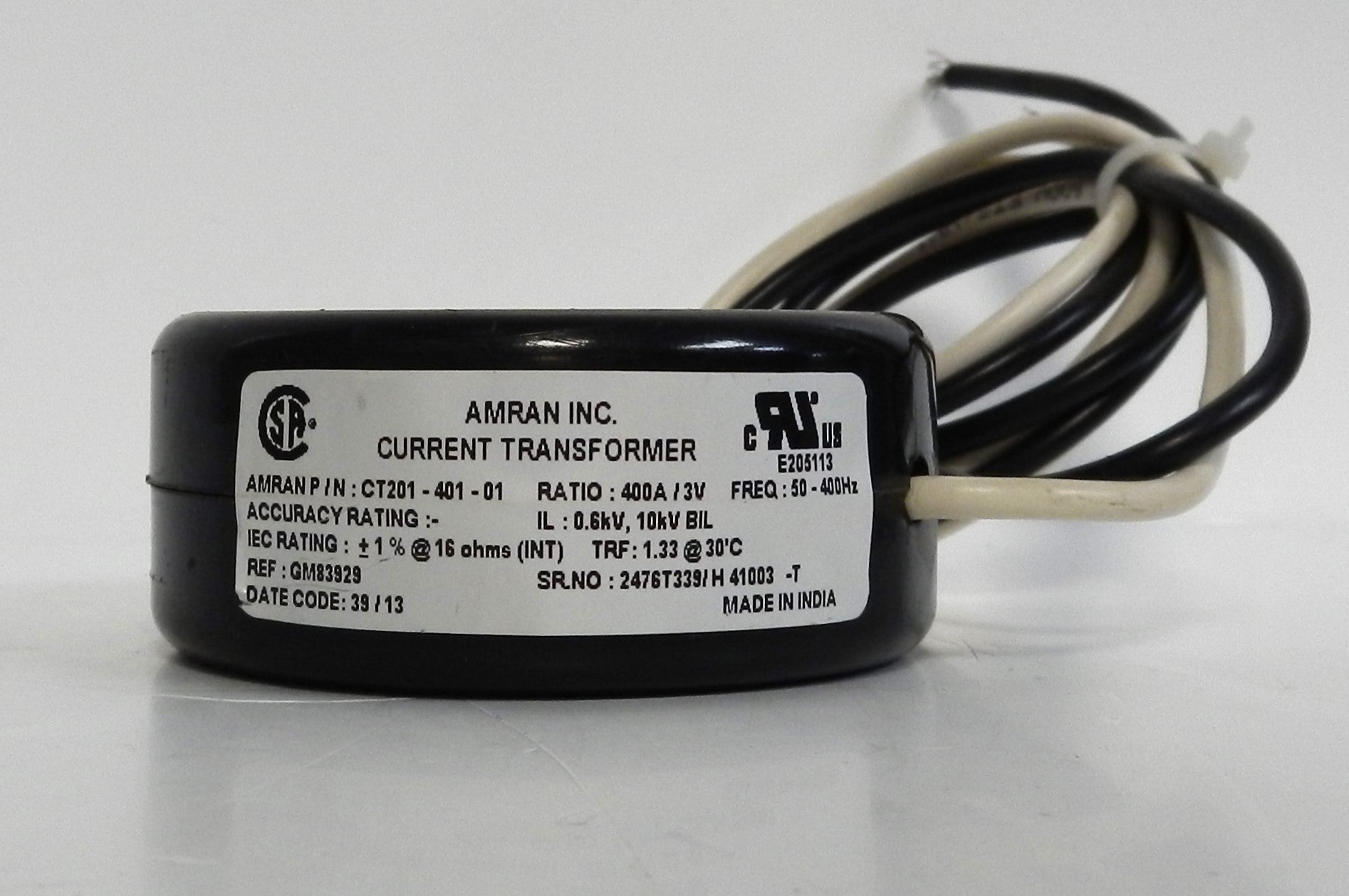

CT201-401-01 AMRAN Current Transformer 400A / 3V 50-400Hz ±1% Accuracy

Description:

• Genuine AMRAN current transformer for industrial current measurement and monitoring applications
• Rated for 400A primary current with 3V secondary output
• Designed for 50–400 Hz AC systems
• High measurement accuracy of ±1% for reliable monitoring and instrumentation
• Compact molded construction provides excellent durability in industrial environments
• Suitable for power monitoring, metering, control panels, switchgear, and energy management systems
• Plastic-encapsulated housing offers electrical insulation and mechanical protection
• Ideal for industrial automation, electrical distribution, OEM equipment, and control system integration
• Discontinued by the manufacturer, commonly used for maintenance and replacement of existing installations.

Specifications:

• Manufacturer Name: AMRAN
• Part Number (MPN): CT201-401-01
• Product Type: Current Transformer (CT)
• Primary Current: 400 A
• Secondary Output: 3 V
• Frequency Range: 50–400 Hz
• Accuracy: ±1%
• Insulation Level: 600 V
• Basic Insulation Level (BIL): 10 kV Full Wave
• Rating Factor: 1.33 @ 30°C Ambient
• Housing: Plastic Encapsulated
• Secondary Leads:
  • Flexible UL 1015
  • 16–20 AWG
  • 24 in (610 mm) Length
• Operating Application:
  • Current Monitoring
  • Power Metering
  • Energy Management
  • Industrial Control Panels
  • Electrical Distribution
  • OEM Equipment
• Lifecycle Status: Discontinued

Dimensions:

• Model Series: CT201 Window-Type Current Transformer
• Standard compact window-style design for panel and switchgear installations.

Weight:

• Approximate Weight: 0.23 kg (0.50 lb).
