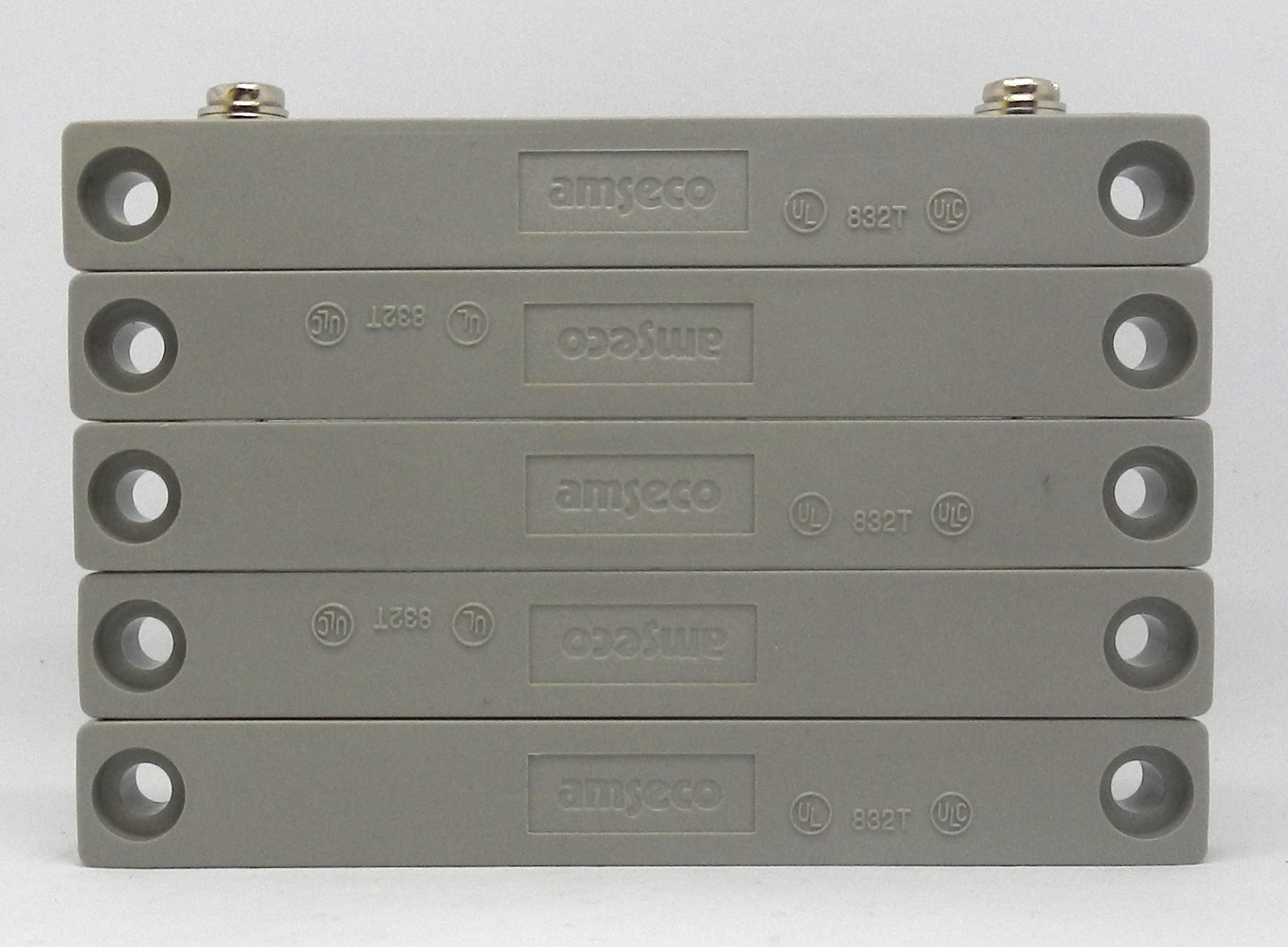

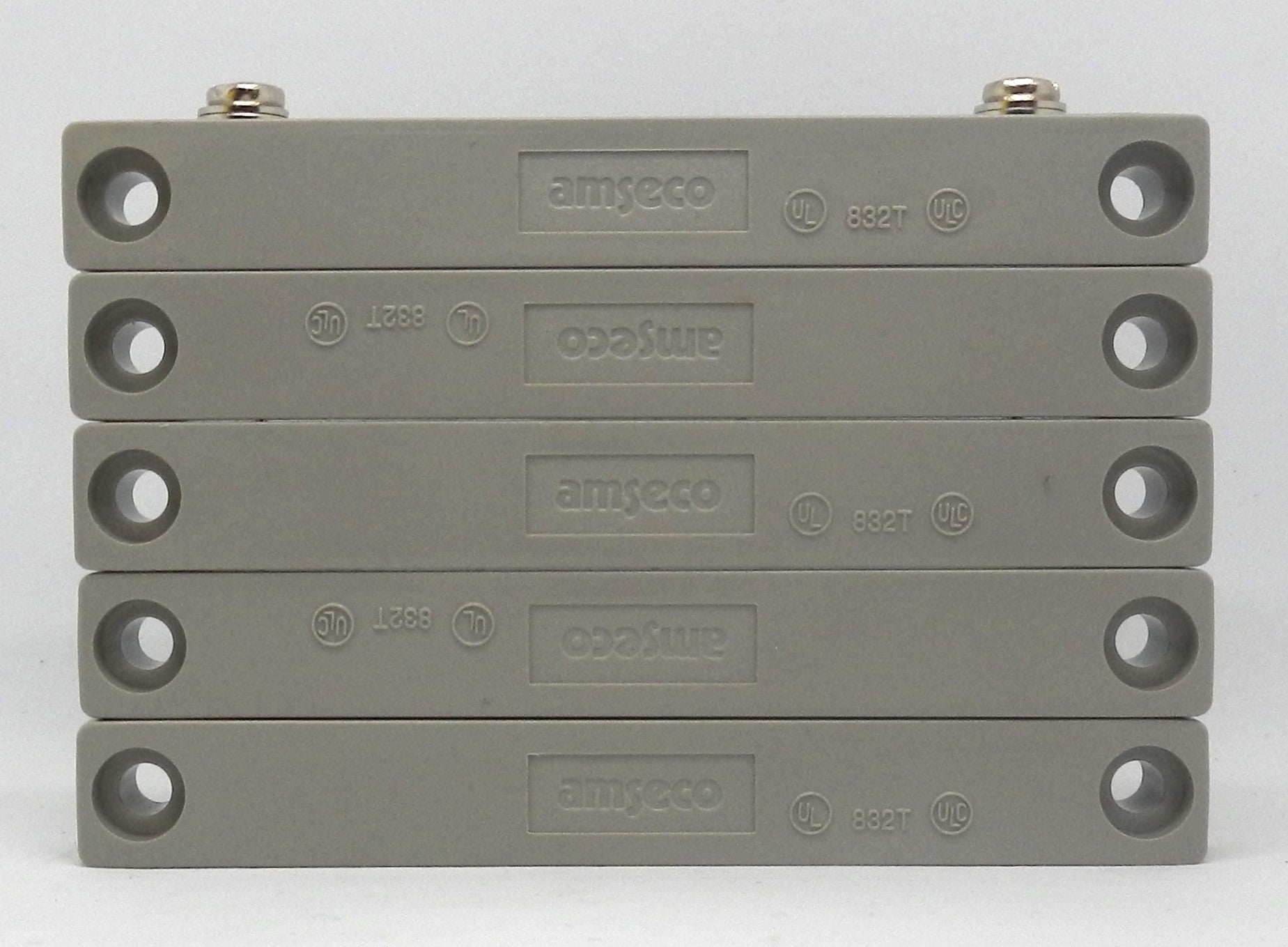

AMS-37 AMSECO Industrial Surface Mount Magnetic Contact Reed Switch N.O. Security Sensor

Description:

• Genuine AMSECO industrial magnetic contact designed for commercial and industrial security applications
• Rugged surface-mount magnetic reed switch for monitoring doors, overhead doors, roof hatches, gates, and hinged skylights
• Normally Open (Form A) reed contact with terminal connection for secure field wiring
• Features a 2-inch minimum operating gap for reliable detection on large openings
• Equipped with a durable Alnico 5 magnet for dependable long-term performance
• Heavy-duty industrial housing withstands demanding indoor and outdoor environments
• Screw-mount installation provides a secure and clean installation
• UL and ULC Listed for commercial security applications
• Ideal for alarm systems, access control, perimeter security, industrial facilities, warehouses, and commercial buildings.

Specifications:

• Manufacturer Name: AMSECO (Potter Electric Signal)
• Part Number (MPN): AMS-37
• Product Type: Industrial Magnetic Contact
• Switch Type: Magnetic Reed Switch
• Contact Configuration: Form A (Normally Open)
• Contact Connection: Terminal
• Contact Rating: 10 VA
• Maximum Carry Current: 2.0 A
• Maximum Switching Current: 0.5 A
• Breakdown Voltage: 250 VDC Minimum
• Minimum Operating Gap: 2 in (50.8 mm)
• Magnet Type: Alnico 5
• Mounting Method: Screw Mount
• Operating Temperature: 0°C to 49°C (32°F to 120°F)
• Certifications:
  • UL Listed
  • ULC Listed
• Applications:
  • Security Systems
  • Door Monitoring
  • Overhead Doors
  • Roof Hatches
  • Gates
  • Commercial Buildings
  • Industrial Facilities

Dimensions:

• Contact Length: 3.47 in (88 mm)
• Overall Length: 3.90 in (99 mm)
• Width: 0.51 in (13 mm)
• Height: 0.51 in (13 mm)

Weight:

• Approximate Weight: 0.06 kg (0.14 lb).
