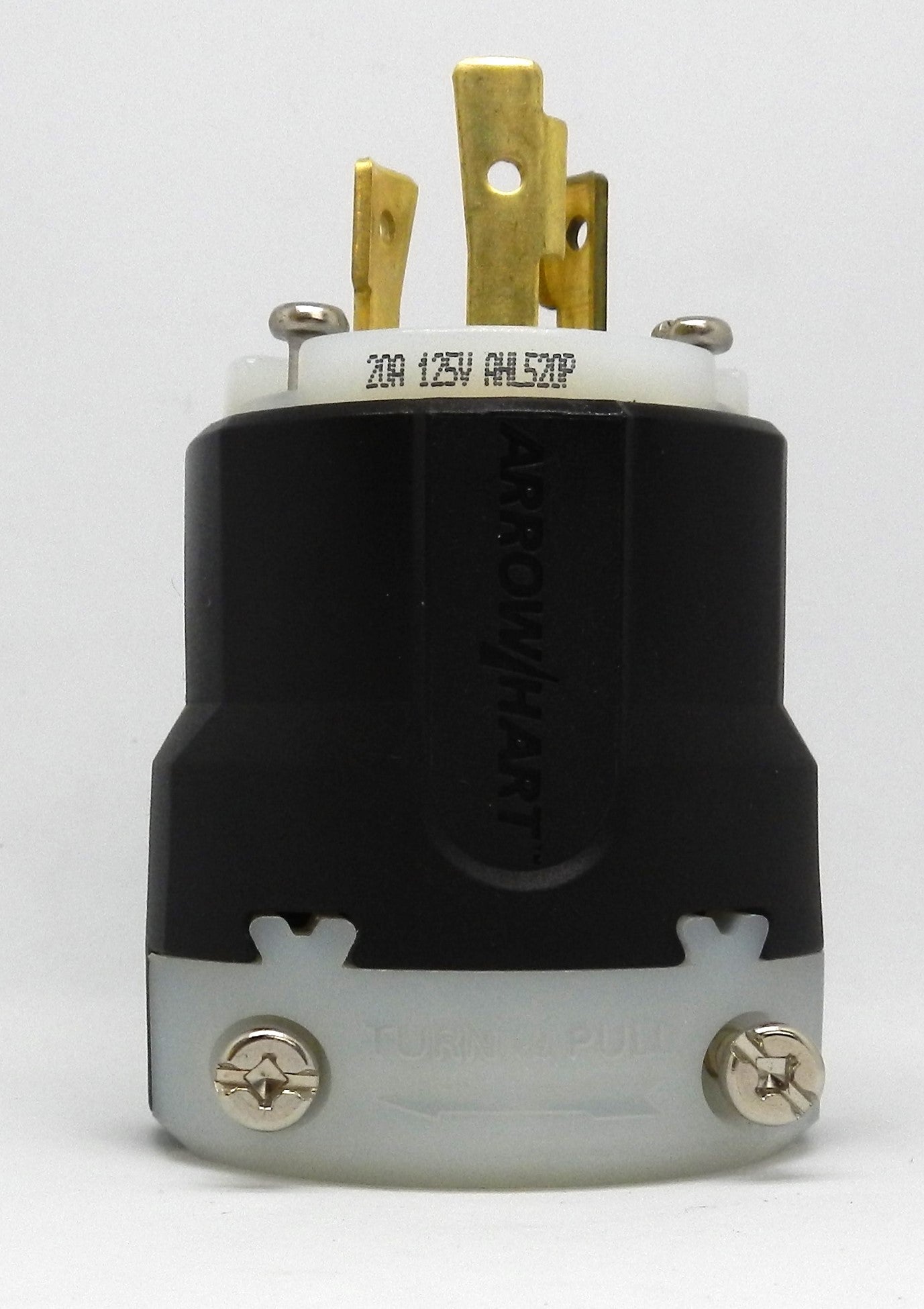

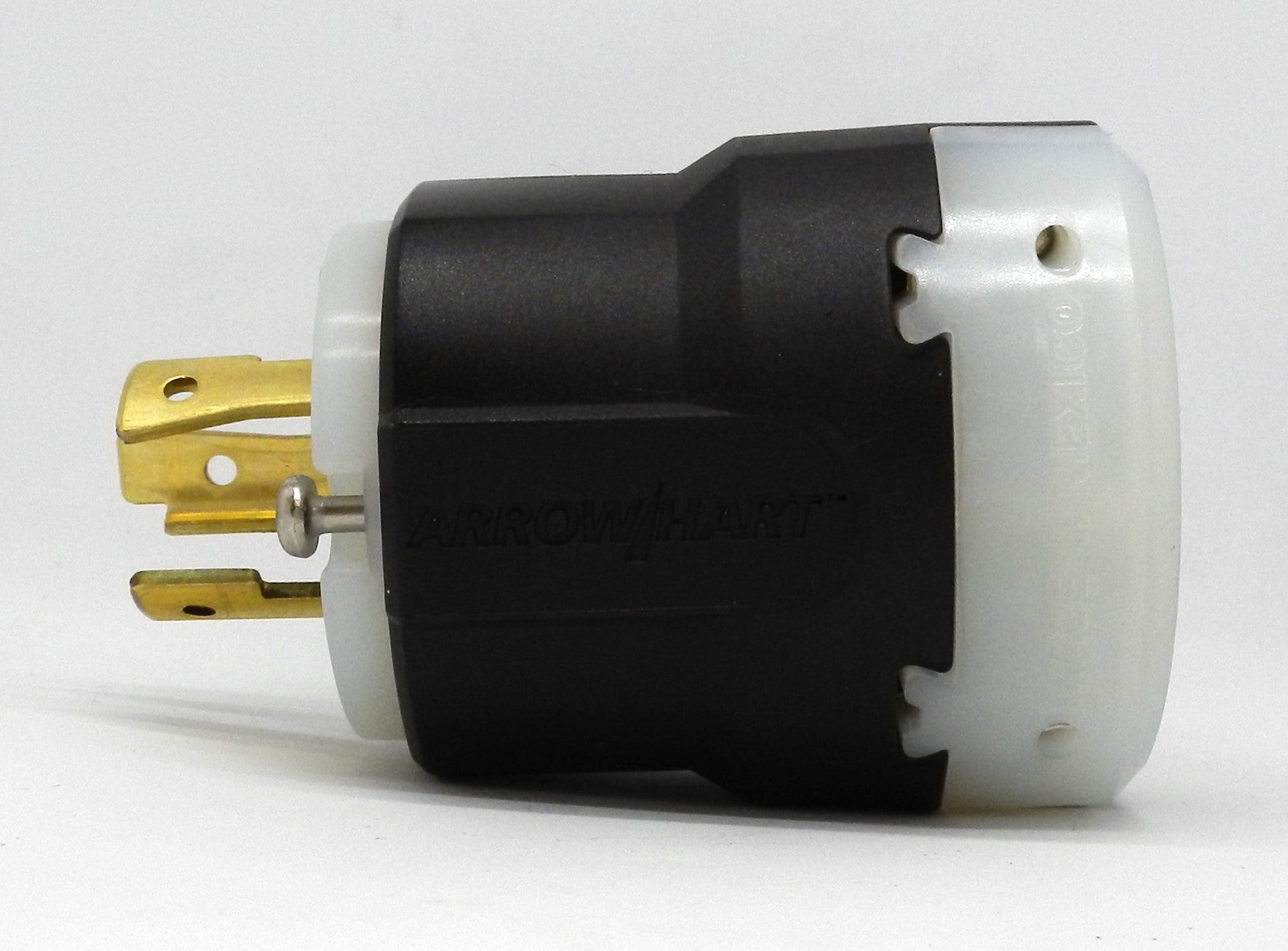

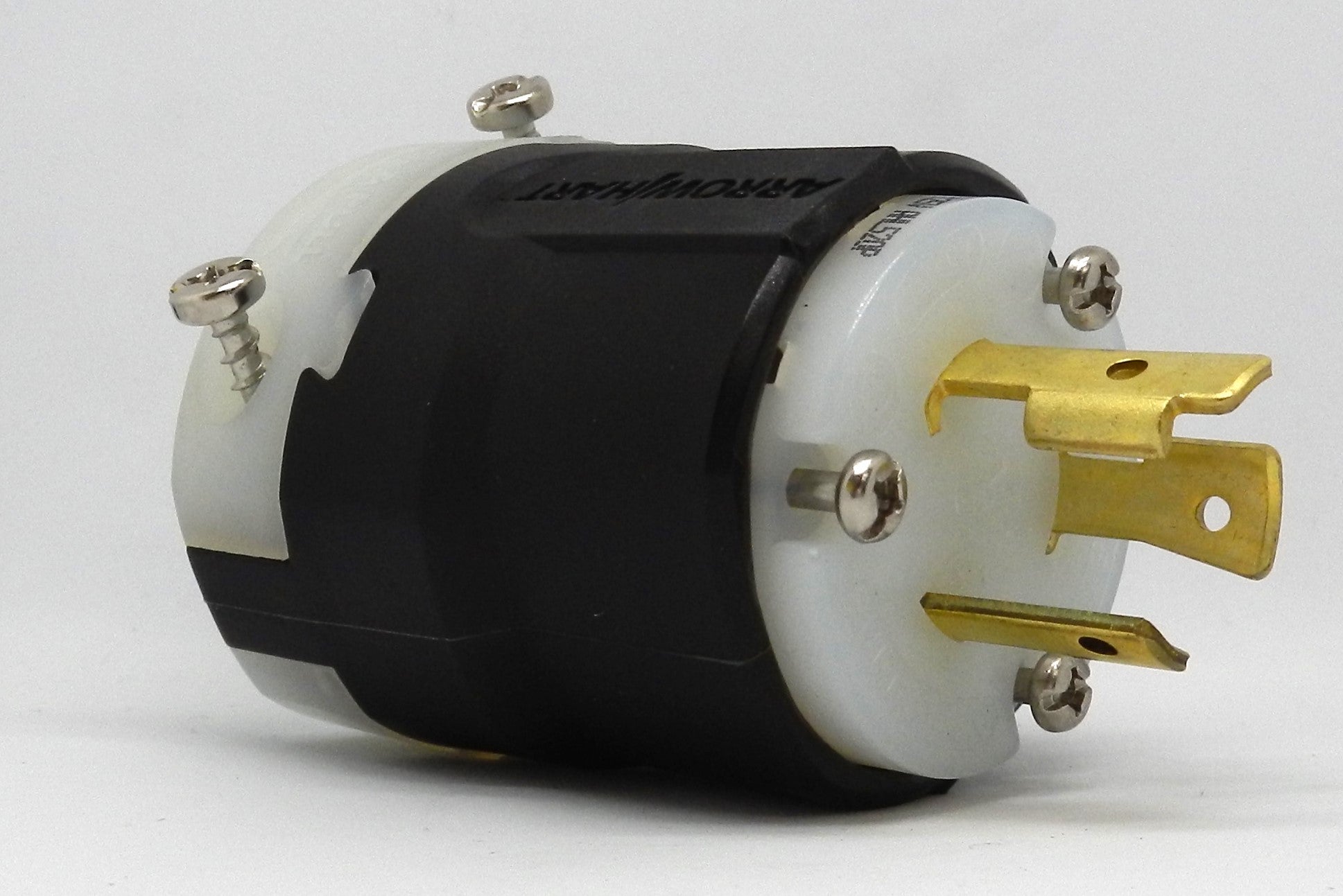

AHL520P Arrow Hart 20A 125V Twist Lock Plug NEMA L5-20P 2-Pole 3-Wire Industrial Grade

Description:

• Genuine Arrow Hart by Eaton industrial-grade twist locking plug for demanding commercial and industrial power applications
• Rated 20 Amp, 125 VAC with NEMA L5-20P locking configuration
• 2-Pole, 3-Wire Grounding design provides a secure locking connection that resists accidental disconnection
• Ultra-Grip ergonomic body offers improved handling and installation
• Rugged nylon housing resists impact, wear, and harsh industrial environments
• Back-wire terminal clamps simplify wiring while providing secure conductor termination
• Double dovetail cord clamp accommodates a wide range of cord diameters for superior strain relief
• EPDM gasket helps seal the cord entry against dust and debris
• Ideal for generators, industrial equipment, construction sites, temporary power, manufacturing facilities, and commercial electrical systems
• UL Listed and CSA Certified for reliable industrial performance.

Specifications:

• Manufacturer Name: Arrow Hart by Eaton
• Part Number (MPN): AHL520P
• Product Type: Twist Lock Plug
• Series: Arrow Hart Industrial Grade
• Configuration: NEMA L5-20P
• Amperage Rating: 20 A
• Voltage Rating: 125 VAC
• Number of Poles: 2
• Number of Wires: 3
• Grounding: Yes
• Connection Type: Twist Lock
• Wiring Method: Back Wire
• Terminal Type: Screw Clamp
• Cord Diameter:
  • 0.38–1.00 in (9.5–25.4 mm)
• Acceptable Wire Size:
  • #14–8 AWG
• Housing Material: Nylon
• Contact Material: Brass
• Operating Temperature:
  • -40°C to +60°C (-40°F to +140°F)
• Color: Black / White
• Certifications:
  • UL Listed
  • CSA Certified
  • RoHS Compliant
• Applications:
  • Industrial Power Distribution
  • Generators
  • Manufacturing Equipment
  • Construction Sites
  • Temporary Power
  • Commercial Electrical Systems
  • Industrial Automation

Dimensions:

• Height: 2.69 in (68.3 mm)
• Width: 2.10 in (53.3 mm)
• Depth: 2.23 in (56.6 mm).

Weight:

• Approximate Weight: 0.18 kg (0.40 lb).
