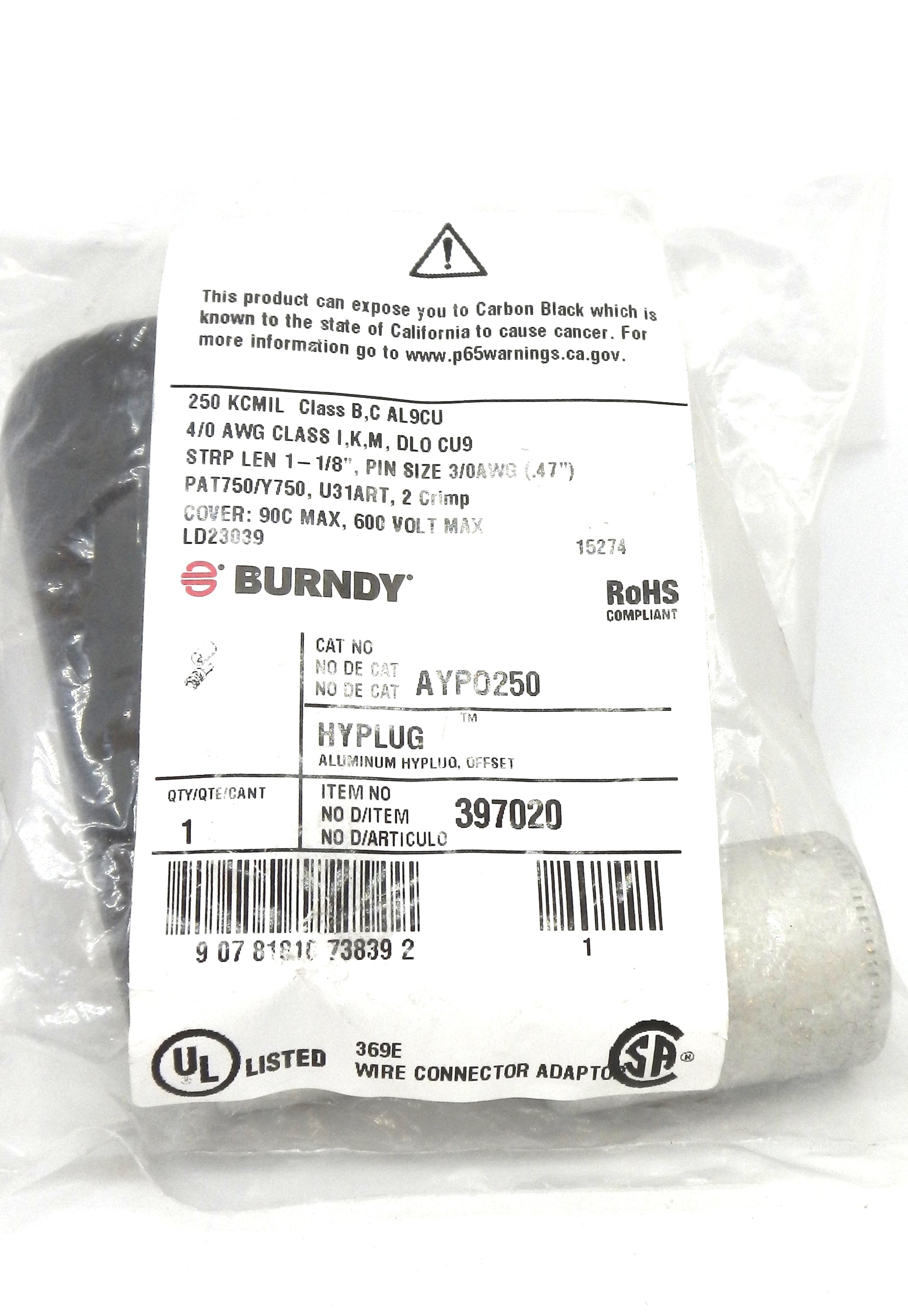

AYPO250 Burndy HYPLUG 250 kcmil Aluminum Compression Pin Adapter Offset Terminal AL9CU

Description:

• Genuine Burndy HYPLUG compression pin adapter designed for large conductor termination applications
• 250 kcmil conductor size with an offset solid pin configuration
• Designed for terminating large aluminum or copper conductors into equipment with smaller mechanical terminal openings
• Features a 0.47 in solid pin diameter and 1.22 in pin length
• AL9CU rated for use with both aluminum and copper conductors
• All-aluminum construction with electro-tin plating helps resist corrosion and reduce potential bimetallic corrosion
• Factory pre-filled with PENETROX oxide-inhibiting compound for reliable aluminum conductor connections

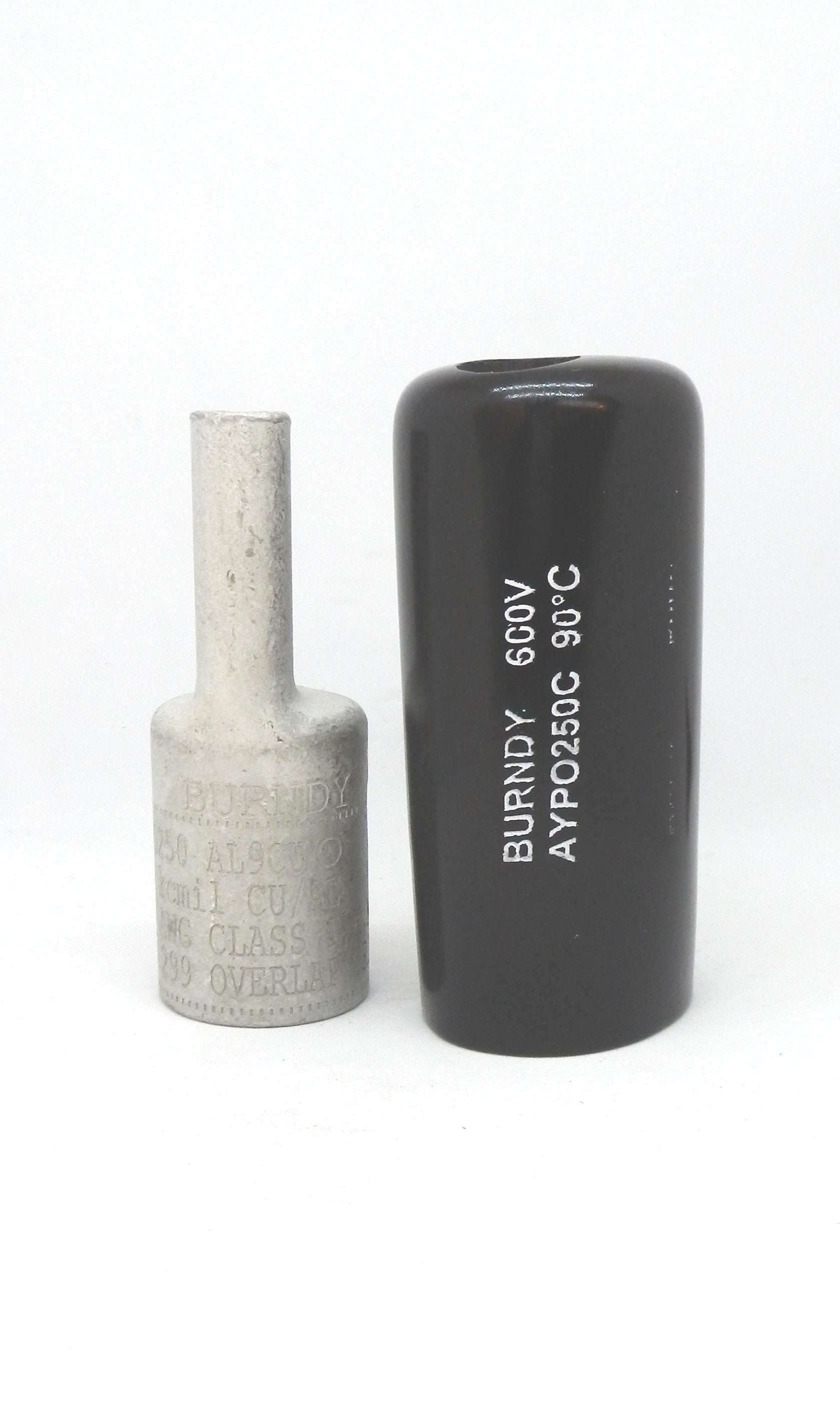

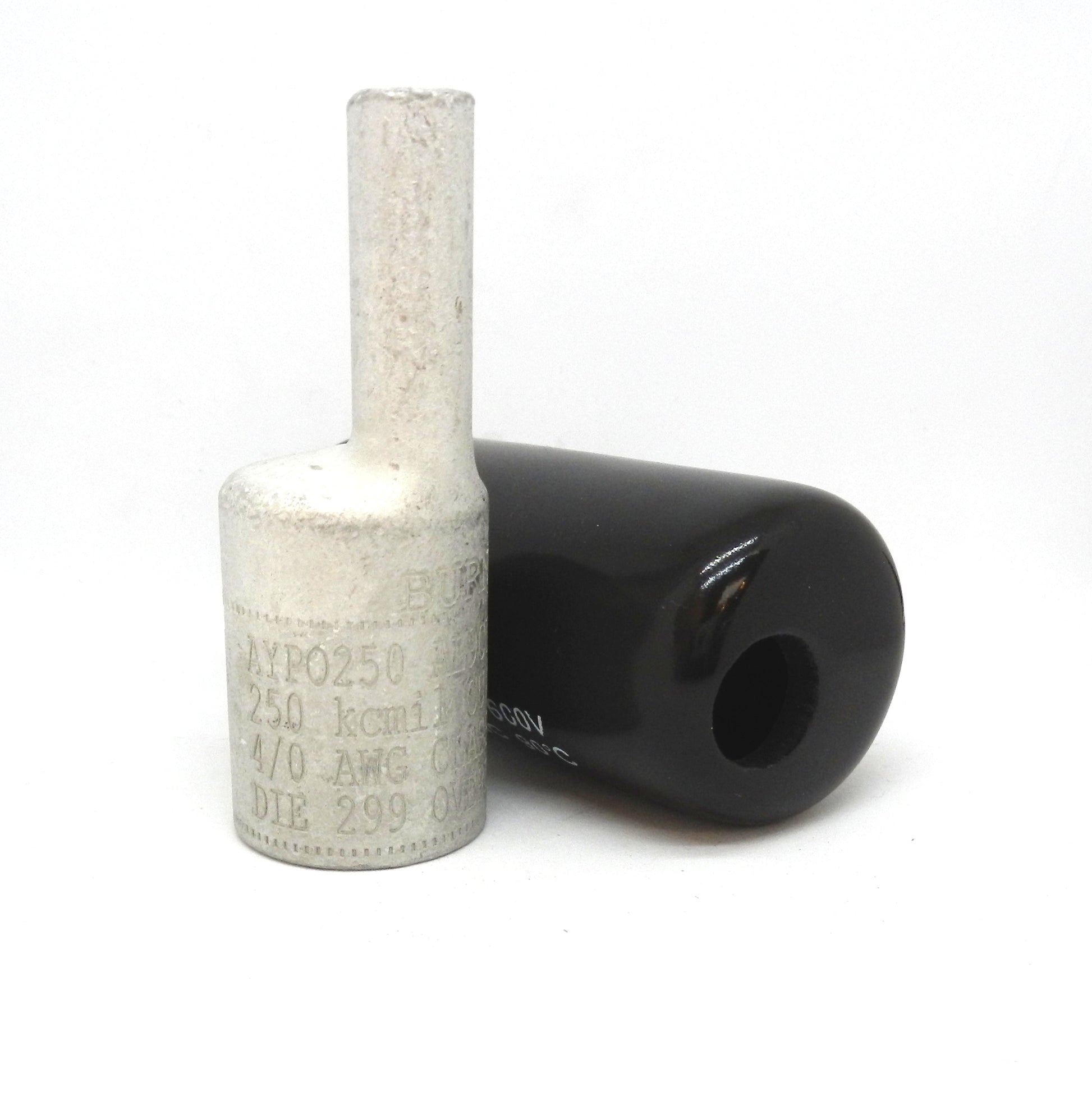

• Supplied with an EPDM rubber insulating cover
• Offset design provides additional installation flexibility where equipment or conductor spacing is limited
• Requires 2 compression crimps for proper installation
• Ideal for switchgear, electrical distribution equipment, industrial panels, transformers, disconnects, and large conductor termination applications.

Specifications:

• Manufacturer: Burndy
• Parent Brand: Hubbell
• Part Number (MPN): AYPO250
• Product Family: HYPLUG
• Product Type: Compression Pin Adapter / Termination Plug
• Connector Type: Offset Pin
• Conductor Size: 250 kcmil
• Conductor Material: Aluminum / Copper
• Pin Type: Solid
• Pin Diameter: 0.47 in
• Pin Length: 1.22 in
• Equivalent Pin Size: 3/0 AWG
• Material: Aluminum
• Finish: Electro-Tin Plated
• Insulation: EPDM Rubber Cover
• Rating: AL9CU
• Color Code: Brown
• Die Index: 299
• Number of Crimps Required: 2
• UL Listed: Yes
• CSA Approved: Yes
• Application: Wire Termination

Dimensions:

• Overall Length: 2.98 in (76 mm)
• Barrel Outside Diameter: 1.10 in
• Barrel Length: 1.07 in
• Pin Diameter: 0.47 in
• Pin Length: 1.22 in
• Strip Length: 1-1/8 in

Weight:

• Approximate Weight: 0.26 lb (0.12 kg)
