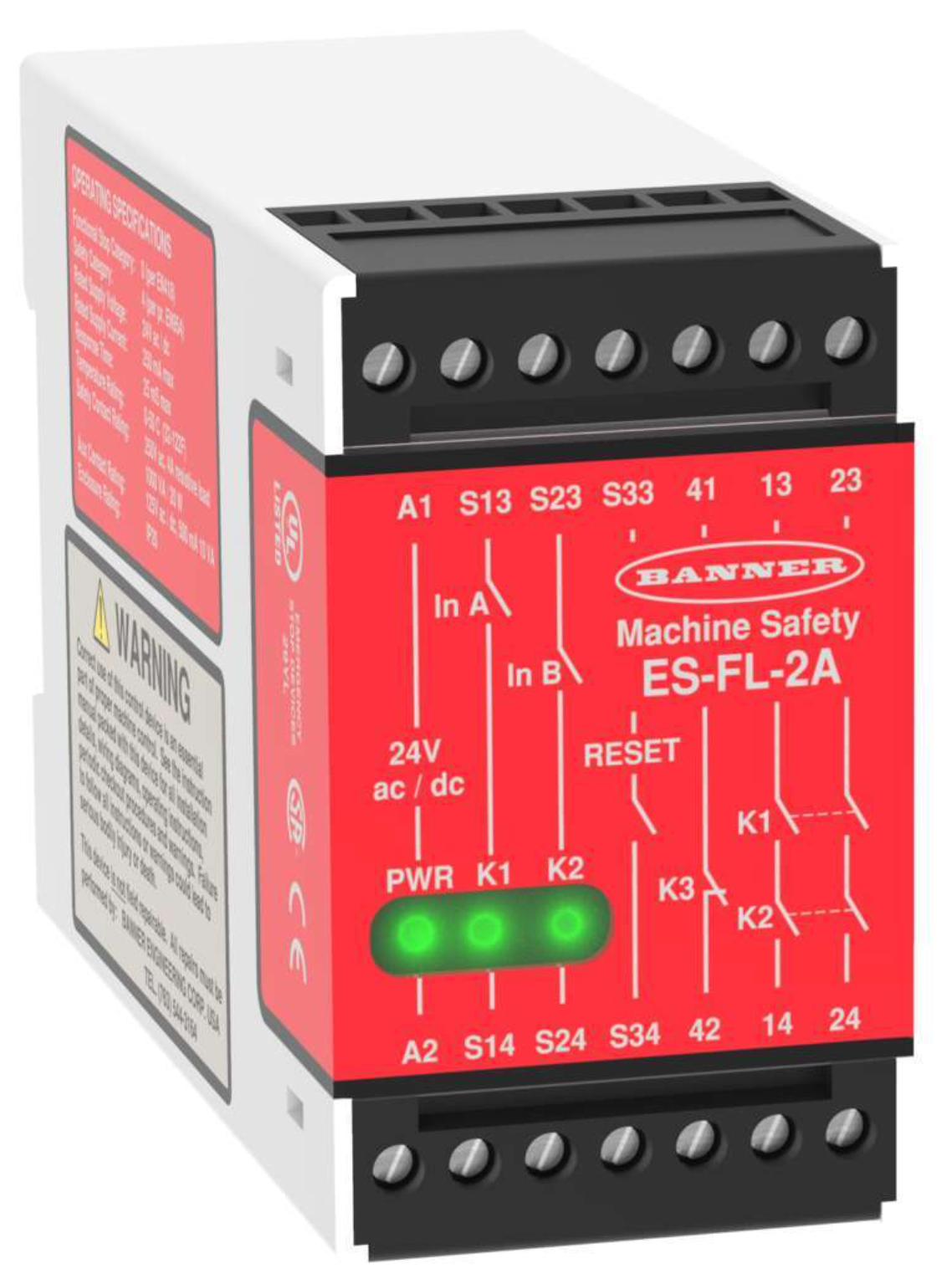

ES-FL-2A Banner Safety Relay 24V AC/DC Dual Channel 3 NO Outputs

Description:

• Industrial safety relay designed for emergency stop, rope pull, and guard interlock monitoring
• Operates on 24V AC/DC universal supply voltage
• Dual-channel safety input for monitoring redundant safety devices
• Three normally open (3 NO) safety outputs rated at 4A
• One normally closed (1 NC) auxiliary monitoring output rated at 0.5A
• Self-checking circuitry continuously monitors internal relay operation for enhanced machine safety
• Reset input supports manual reset after safety events
• DIN rail or panel mounting with fixed terminal block
• Ideal for machine safety, conveyors, packaging equipment, robotic cells, and industrial automation systems
• Discontinued by Banner Engineering; suitable as a replacement or spare part for existing systems.

Specifications:

• Manufacturer Name: Banner Engineering
• Part Number (MPN): ES-FL-2A
• Product Series: ES Series
• Product Type: Safety Relay
• Supply Voltage: 24V AC/DC
• Safety Input: 1 Dual Channel
• Safety Outputs: 3 Normally Open (3 NO), 4A
• Auxiliary Output: 1 Normally Closed (1 NC), 0.5A
• Reset Function: Manual Reset Input
• Terminal Type: Fixed Terminal Block
• Housing Width: 45 mm
• Protection Rating: IP20
• Safety Features: Self-Checking Circuitry
• Application: Emergency Stop, Rope Pull, Guard Door Interlock, Machine Safety Monitoring
• Status: Discontinued by Manufacturer

Dimensions:

• Housing Width: 45 mm
• Compact DIN rail/panel mounting design

Weight:

• Industrial safety relay construction
• Shipping weight available upon request
