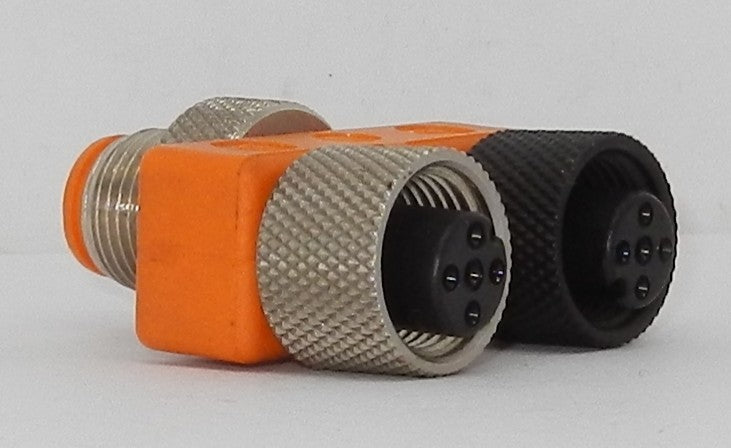

ASBS-2M12-5S Belden Lumberg Automation M12 Y-Splitter 5-Pin Sensor/Actuator Connector IP67

Description:

• Belden Lumberg Automation M12 Y-splitter designed for industrial sensor and actuator networking
• Features one 5-pin M12 male connector to two 5-pin M12 female connectors in a compact Y-adapter configuration
• A-coded M12 connectors provide reliable signal and power distribution for industrial automation systems
• Rated for 50 VAC / 60 VDC with a maximum current of 4 A
• IP67 protection when properly mated for dependable performance in harsh industrial environments
• Gold-plated contacts ensure excellent conductivity and corrosion resistance
• Rugged TPU housing resists oil, vibration, moisture, and mechanical stress
• Screw-locking coupling provides secure, vibration-resistant connections
• Ideal for PLC I/O systems, proximity sensors, photoelectric sensors, machine automation, robotics, conveyors, and packaging equipment
• Manufactured by Belden Lumberg Automation for long-lasting industrial connectivity.

Specifications:

• Manufacturer Name: Belden Lumberg Automation
• Part Number (MPN): ASBS-2M12-5S
• Product Type: M12 Y-Splitter / Sensor-Actuator Connector
• Connector Configuration: 1 × M12 Male to 2 × M12 Female
• Connector Coding: A-Coded
• Number of Pins: 5
• Connection Type: Screw-Locking
• Rated Voltage: 50 VAC / 60 VDC
• UL Rated Voltage: 30 VAC/DC
• Rated Current: 4 A
• Contact Material: CuZn (Copper Alloy)
• Contact Plating: Gold over Nickel
• Housing Material: TPU
• Protection Rating: IP67
• Operating Temperature: -25°C to +90°C
• Mounting Style: Inline Cable Mount
• Application: Sensors, Actuators, PLC Systems, Factory Automation, Machine Building, Industrial Networking.

Dimensions:

• Compact inline Y-splitter design
• M12 screw-locking connectors
• Molded industrial housing for field installation.

Weight:

• Approximate Weight: 30 g (0.07 lb).
