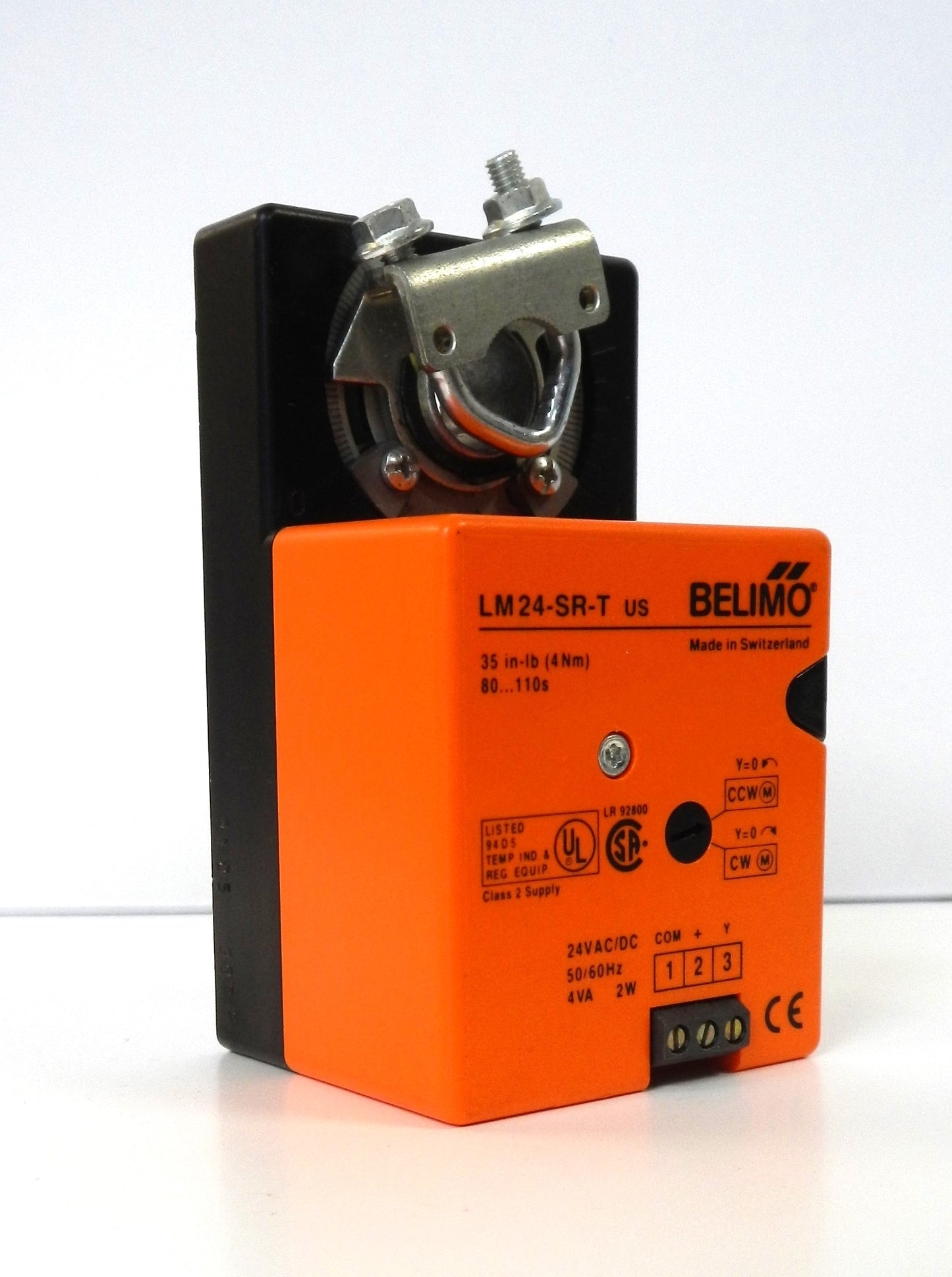

Belimo LM24-SR-T 24VAC/DC Modulating Damper Actuator 5Nm 2-10V Non-Spring Return

Description:

• Genuine Belimo modulating damper actuator for commercial HVAC and building automation applications
• Provides 5 Nm (45 in-lb) torque for controlling air dampers up to approximately 0.8 m² (8.6 ft²), depending on damper design
• Operates on 24 VAC/DC power with 2...10 VDC modulating control input
• 2...10 VDC position feedback output for building automation system (BAS) monitoring
• Non-spring return design holds the last commanded position during power loss
• Direct shaft mounting with adjustable rotation up to 95°
• Manual override push button simplifies commissioning and maintenance
• Selectable clockwise/counterclockwise rotation via onboard direction switch
• Maintenance-free brushless motor with constant running time independent of load
• Ideal for HVAC systems, ventilation dampers, air handling units (AHUs), VAV systems, and commercial building automation

Specifications:

• Manufacturer Name: Belimo
• Part Number (MPN): LM24-SR-T
• Product Type: Modulating Damper Actuator
• Actuator Type: Non-Spring Return
• Torque: 5 Nm (45 in-lb)
• Supply Voltage: 24 VAC/DC
• Voltage Range:
  • AC 19.2–28.8 V
  • DC 21.6–28.8 V
• Control Signal: 2...10 VDC
• Position Feedback: 2...10 VDC
• Input Impedance: 100 kΩ
• Power Consumption:
  • Operating: 1.5 W
  • Holding: 0.4 W
• Transformer Sizing: 3 VA
• Rotation Angle: 95° Maximum
• Running Time: 95 seconds / 90°
• Manual Override: External Push Button
• Direction of Rotation: Selectable
• Electrical Connection: Screw Terminals (26–14 AWG)
• Protection Rating:
  • NEMA 1
  • UL Type 1
• Operating Temperature: -30°C to +50°C (-22°F to +122°F)
• Storage Temperature: -40°C to +80°C (-40°F to +176°F)
• Humidity: 95% RH Non-Condensing
• Certifications:
  • cULus
  • CE
  • UL 2043
  • ISO 9001 Manufacturing
• Applications:
  • HVAC Systems
  • Air Handling Units (AHU)
  • VAV Systems
  • Ventilation Dampers
  • Commercial Buildings
  • Building Automation Systems (BAS)

Dimensions:

• Height: 116 mm (4.57 in)
• Width: 66 mm (2.60 in)
• Depth: 59 mm (2.32 in)

Weight:

• Approximate Weight: 0.35 kg (0.77 lb).
