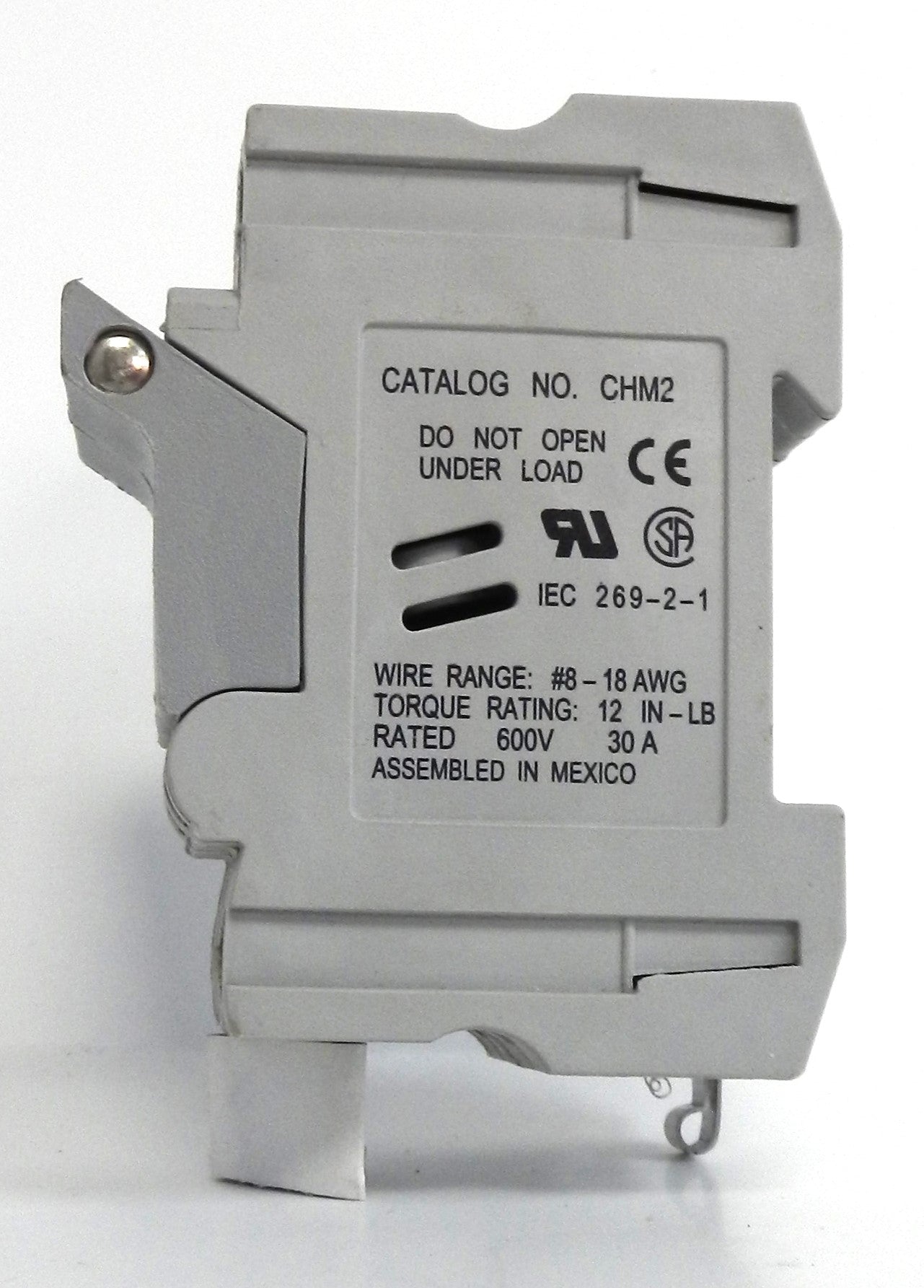

CHM2 Bussmann Eaton 2-Pole Modular Fuse Holder 30A 600VAC DIN Rail 10×38mm

Description:

• Genuine Eaton Bussmann Series modular fuse holder for industrial control panels and electrical distribution systems
• Designed for 10 × 38 mm Class CC, midget, supplemental, and IEC cylindrical fuses
• 2-pole configuration for protecting two circuits or a two-wire circuit
• Rated 30A @ 600 VAC (UL) and 32A @ 690 VAC (IEC)
• Finger-safe IP20 design enhances installer safety during operation and maintenance
• Compact 35 mm DIN rail mounting for fast installation in industrial enclosures
• Heavy-duty thermoplastic housing provides excellent durability and long service life
• Accepts a wide range of Bussmann series 10 × 38 mm fuses for industrial protection applications
• Ideal for industrial automation, OEM equipment, motor control panels, HVAC systems, machinery, and electrical distribution panels
• Part of the Eaton Bussmann CHM Series modular fuse holder family.

Specifications:

• Manufacturer Name: Eaton Bussmann Series
• Part Number (MPN): CHM2
• Product Series: CHM
• Product Type: Modular Fuse Holder
• Number of Poles: 2
• Fuse Size: 10 × 38 mm
• Rated Current:
  • 30 A (UL)
  • 32 A (IEC)
• Rated Voltage:
  • 600 VAC (UL)
  • 690 VAC (IEC)
• Mounting Type: 35 mm DIN Rail
• Protection Rating: IP20
• Operating Temperature:
  • -20°C to +120°C
• Wire Range: 18–8 AWG
• Housing Material: High-strength thermoplastic
• Certifications:
  • UL Recognized
  • CSA
  • IEC 60269-2
  • CCC
  • RoHS Compliant
• Applications:
  • Industrial Control Panels
  • PLC Panels
  • Motor Control Centers
  • OEM Equipment
  • Electrical Distribution
  • Industrial Automation
  • Machine Protection

Dimensions:

• Standard modular DIN rail fuse holder for 10 × 38 mm cylindrical fuses
• Compact two-module width for space-saving panel installation.

Weight:

• Approximate Weight: 0.11 kg (0.24 lb).
