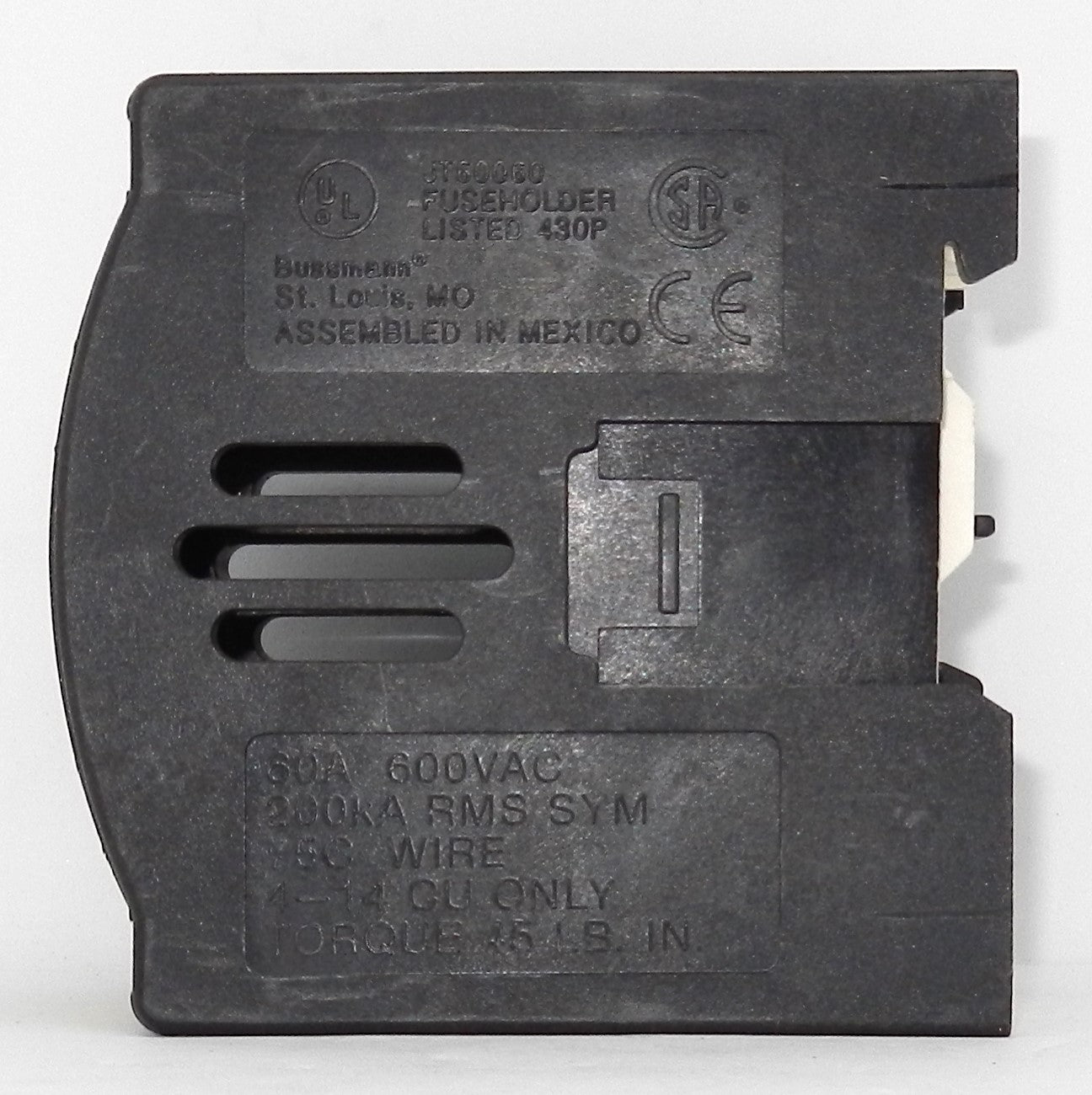

JT60060 Bussmann Class J Fuse Block 60A 600V 1-Pole Finger-Safe DIN Rail/Chassis Mount

Description:

• Genuine Eaton Bussmann Series JT Class J fuse block for industrial power distribution and circuit protection
• Designed for Class J cartridge fuses in industrial and commercial electrical systems
• Rated 60 Amps at 600 VAC/DC
• Finger-safe (IP20) design enhances personnel safety during installation and maintenance
• Accepts 1 Class J fuse with a 1-pole configuration
• Suitable for DIN rail or chassis mounting for flexible installation
• Features box lug screw terminals accepting 14–4 AWG copper conductors
• Rugged thermoplastic construction provides excellent mechanical strength and electrical insulation
• Ideal for motor control centers, industrial control panels, HVAC equipment, OEM machinery, VFDs, and power distribution systems
• Manufactured by Eaton Bussmann for dependable industrial circuit protection.

Specifications:

• Manufacturer Name: Eaton Bussmann
• Part Number (MPN): JT60060
• Product Series: Safety J
• Product Type: Class J Fuse Block
• Fuse Class: Class J
• Number of Poles: 1
• Rated Current: 60 A
• Rated Voltage:
  • 600 VAC
  • 600 VDC
• Fuse Size:
  • 27 mm × 60.3 mm (1.063 × 2.374 in)
• Mounting Type:
  • DIN Rail
  • Chassis Mount
• Terminal Type: Box Lug Screw Terminal
• Wire Size: 14–4 AWG Copper
• Contact Material: Tin-Plated Copper Alloy
• Housing Material: Thermoplastic
• Protection Rating: IP20 Finger-Safe
• Certifications:
  • UL Recognized
  • CSA Certified
  • CE
  • RoHS Compliant
• Applications:
  • Industrial Control Panels
  • Motor Control Centers
  • Variable Frequency Drives (VFDs)
  • OEM Equipment
  • HVAC Systems
  • Power Distribution
  • Machinery Protection

Dimensions:

• Height: 3.10 in (78.7 mm)
• Width: 1.52 in (38.6 mm)
• Depth: 3.06 in (77.7 mm)

Weight:

• Approximate Weight: 0.44 lb (0.20 kg).
