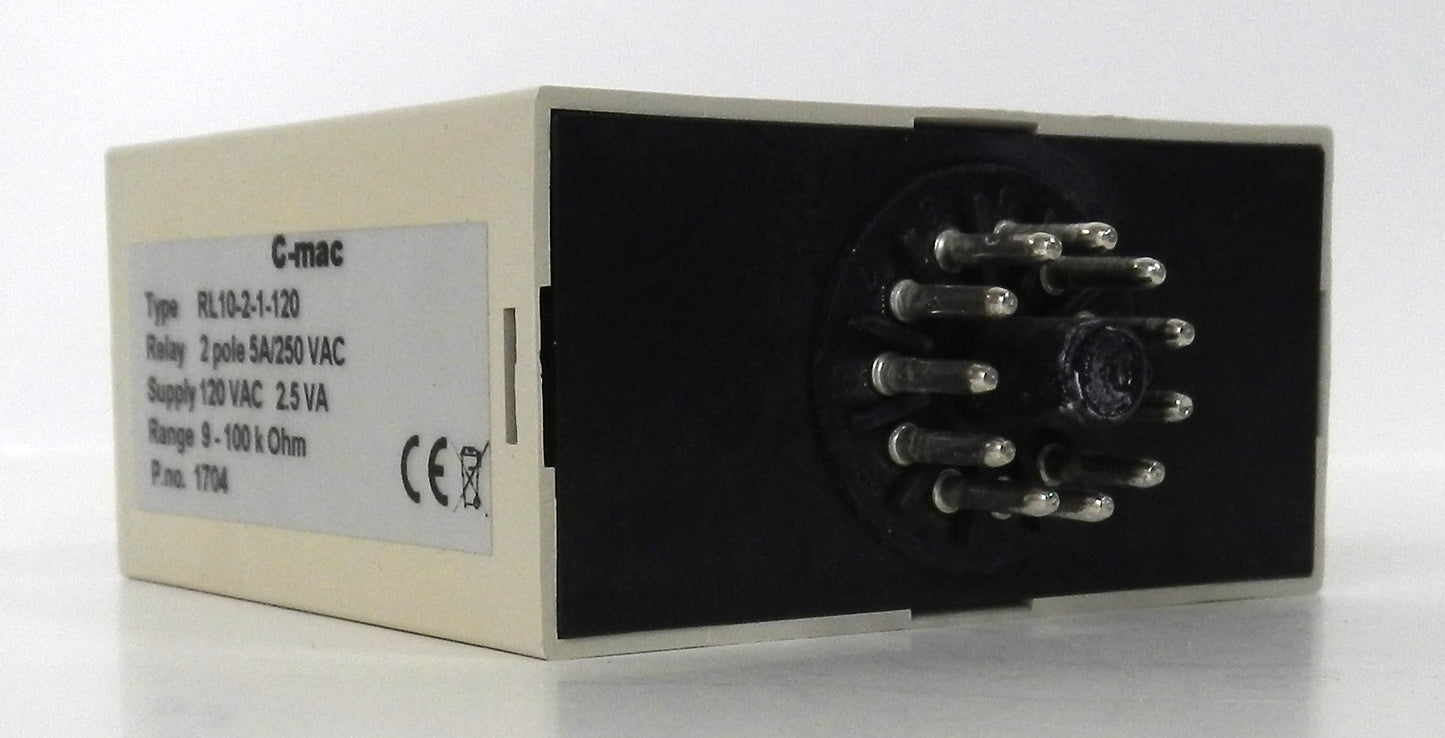

RL10-2-1-120 C-MAC Level Control Relay 120VAC 11-Pin Liquid Level Monitoring Relay

Description:

• Genuine C-MAC level control relay designed for reliable liquid level monitoring and pump control applications
• Model RL10-2-1-120 with 120 VAC operating voltage
• Universal level control relay configurable for tank filling or tank emptying functions via onboard DIP switches
• Uses conductive level electrodes for accurate liquid level detection
• Standard 11-pin round plug-in design for easy installation and replacement
• Adjustable sensitivity allows operation with a wide range of conductive liquids
• LED indicators provide clear power and relay status
• Suitable for pump control, water treatment systems, tanks, reservoirs, sumps, industrial process control, and wastewater applications
• Reliable industrial design for OEM equipment, automation systems, and building services.

Specifications:

• Manufacturer Name: C-MAC
• Part Number (MPN): RL10-2-1-120
• Product Type: Level Control Relay
• Supply Voltage: 120 VAC
• Supply Frequency: 40–70 Hz
• Socket Type: 11-Pin Round Plug-In
• Function:
  • Tank Filling
  • Tank Emptying
• Sensitivity: Adjustable via potentiometer
• Sensor Type: Conductive Level Electrodes
• Sensor Signal: 8 VAC / 70 Hz, Max. 1 mA
• Maximum Sensor Cable Length: 100 m (328 ft)
• Relay Output:
  • 1 SPDT Output
  • 8 A @ 250 VAC (Resistive Load)
• Indicators:
  • Green LED – Power
  • Red LED – Relay Output
• Isolation Voltage: 3.75 kV
• Power Consumption: 2.5 VA
• Operating Temperature: -20°C to +60°C
• Relative Humidity: 0–90% Non-Condensing
• Applications:
  • Pump Control
  • Water Treatment
  • Wastewater Systems
  • Tank Level Monitoring
  • Industrial Automation
  • Process Control
  • HVAC Systems

Dimensions:

• Standard 11-pin plug-in relay housing for panel or socket mounting.
• Compatible with standard 11-pin relay sockets.

Weight:

• Approximate Weight: 0.15 kg (0.33
