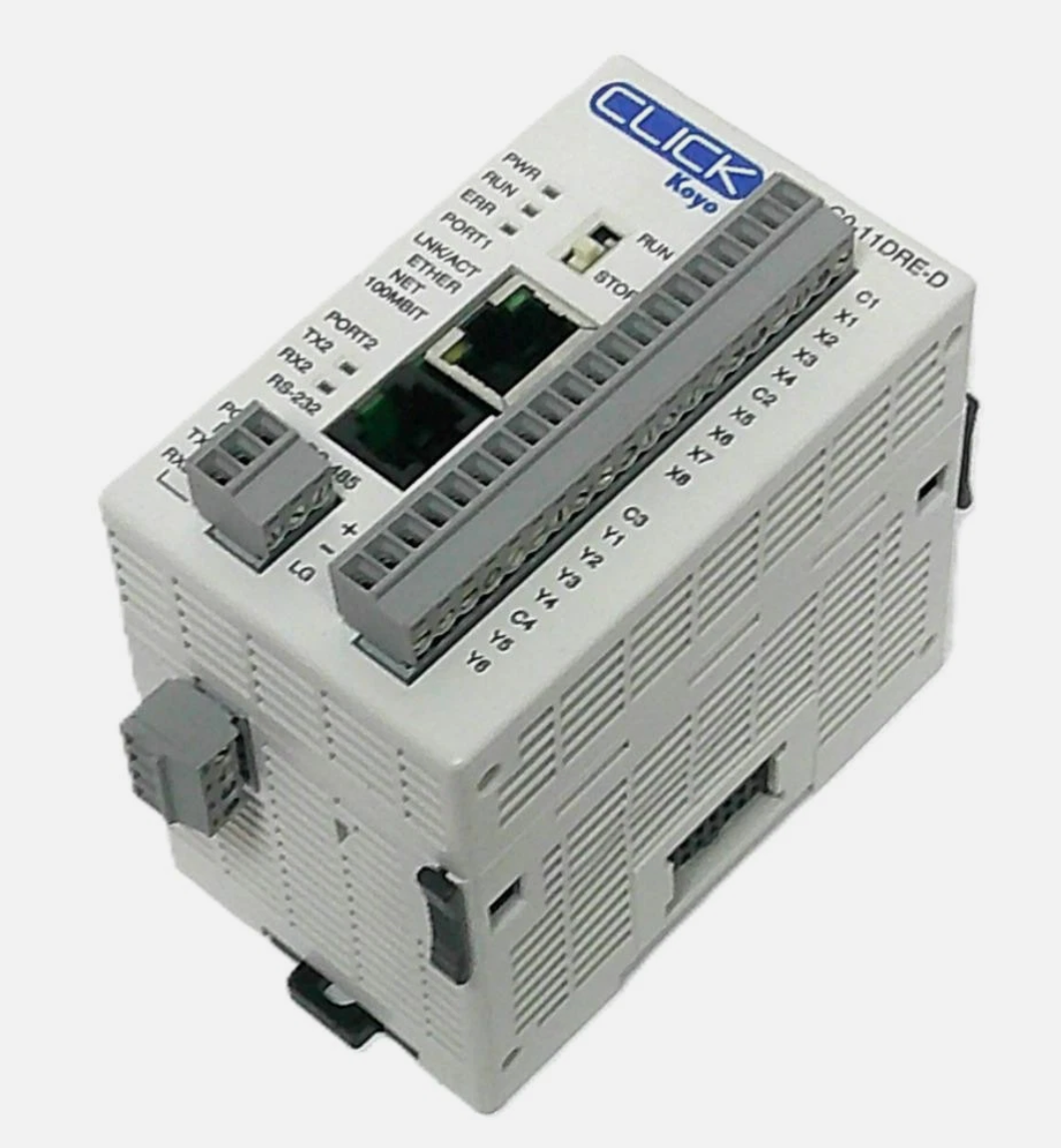

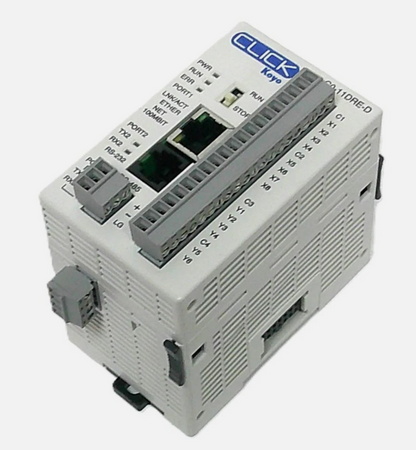

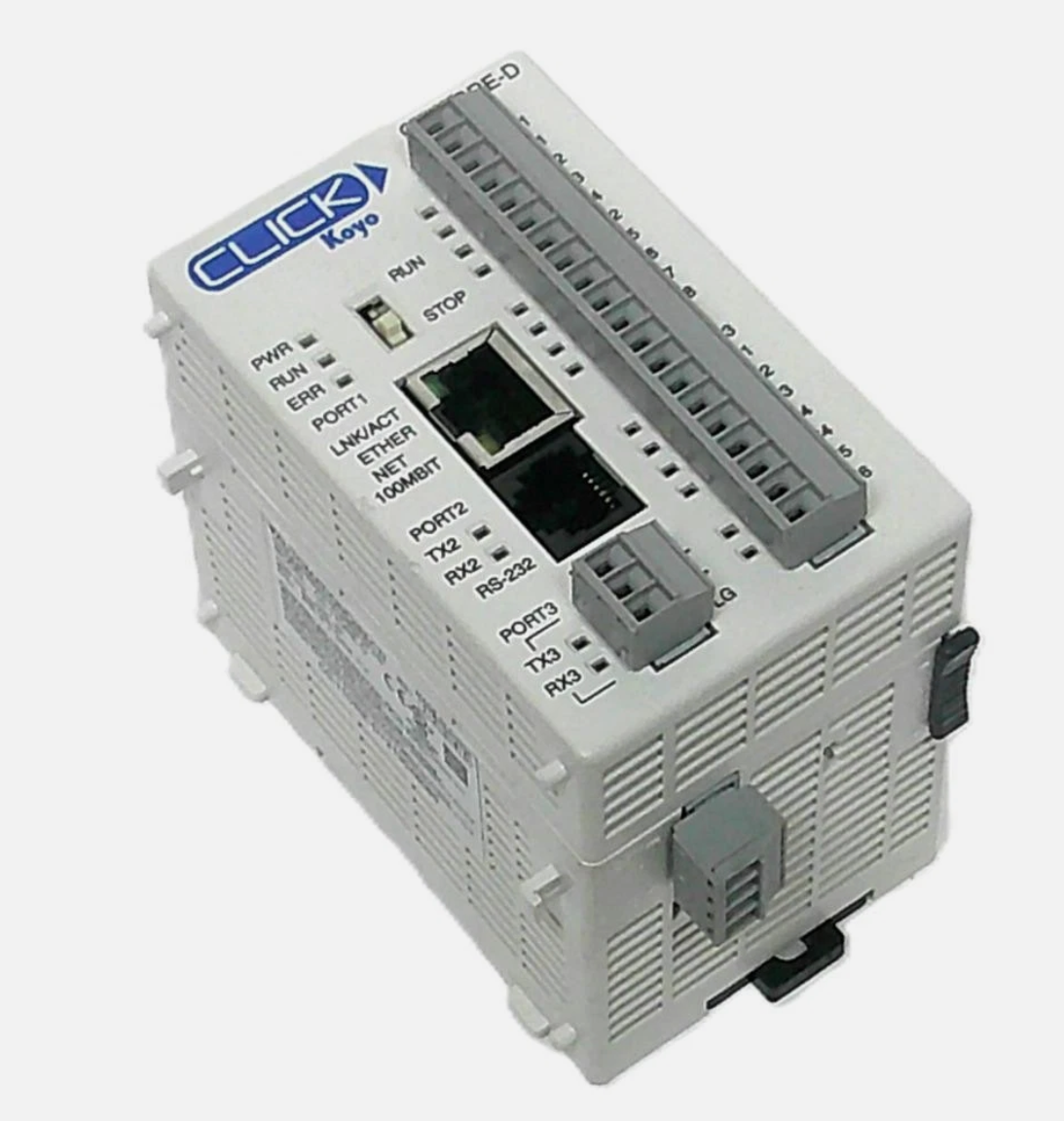

C0-11DRE-D CLICK Koyo PLC CPU – 24VDC, Ethernet, RS-232, Relay Outputs

Description

• CLICK PLC CPU module for industrial automation and machine control applications
• Built-in Ethernet communication port with 10/100 Mbps network capability
• Equipped with RS-232 serial communication
• 24 VDC power input
• Integrated discrete inputs and relay outputs
• Relay outputs support both AC and DC loads within rated specifications
• RUN/STOP selector switch for controller operation
• LED status indicators for power, run, error, inputs, outputs, and communications
• Suitable for control panels, machinery, equipment automation, and PLC control systems
• DIN-rail mounting design
• Made in China

Specifications

• Part Number: C0-11DRE-D
• Manufacturer: Koyo Electronics Industries Co., Ltd.
• Brand: CLICK / AutomationDirect
• Product Type: PLC CPU / Programmable Logic Controller

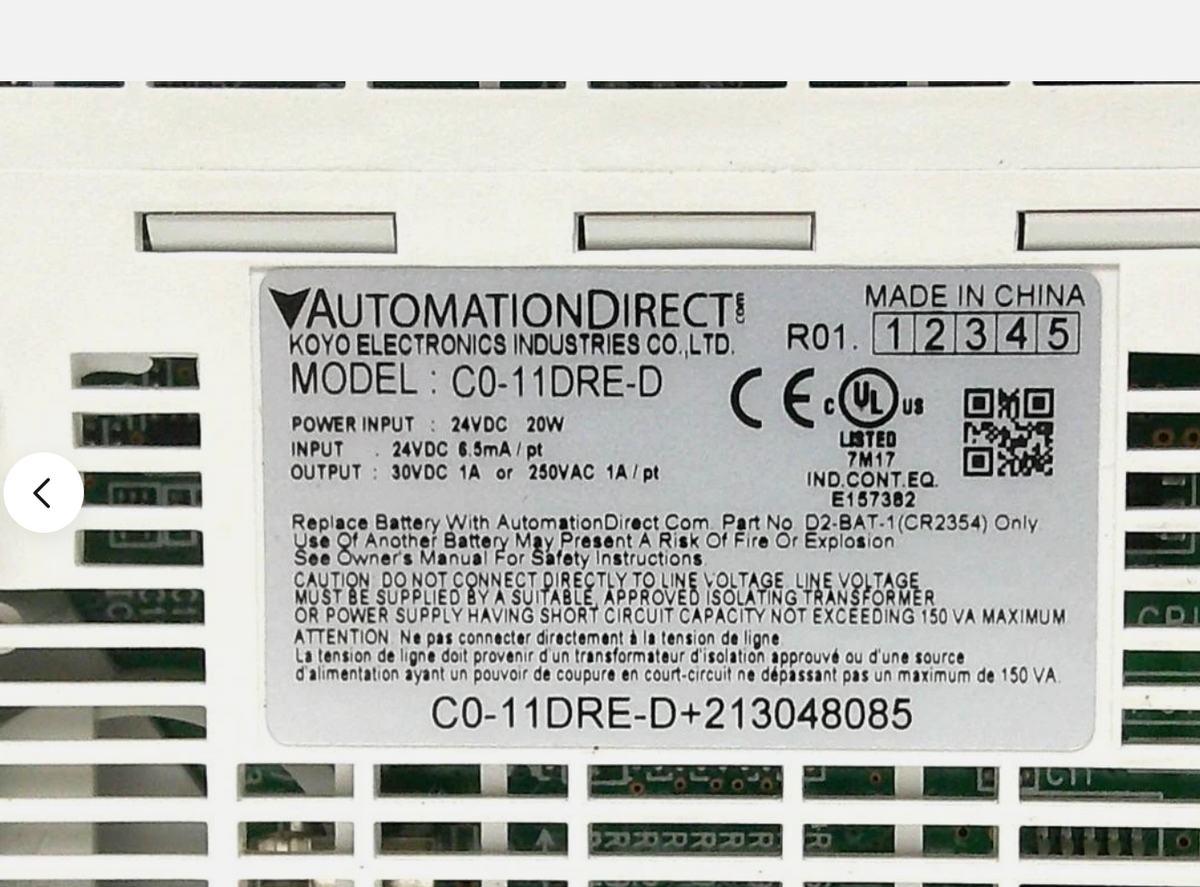

• Power Input: 24 VDC, 20 W
• Input Rating: 24 VDC, 6.5 mA per point
• Output Type: Relay
• Output Rating: 30 VDC, 1 A per point or 250 VAC, 1 A per point
• Ethernet: 10/100 Mbps
• Serial Communication: RS-232
• Operating Control: RUN / STOP switch
• Mounting: DIN Rail
• Certification Markings: CE, UL Listed
• Country of Origin: China

Dimensions

• Approx. 3.15 in W × 3.74 in H × 2.76 in D
• Approx. 80 mm W × 95 mm H × 70 mm D

Weight

• Approx. 0.5 lb
• Approx. 0.23 kg
