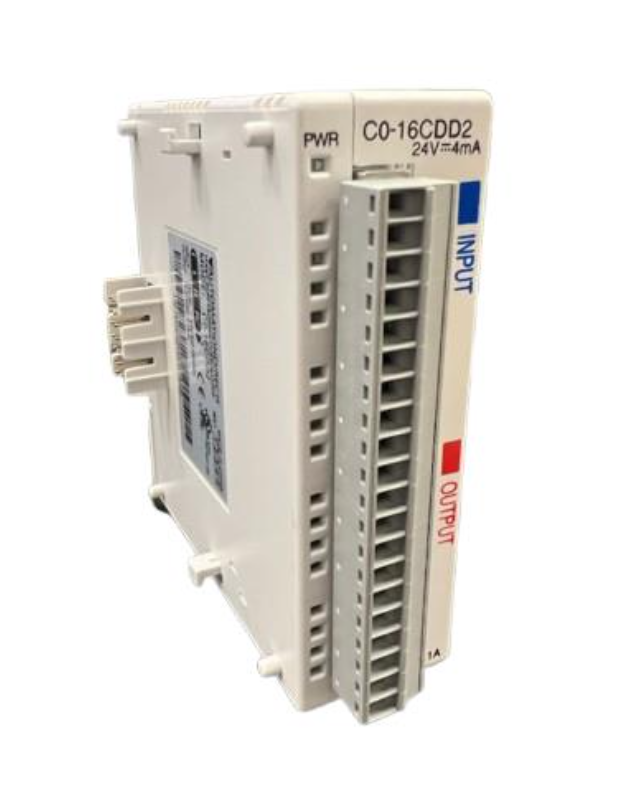

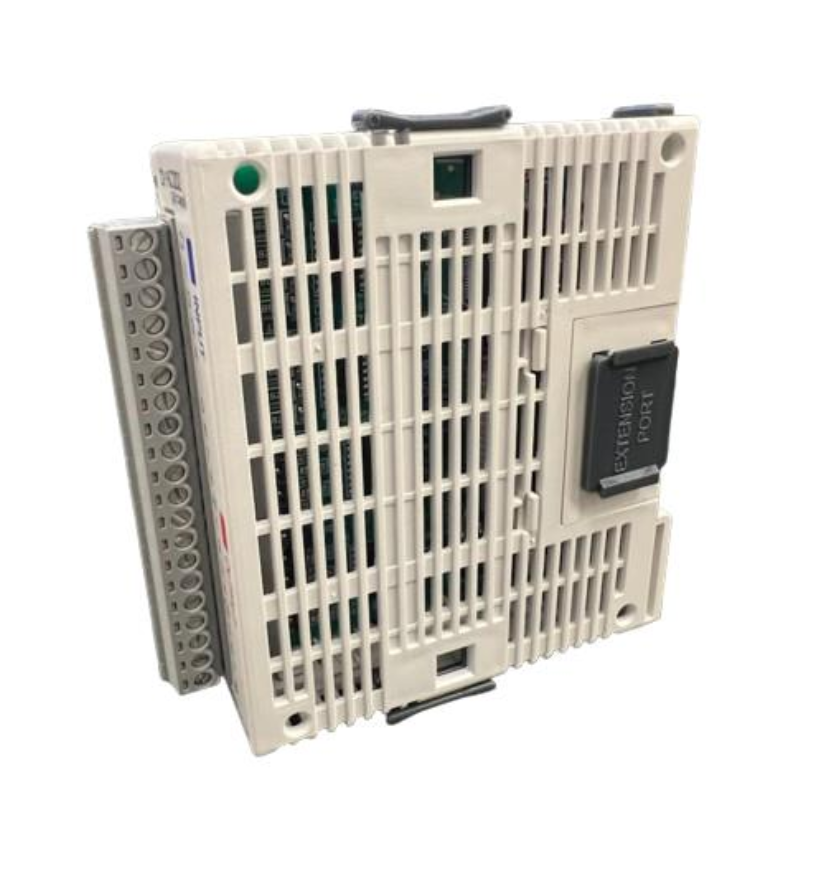

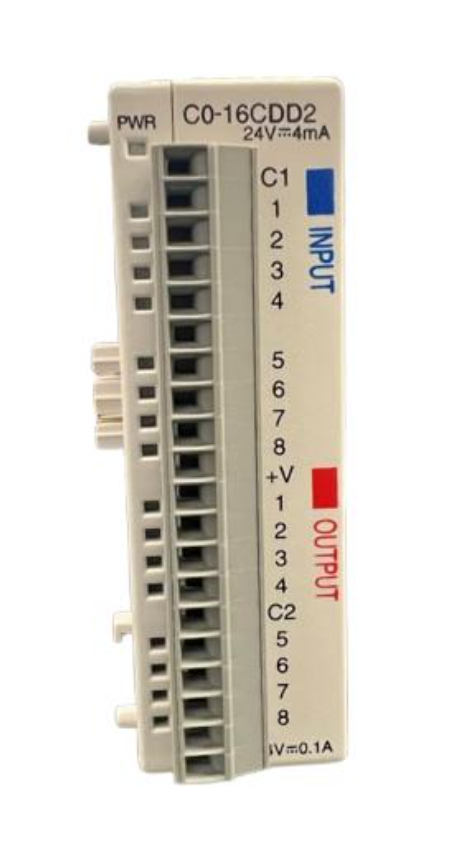

C0-16CDD2 CLICK Discrete Combo I/O Module – 8 Input 24VDC, 8 Output 12-24VDC

Description

• CLICK discrete combination I/O module for industrial PLC and automation systems
• 8 discrete DC input points
• 8 discrete DC sourcing output points
• 24 VDC sinking/sourcing inputs
• 12–24 VDC sourcing outputs
• Output capacity of 0.1 A per point
• Combines input and output functions in one compact module
• Removable terminal block included
• Designed for CLICK PLC and CLICK PLUS PLC systems
• Suitable for machine control, control panels, sensors, actuators, and industrial automation applications
• Country of Origin: Japan

Specifications

• Part Number: C0-16CDD2
• Brand: CLICK
• Manufacturer / Supplier: Koyo Electronics / AutomationDirect
• Product Type: Discrete Combo I/O Module
• Inputs: 8 Points
• Input Type: Sinking / Sourcing
• Nominal Input Voltage: 24 VDC
• Input Voltage Range: 21.6–26.4 VDC
• Typical Input Current: 4.0 mA at 24 VDC
• Outputs: 8 Points
• Output Type: Sourcing
• Nominal Output Voltage: 12–24 VDC
• Output Voltage Range: 9.6–30 VDC
• Maximum Output Current: 0.1 A per point
• Maximum Output Current per Common: 0.8 A
• Input Commons: 1
• Output Commons: 1
• Terminal Block: Removable C0-16TB included
• Bus Power Required: Maximum 80 mA at 24 VDC
• Required Software: CLICK Programming Software V1.40 or later
• Required PLC Firmware: V1.40 or later
• UL Listed: E157382
• RoHS: Yes

Dimensions

• Compact CLICK stackable I/O module
• Designed for installation with CLICK PLC systems

Weight

• Product Weight: 3.2 oz (90 g)
• Shipping Weight: 0.3 lb
