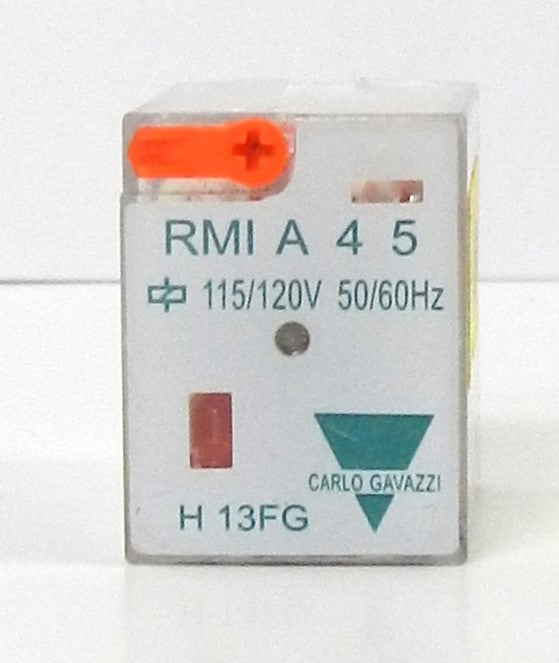

RMI A 4-5 Carlo Gavazzi 4PDT Industrial Relay 5A 14-Pin Plug-In General Purpose Relay

Description:

• Genuine Carlo Gavazzi RMI Series industrial general-purpose relay
• Features 4 Form C (4PDT) contact configuration for versatile switching applications
• Rated for 5A switching current at up to 250 VAC or 30 VDC
• Available with a wide range of AC (6–230 VAC) and DC (5–110 VDC) coil voltage options depending on the model suffix

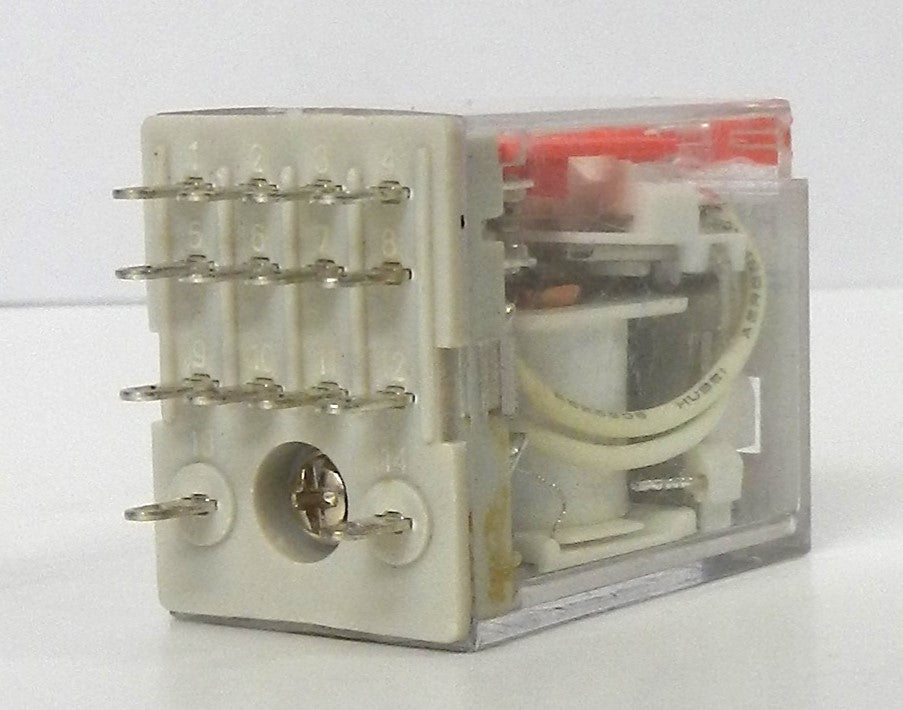

• Compact 14-pin plug-in design for quick installation and replacement
• Standard versions include LED status indicator, mechanical flag, and locking test button
• High dielectric strength of 3750 VAC between coil and contacts for improved electrical isolation
• Designed for industrial control panels, automation systems, motor controls, PLC interfaces, HVAC systems, and OEM machinery
• Compatible with Carlo Gavazzi ZMI relay sockets for DIN rail mounting and simplified wiring.

Specifications:

• Manufacturer Name: Carlo Gavazzi
• Part Number (MPN): RMI A 4-5
• Product Series: RMI
• Product Type: Industrial General Purpose Relay
• Contact Configuration: 4PDT (4 Form C)
• Contact Rating: 5 A
• Maximum Switching Voltage:
  • 250 VAC
  • 30 VDC
• Maximum Switching Capacity:
  • 2500 VA
  • 300 W
• Number of Pins: 14
• Terminal Version: A – Solder/Plug-In Terminals
• Mounting Type: Plug-In Socket
• Operating Temperature: -55°C to +70°C
• Dielectric Strength: 3750 VAC (Coil to Contacts)
• Protection Rating: IP40
• Certifications:
  • UL Recognized
  • CSA
  • TÜV
  • CE
  • IMQ
• Applications:
  • Industrial Automation
  • PLC Control Panels
  • HVAC Systems
  • Machine Control
  • Motor Control
  • OEM Equipment
  • General Industrial Switching

Dimensions:

• Height: 36 mm
• Width: 28 mm
• Depth: 21.5 mm

Weight:

• Approximate Weight: 0.04 kg (0.09 lb).
