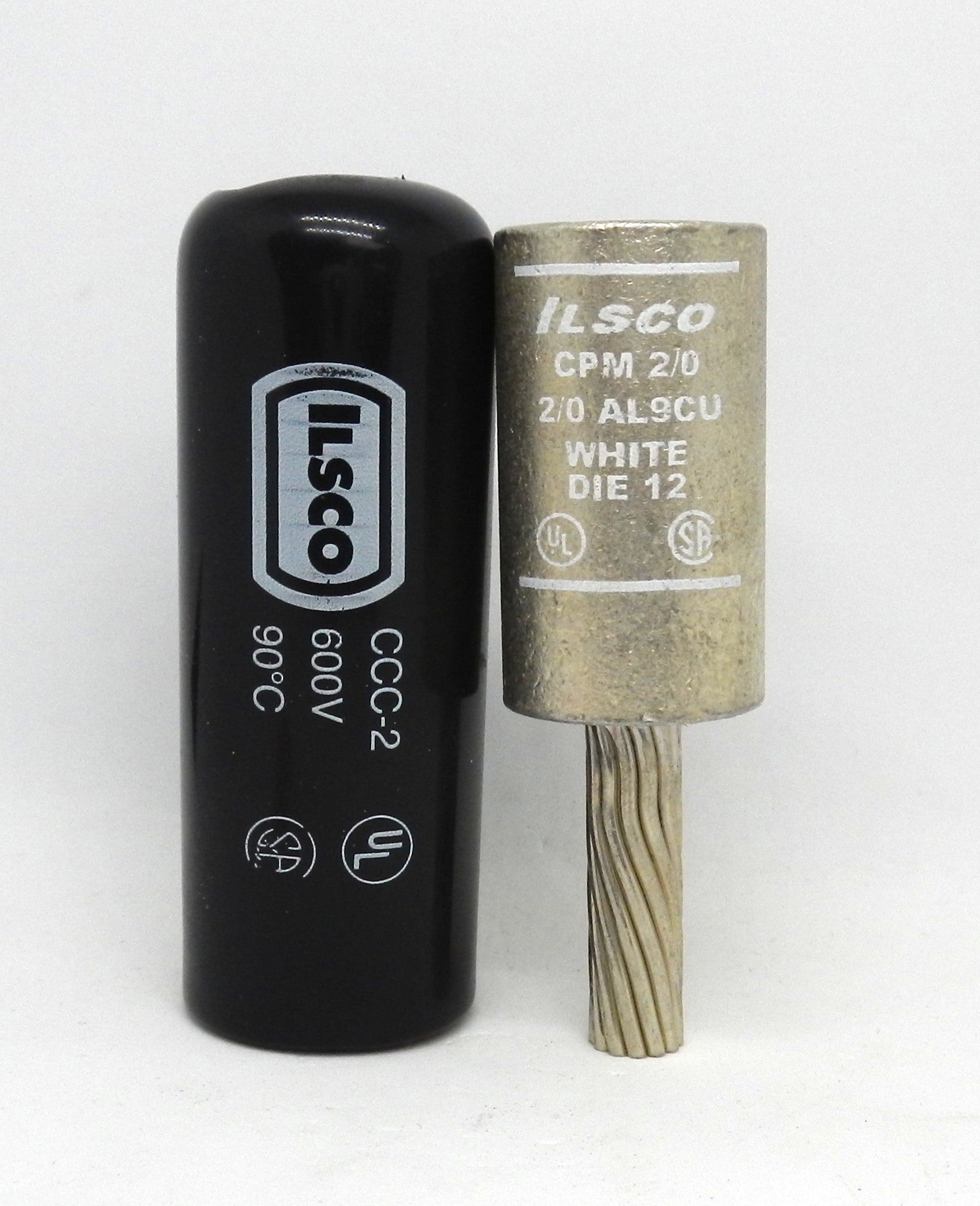

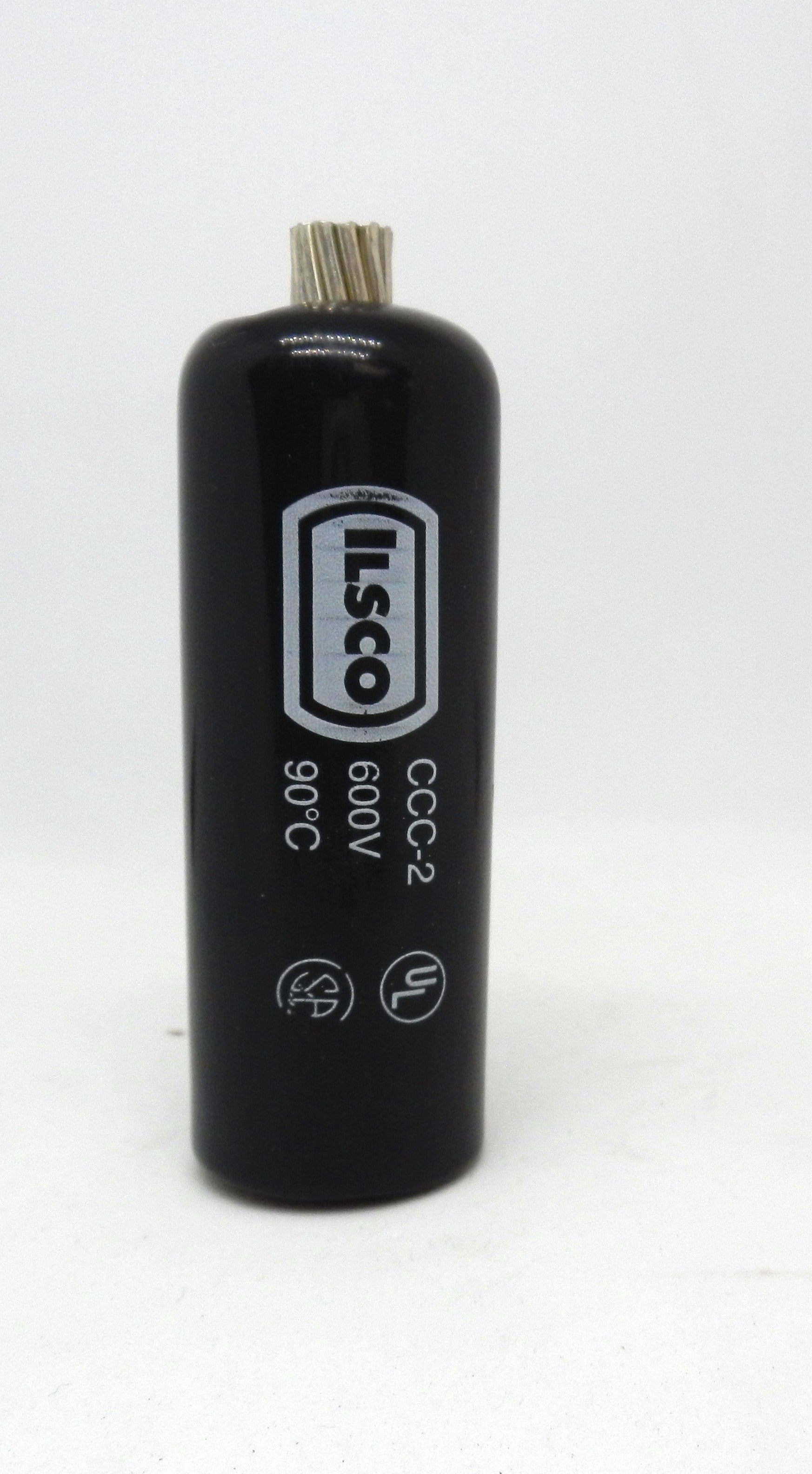

CCC-2 ILSCO Copper Compression Pigtail Adapter #2 AWG Tin-Plated UL CSA

Description:

• Genuine ILSCO compression pigtail adapter designed for industrial and commercial electrical connections
• Provides a reliable transition from a larger stranded conductor to a compact copper pin for connection to compatible equipment terminals
• Designed for #2 AWG conductor size
• Compression-style connection provides a secure, low-resistance electrical termination
• Tin-plated construction provides corrosion resistance and dependable conductivity
• Pigtail/pin design is useful where the incoming conductor is too large for the equipment terminal
• Suitable for copper and aluminum conductor applications when installed according to the product listing and equipment requirements
• Designed for electrical distribution equipment, switchgear, circuit breakers, disconnects, control panels, and industrial power systems
• ILSCO pigtail adapters are designed for high-current electrical termination applications and are available with insulating covers and compression tooling requirements.

Specifications:

• Manufacturer Name: ILSCO
• Part Number (MPN): CCC-2
• Product Type: Pigtail Adapter / Compression Pin Adapter
• Conductor Size: #2 AWG
• Connection Method: Compression
• Number of Conductors: 1
• Configuration: Straight / 180°
• Finish: Tin Plated
• Application: Conductor-to-Equipment Terminal Adaptation
• Temperature Rating: 90°C
• Typical Voltage Rating: 600 V
• Installation: Compression Tool Required
• Applications:
  • Electrical Distribution
  • Switchgear
  • Circuit Breakers
  • Disconnect Switches
  • Industrial Control Panels
  • Power Distribution Panels
  • Equipment Terminals

ILSCO’s current #2 AWG compression pigtail product data confirms a #2 conductor, compression connection, tin finish, 90°C rating and 600 V rating.

Dimensions:

• Compact compression pigtail adapter form factor
• Exact dimensions should be verified from the markings or packaging for CCC-2, because ILSCO currently publishes several similar pigtail-adapter families with different dimensions.

Weight:

• Lightweight electrical connector
• Exact CCC-2 weight should be verified from the original package or manufacturer data before entering a shipping weight.
