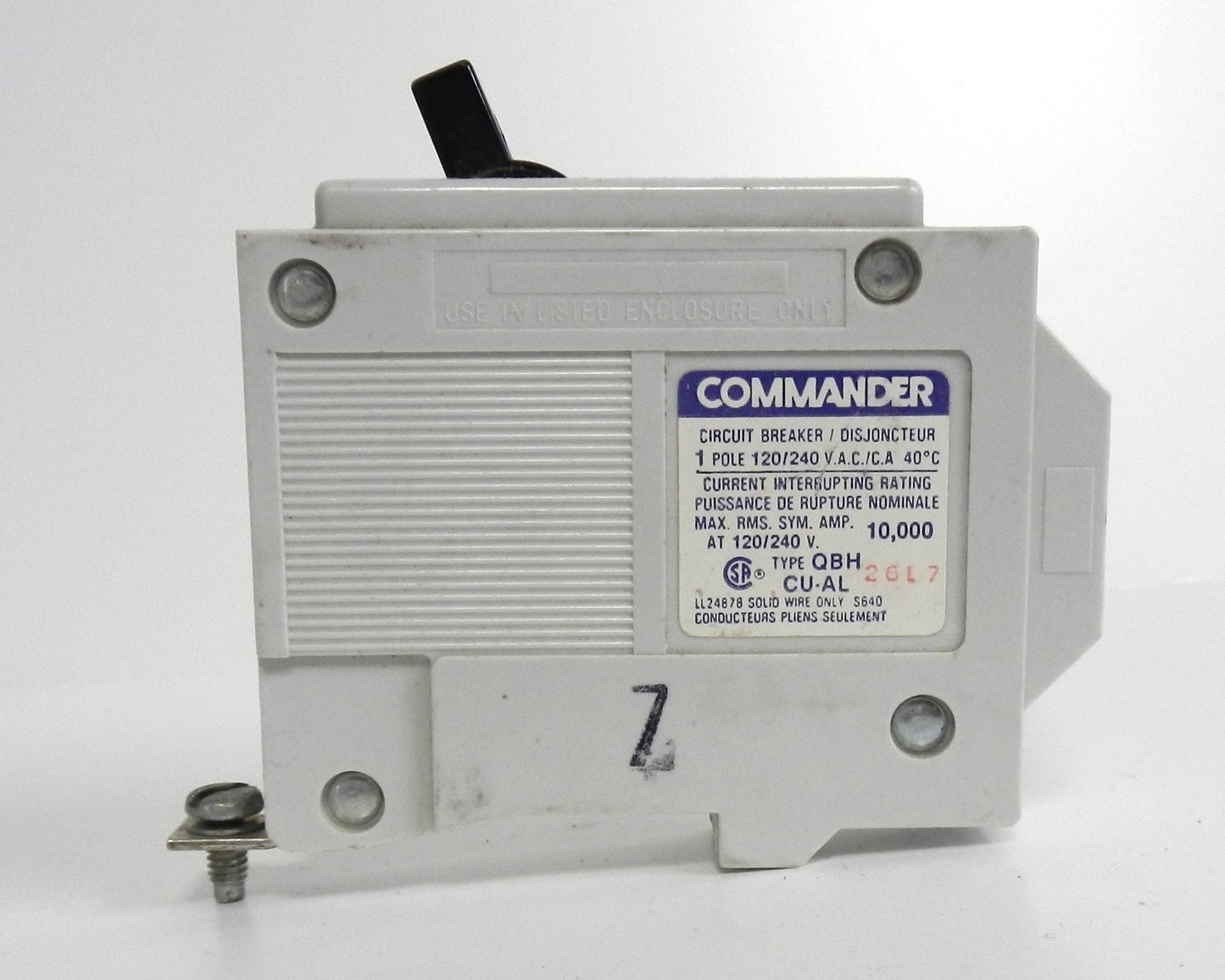

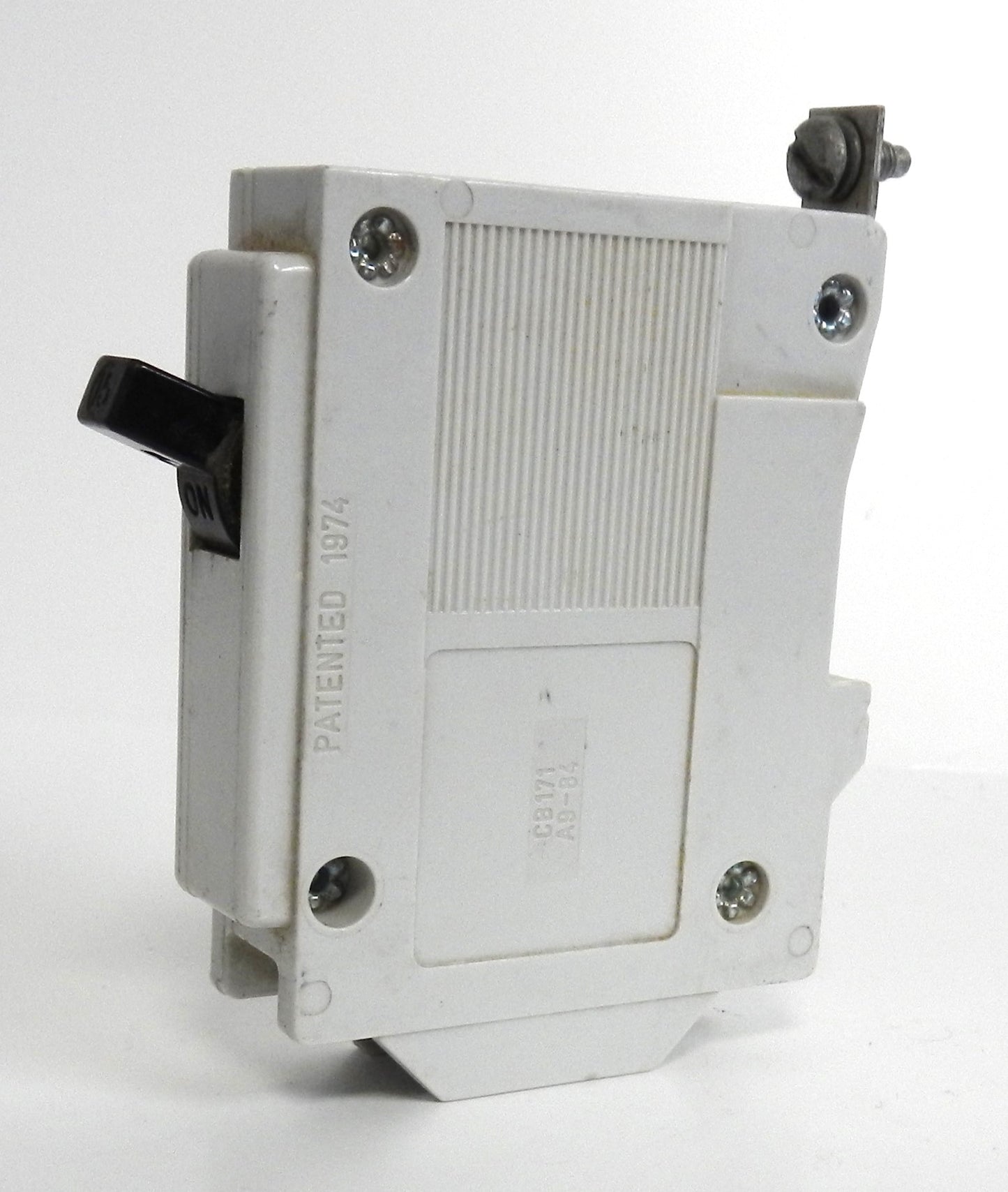

QBH115 Commander 15A 1-Pole Bolt-On Circuit Breaker 120/240VAC Thermal Magnetic

Description:

• Genuine Commander bolt-on thermal magnetic circuit breaker for residential, commercial, and light industrial electrical distribution panels
• Provides 1-pole, 15 Amp branch circuit protection against overloads and short circuits
• Rated for 120/240 VAC electrical systems
• Bolt-on mounting provides a secure mechanical and electrical connection to the panel bus
• Compatible with Commander B/BC, Sylvania, and CEB bolt-on load centers
• Thermal-magnetic trip mechanism delivers reliable protection for lighting, receptacle, and general-purpose branch circuits
• Compact 3/4-inch wide design fits standard Commander bolt-on panel configurations
• UL Listed and CSA Certified for dependable electrical protection
• Ideal for replacement, maintenance, and service upgrades in legacy Commander and Sylvania panelboards.

Specifications:

• Manufacturer Name: Commander (Eaton / Cutler-Hammer)
• Part Number (MPN): QBH115
• Alternate Part Number: QBH15
• Product Type: Thermal Magnetic Circuit Breaker
• Number of Poles: 1
• Rated Current: 15 A
• Rated Voltage: 120/240 VAC
• Mounting Type: Bolt-On
• Breaker Type: Thermal Magnetic
• Interrupt Rating:
  • 65 kA @ 240 VAC
• Wire Size:
  • 14–8 AWG Copper
  • 8 AWG Aluminum
• Certifications:
  • UL Listed
  • CSA Certified
• Compatible Panels:
  • Commander B Series
  • Commander BC Series
  • Sylvania Bolt-On Panels
  • CEB Bolt-On Panels
• Applications:
  • Residential Distribution Panels
  • Commercial Electrical Panels
  • Industrial Branch Circuits
  • Lighting Circuits
  • Receptacle Circuits
  • General-Purpose Electrical Protection

Dimensions:

• Width: 3/4 in (19 mm)
• Standard single-pole bolt-on form factor for Commander load centers.

Weight:

• Approximate Weight: 0.18 kg (0.40 lb).
