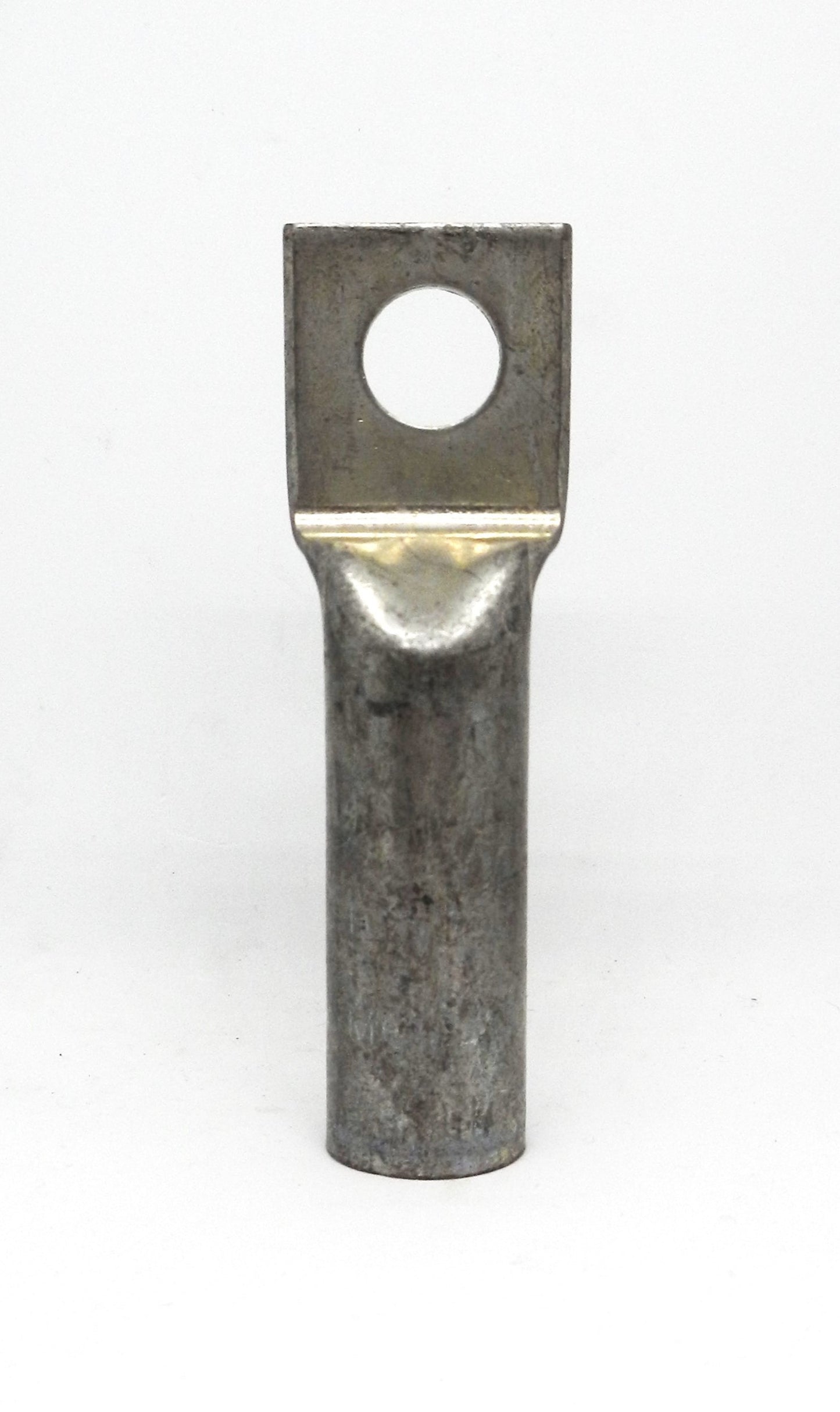

300 MCM Copper Compression Lug Heavy-Duty Electrical Cable Terminal Connector

Description:

• Heavy-duty compression lug designed for terminating 300 MCM / 300 kcmil copper conductors
• Manufactured from high-conductivity copper for dependable electrical performance
• Compression-style connection provides a strong, permanent, and vibration-resistant cable termination
• Commonly available with tin-plated copper construction for improved corrosion resistance and low contact resistance
• Suitable for power distribution, switchgear, transformers, panelboards, disconnects, industrial equipment, and control panels
• 300 MCM and 300 kcmil refer to the same conductor size
• Typical 300 MCM copper compression lugs use white color coding for die identification
• Suitable for high-current industrial and commercial electrical installations
• Actual stud-hole size, barrel length, voltage rating, and certifications should be verified from the markings on the specific lug before listing. Common 300 MCM lugs are available in several configurations.

Specifications:

• Product Type: Compression Lug
• Conductor Size: 300 MCM / 300 kcmil
• Conductor Material: Copper
• Lug Material: Copper
• Connection Method: Compression / Crimp
• Typical Finish: Tin-Plated Copper
• Typical Die Color Code: White
• Application: Copper Cable Termination
• Installation Method: Compression Tool / Hydraulic Crimper
• Typical Standards: UL 486A / CSA, depending on manufacturer
• Typical Temperature Rating: 90°C
• Typical Voltage Rating: 600V, with some properly installed models rated as high as 35 kV.
• Applications:
  • Electrical Distribution
  • Switchgear
  • Transformers
  • Panelboards
  • Disconnect Switches
  • Industrial Control Panels
  • Motor Control Equipment
  • Commercial Electrical Systems

Dimensions:

• Dimensions vary by manufacturer, barrel type, and stud-hole configuration
• Example short-barrel 300 MCM one-hole lug:
  • Overall Length: 2.48 in
  • Width: 1.19 in
  • Barrel Length: 1.00 in
  • Barrel Inside Diameter: 0.66 in

Weight:

• Weight varies by manufacturer and lug configuration
• Verify the exact weight from the manufacturer part number before entering shipping information
