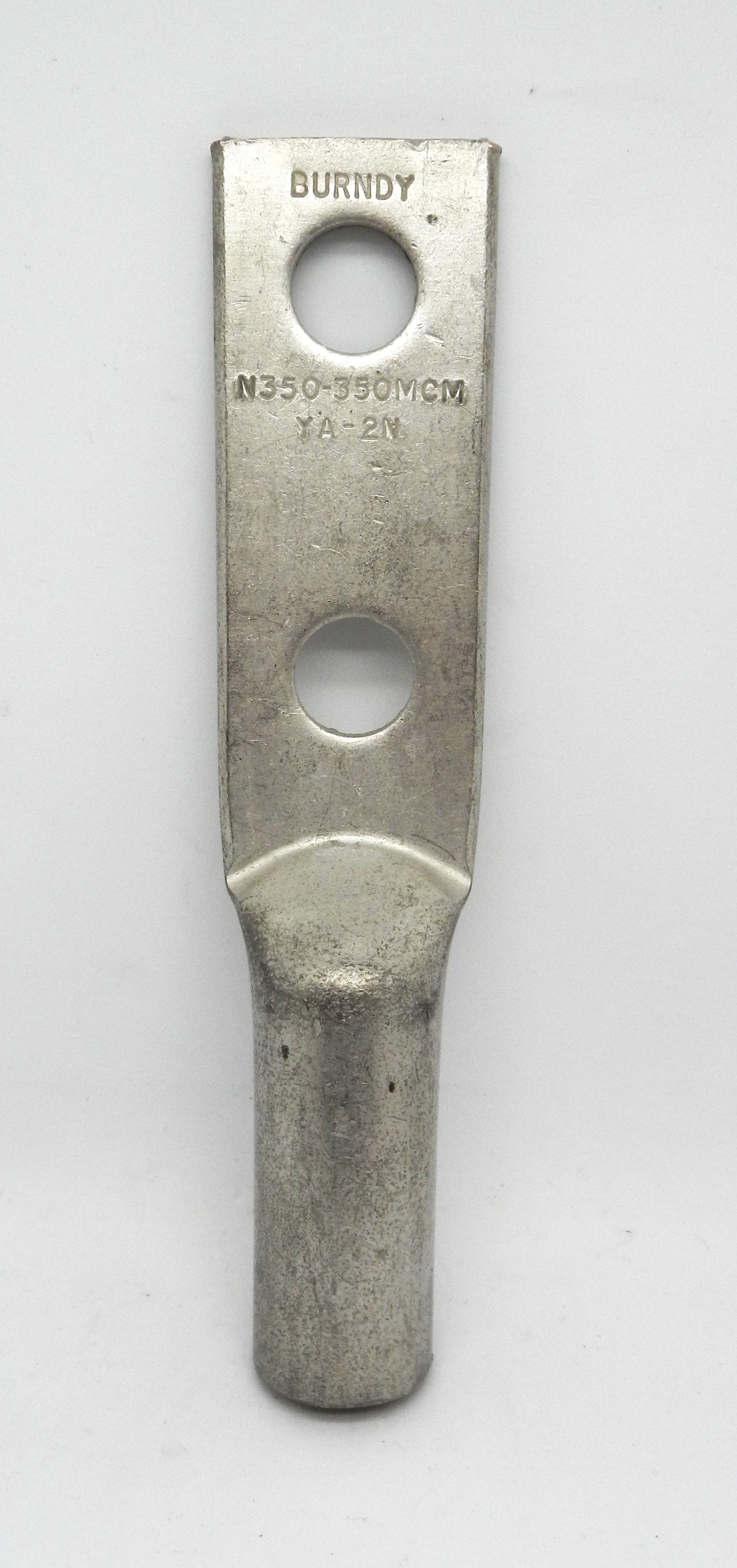

350 MCM 2-Hole Copper Compression Lug Tin-Plated 1/2" Stud Long Barrel

Description:

• Heavy-duty 2-hole copper compression lug for terminating 350 MCM (kcmil) copper conductors
• Manufactured from high-conductivity electrolytic copper with a tin-plated finish for superior corrosion resistance and conductivity
• Long barrel design provides multiple compression points for a secure, low-resistance electrical connection
• Two-hole mounting pad helps prevent lug rotation and ensures a stable connection on bus bars and equipment terminals
• Designed for 1/2 in. stud size with 1-3/4 in. hole spacing, the most common industrial configuration
• Suitable for use with switchgear, panelboards, transformers, motor control centers, grounding systems, and industrial power distribution
• Compatible with standard compression crimping tools and industry die sets
• UL and CSA listed when installed with the correct crimping dies and installation procedures

Specifications:

• Manufacturer: Various / Universal
• Product Type: Copper Compression Lug
• Conductor Size: 350 MCM (350 kcmil)
• Conductor Material: Copper
• Lug Material: High-Conductivity Electrolytic Copper
• Finish: Electro-Tin Plated
• Barrel Type: Long Barrel
• Number of Mounting Holes: 2
• Stud Size: 1/2 in.
• Hole Spacing: 1-3/4 in. (44.5 mm)
• Connection Type: Compression
• Mounting Angle: Straight (180°)
• Voltage Rating: Up to 35 kV (when properly installed)
• Standards:
  • UL 486A
  • CSA Certified
• Applications:
  • Power Distribution
  • Switchgear
  • Transformers
  • Grounding & Bonding
  • Control Panels
  • Industrial Automation
  • Electrical Service Equipment

Dimensions:

• Conductor Size: 350 MCM
• Stud Hole Diameter: 1/2 in.
• Hole Spacing: 1.75 in. (44.5 mm)
• Barrel Length: Approx. 2.24 in. (56.9 mm)

Weight:

• Approximate Weight: 0.18 kg (0.40 lb) (varies slightly by manufacturer).
