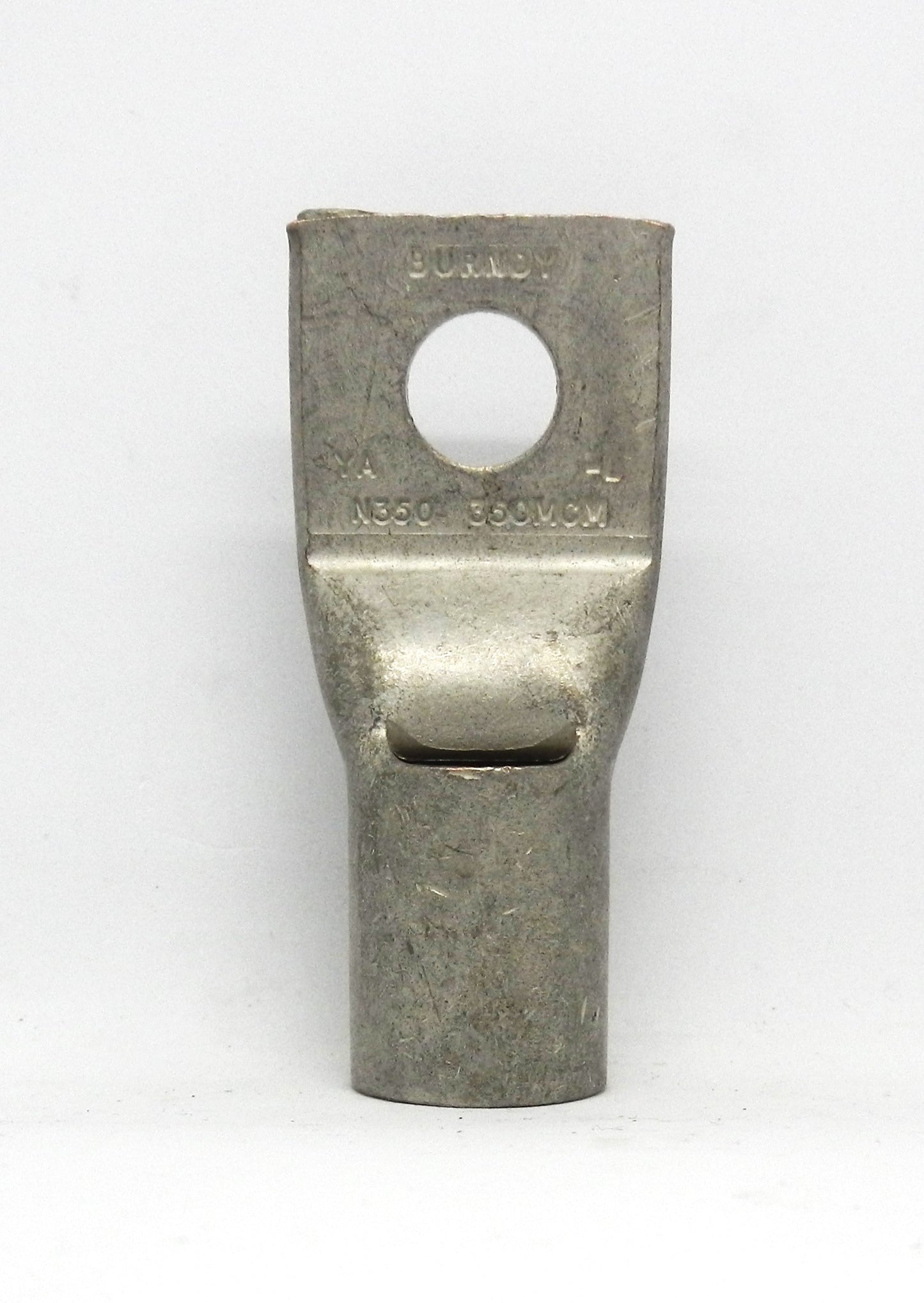

350 MCM Copper Compression Lug 1-Hole Tin-Plated Heavy-Duty Cable Terminal Connector

Description:

• High-quality 350 MCM (350 kcmil) copper compression lug for industrial and commercial power distribution applications
• Manufactured from high-conductivity electrolytic copper for maximum electrical performance
• Tin-plated finish provides excellent corrosion resistance and long-term conductivity
• Designed for terminating 350 MCM copper conductors in switchgear, panelboards, transformers, motor control centers, and distribution equipment
• 1-hole mounting design ensures secure connection to bus bars and electrical terminals
• Long barrel construction allows multiple compression crimps for increased mechanical strength and conductivity
• Inspection window enables easy verification of proper conductor insertion
• Compatible with standard compression crimping tools and color-coded dies
• Suitable for industrial automation, utility installations, commercial electrical systems, renewable energy, and OEM equipment
• UL 486A/B Listed and CSA Certified when installed with the proper tooling and conductor.

Specifications:

• Product Type: Copper Compression Lug
• Conductor Size: 350 MCM (350 kcmil)
• Material: Electrolytic Copper
• Finish: Electro-Tin Plated
• Mounting Style: 1-Hole
• Barrel Type: Long Barrel
• Conductor Material: Copper
• Voltage Rating: Up to 35 kV
• Installation Method: Compression Crimp
• Inspection Window: Yes
• Corrosion Resistant: Yes
• Standards:
  • UL 486A/B
  • CSA Certified
• Typical Applications:
  • Electrical Distribution
  • Switchgear
  • Transformers
  • Motor Control Centers
  • Industrial Control Panels
  • Renewable Energy Systems
  • Utility Power Distribution

Dimensions:

• Conductor Size: 350 MCM (350 kcmil)
• Barrel Type: Long Barrel
• Mounting Configuration: 1-Hole
• Stud Size: Varies by model (commonly 1/2 in or 3/8 in).

Weight:

• Approximate Weight: 0.10 kg (0.22 lb) (varies by manufacturer and stud size).
