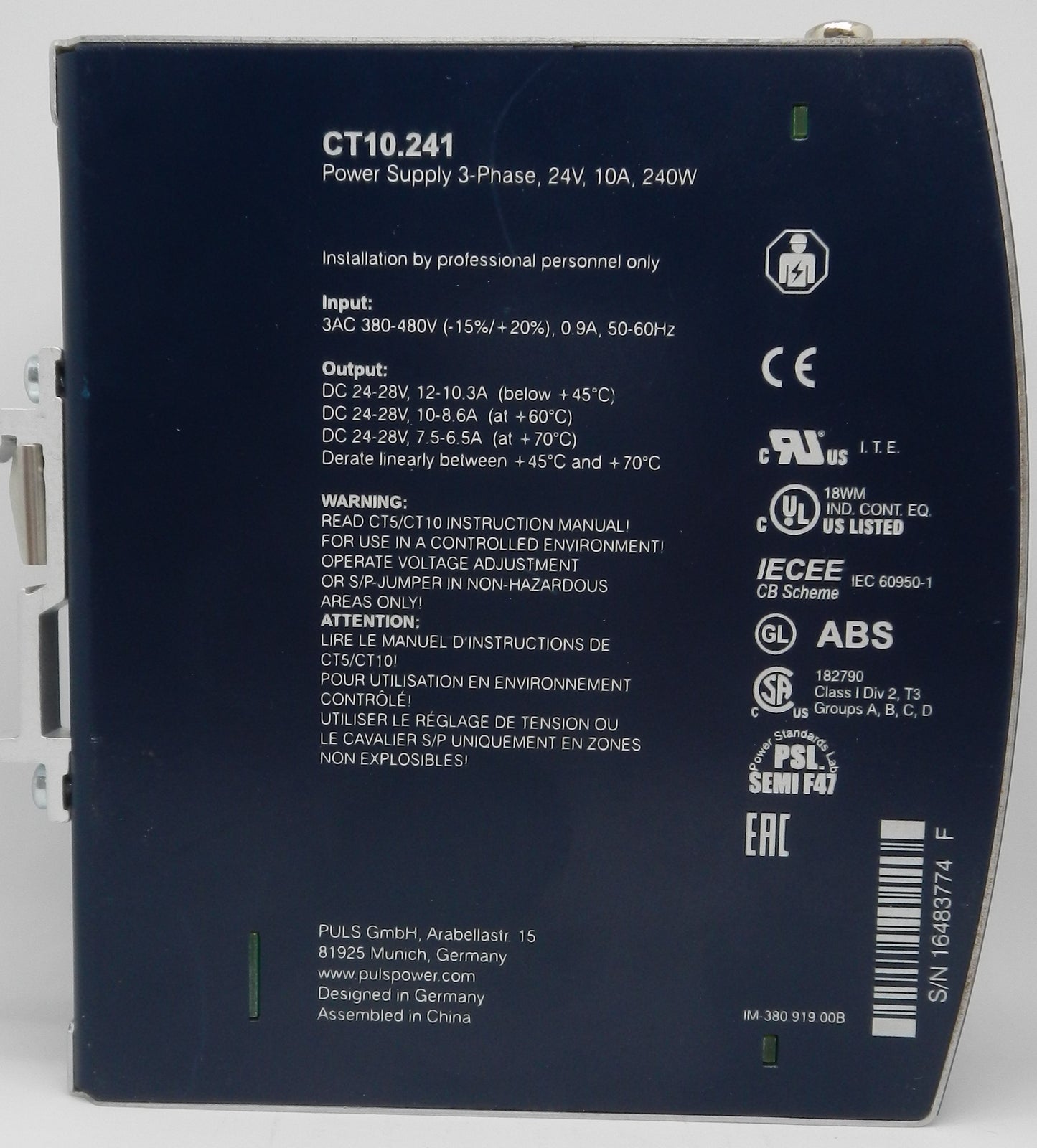

CT10.241 PULS DIMENSION 24VDC 10A 240W 3-Phase DIN Rail Power Supply

Description:

• Genuine PULS DIMENSION industrial DIN rail power supply for demanding automation and control applications
• Delivers 24 VDC nominal output, adjustable from 24–28 VDC
• Provides 10A output current at 24V with a maximum output power of 240W
• Wide 3-phase AC input range of 380–480 VAC (-15%/+20%) for global industrial power systems
• High efficiency of up to 92.9%, reducing heat generation and energy consumption
• Features 20% Power Boost capability for handling temporary overloads
• Active inrush current limitation minimizes startup current and reduces stress on upstream protection devices
• Compact 62 mm wide housing saves valuable DIN rail space
• Supports parallel operation for load sharing through adjustable output settings
• Ideal for PLC systems, industrial automation, machine control, process control, OEM equipment, packaging machinery, and manufacturing facilities.

Specifications:

• Manufacturer Name: PULS
• Part Number (MPN): CT10.241
• Product Series: DIMENSION C-Series
• Product Type: DIN Rail Power Supply
• Input Voltage: 380–480 VAC (-15%/+20%), 3-Phase
• Input Frequency: 50/60 Hz
• Output Voltage:
  • 24 VDC Nominal
  • Adjustable: 24–28 VDC
• Output Current:
  • 10A @ 24VDC
  • 8.6A @ 28VDC
• Output Power: 240W
• Efficiency: 92.9% Typical
• Ripple & Noise: 50 mVpp Maximum
• Power Boost: 20% Continuous up to +45°C
• Mounting Type: 35 mm DIN Rail
• Connection Type: Screw Terminals
• Operating Temperature: -25°C to +70°C
• Protection Features:
  • Active Inrush Current Limitation
  • Overload Protection
  • Short-Circuit Protection
  • Overvoltage Protection
• MTBF: 975,000 Hours @ 40°C
• Applications:
  • PLC Systems
  • Industrial Automation
  • Machine Control
  • Process Control
  • Manufacturing Equipment
  • OEM Machinery
  • Control Panels
  • Packaging Systems

Dimensions:

• Width: 62 mm (2.44 in)
• Height: 124 mm (4.88 in)
• Depth: 117 mm (4.61 in)

Weight:

• Approximate Weight: 0.75 kg (1.65 lb).
