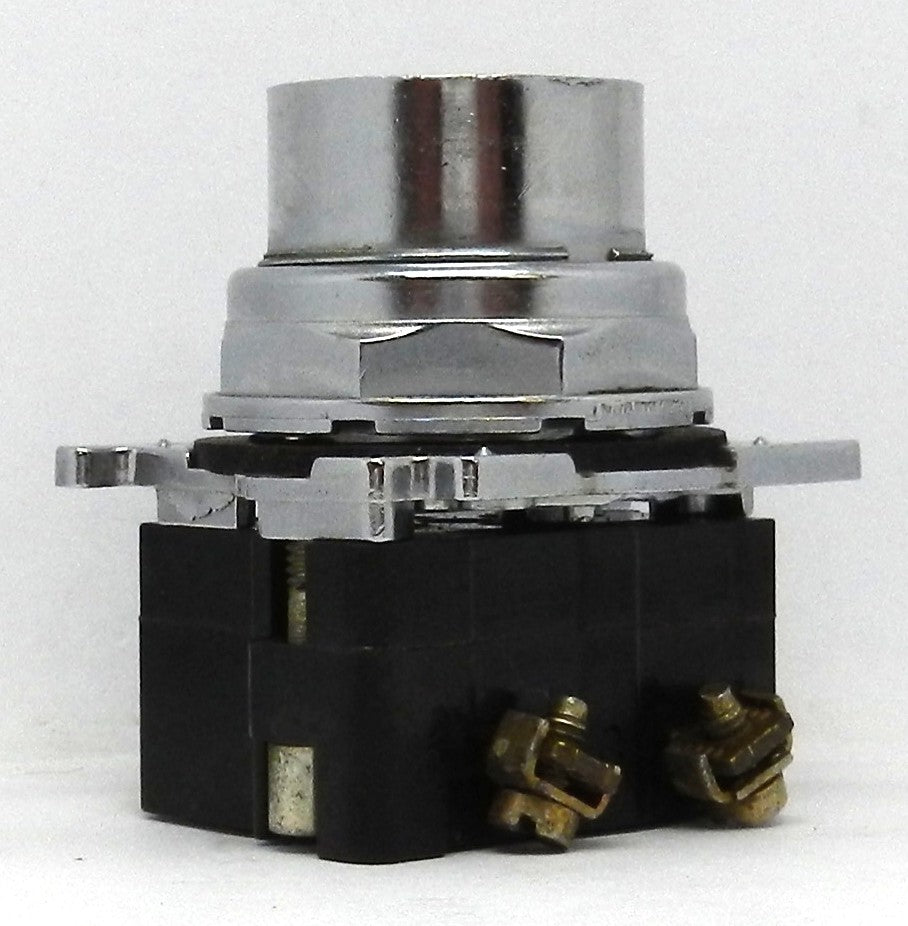

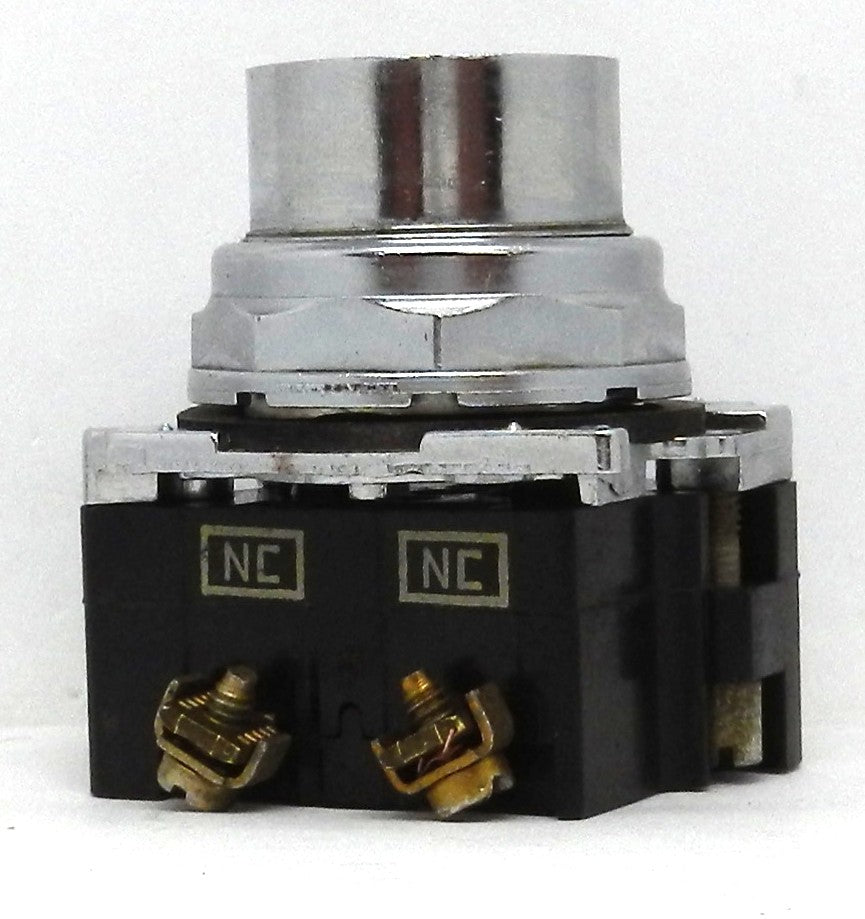

10250T101-2 Cutler-Hammer 30.5mm Heavy-Duty Momentary Flush Push Button Operator Red Non-Illuminated

Description:

• Heavy-duty Cutler-Hammer momentary push button operator designed for industrial machine control and automation applications
• 30.5 mm panel mount with rugged chrome-plated die-cast zinc bezel for demanding industrial environments
• Red flush-head momentary push button with non-illuminated operator
• Compatible with Eaton/Cutler-Hammer 10250T Series contact blocks and accessories
• Modular construction allows installation of NO/NC contact blocks to suit various control applications
• Designed for oil-tight and watertight service in harsh industrial environments
• NEMA 3, 3R, 4, 4X, 12, and 13 rated when properly assembled
• UL Listed and CSA Certified for industrial control applications
• Ideal for control panels, motor control centers, PLC systems, OEM machinery, conveyors, and factory automation
• Manufactured by Eaton Cutler-Hammer for reliable long-term industrial performance.

Specifications:

• Manufacturer Name: Eaton Cutler-Hammer
• Part Number (MPN): 10250T101-2
• Product Series: 10250T
• Product Type: Push Button Operator
• Operation: Momentary
• Operator Style: Flush Head
• Operator Color: Red
• Illumination: Non-Illuminated
• Mounting Diameter: 30.5 mm
• Actuator Material: Plastic
• Bezel Material: Chrome-Plated Die-Cast Zinc
• Mounting Type: Panel Mount
• Compatible Contact Blocks: Eaton/Cutler-Hammer 10250T Series
• Enclosure Rating: NEMA 3, 3R, 4, 4X, 12, 13
• Certifications: UL Listed, CSA Certified, CE
• Application: Industrial Control Panels, Machine Controls, Motor Starters, PLC Systems, OEM Equipment, and Factory Automation.

Dimensions:

• Height: 2.0 in (50.8 mm)
• Width: 1.9 in (48.3 mm)
• Depth: 1.9 in (48.3 mm)
• Mounting Hole Diameter: 30.5 mm.

Weight:

• Approximate Weight: 0.20 lb (0.09 kg).
