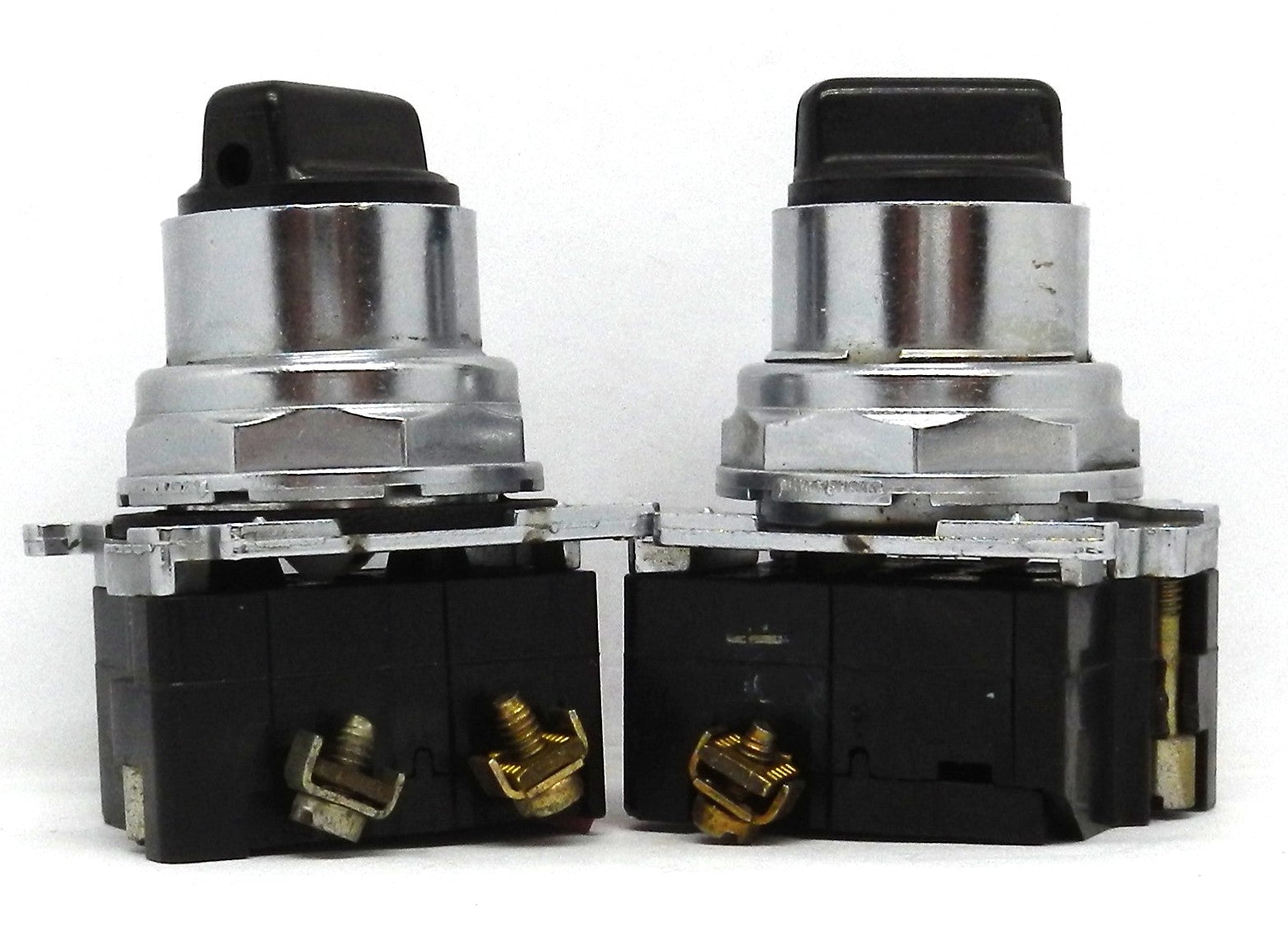

10250T20KB1 Cutler-Hammer 30.5mm Oiltight Selector Switch 2-Position Maintained Black Knob

Description:

• Heavy-duty Cutler-Hammer oiltight selector switch designed for industrial machine control and automation applications
• 30.5 mm panel mount with rugged chrome-plated die-cast zinc construction
• 2-position maintained selector switch with black knob actuator
• Oiltight and watertight design for demanding industrial environments
• Compatible with Eaton/Cutler-Hammer 10250T contact blocks and accessories
• NEMA 3, 3R, 4, 4X, 12, and 13 / IP65 enclosure rating when properly assembled
• Designed for reliable operation in motor control centers, PLC panels, OEM machinery, and industrial equipment
• Heavy-duty mechanism provides long mechanical life and dependable switching performance
• Modular construction allows easy maintenance and replacement of contact blocks
• Manufactured by Cutler-Hammer (Eaton) for industrial control applications.

Specifications:

• Manufacturer Name: Cutler-Hammer (Eaton)
• Part Number (MPN): 10250T20KB1
• Product Series: 10250T
• Product Type: Oiltight Selector Switch
• Mounting Diameter: 30.5 mm
• Operation Type: Maintained
• Number of Positions: 2
• Actuator Type: Black Knob
• Throw: Left-Right
• Contact Rating: 10 A at 600 VAC, 5 A at 250 VDC
• Body Material: Chrome-Plated Die-Cast Zinc
• Enclosure Rating: NEMA 3, 3R, 4, 4X, 12, 13 / IP65
• Mounting Type: Panel Mount
• Certifications: UL 508, CSA C22.2, CE
• Application: Industrial Control Panels, Motor Control Centers, Machine Automation, OEM Equipment, and Process Control.

Dimensions:

• Mounting Hole Diameter: 30.5 mm
• Heavy-duty modular operator
• Compatible with Eaton/Cutler-Hammer 10250T contact blocks and accessories.

Weight:

• Approximate Weight: 0.16 kg (0.35 lb).
