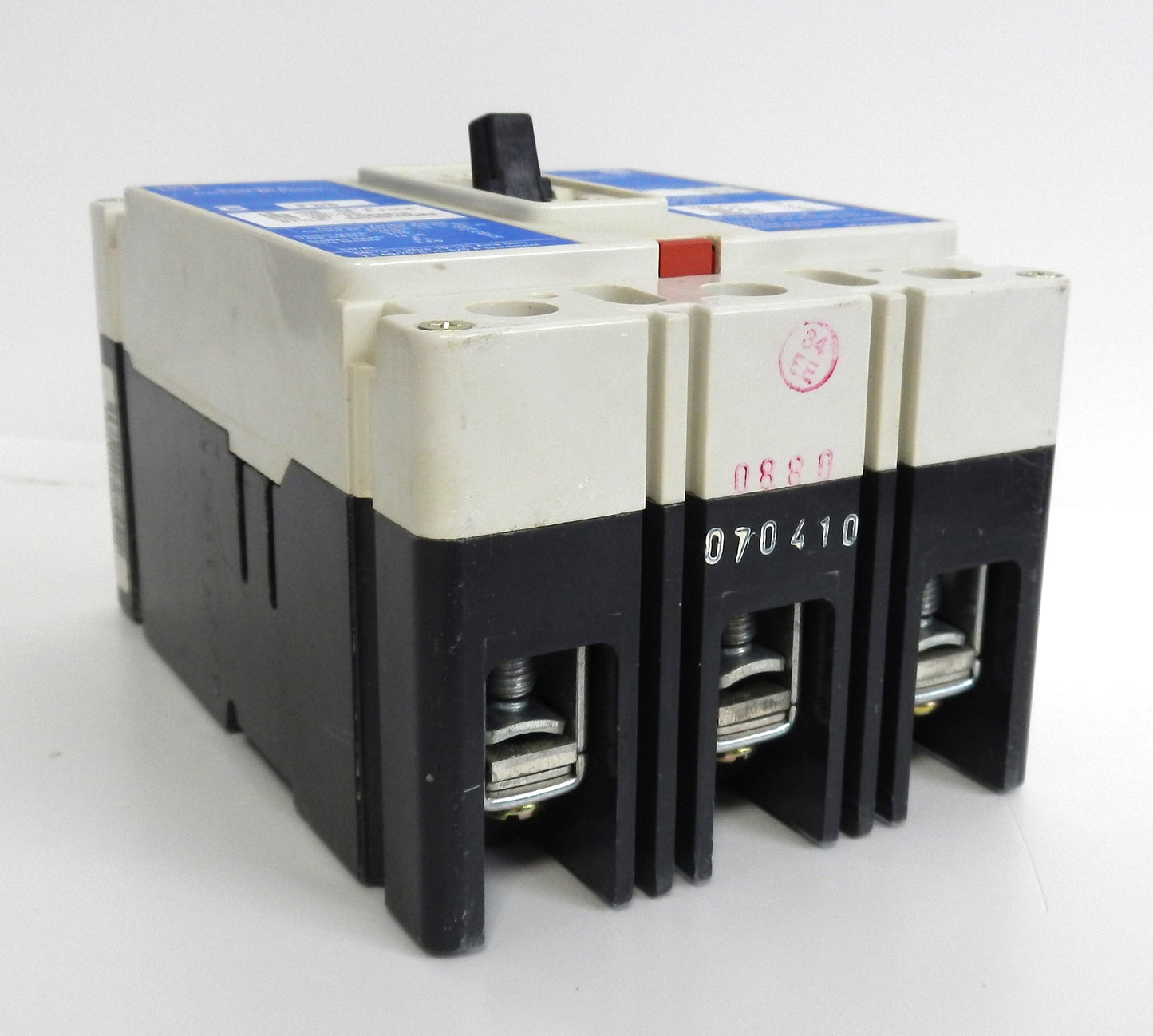

FDB3015 Cutler-Hammer Eaton Series C Molded Case Circuit Breaker 15A 3-Pole 600VAC F-Frame

Description:

• Genuine Cutler-Hammer / Eaton Series C molded case circuit breaker for industrial power distribution and equipment protection
• Provides 15 Amp, 3-pole overcurrent and short-circuit protection for three-phase electrical systems
• Thermal-magnetic trip unit with fixed long-time and instantaneous protection
• Rated for 600 VAC, 50/60 Hz and 250 VDC applications
• F-Frame molded case breaker with load-side pressure terminals
• Interrupting capacity of 18 kAIC @ 240 VAC and 14 kAIC @ 480 VAC
• Suitable for installation in panelboards, switchboards, motor control centers (MCCs), and industrial distribution systems
• UL Listed and engineered for reliable protection in demanding industrial environments
• Ideal for manufacturing facilities, OEM machinery, commercial buildings, and industrial automation systems.

Specifications:

• Manufacturer Name: Eaton (Cutler-Hammer)
• Part Number (MPN): FDB3015
• Product Series: Series C
• Product Type: Molded Case Circuit Breaker (MCCB)
• Frame Size: F-Frame
• Circuit Breaker Type: FDB
• Number of Poles: 3
• Current Rating: 15 A
• Rated AC Voltage: 600 VAC
• Rated DC Voltage: 250 VDC
• Frequency: 50/60 Hz
• Trip Unit: Fixed Thermal / Fixed Magnetic
• Protection Type: Thermal-Magnetic
• Interrupt Rating:
  • 18 kAIC @ 240 VAC
  • 14 kAIC @ 480 VAC
  • 10 kAIC @ 250 VDC
• Terminal Type: Load-Side Pressure Lugs
• Mounting Style: Bolt-On / Feed-Through
• Certifications:
  • UL Listed
  • CSA
• Applications:
  • Panelboards
  • Switchboards
  • Motor Control Centers
  • Industrial Distribution
  • OEM Equipment
  • Industrial Automation

Dimensions:

• Height: 6.00 in (152.4 mm)
• Width: 4.13 in (104.9 mm)
• Depth: 3.38 in (85.9 mm)

Weight:

• Approximate Weight: 2.04 kg (4.5 lb).
