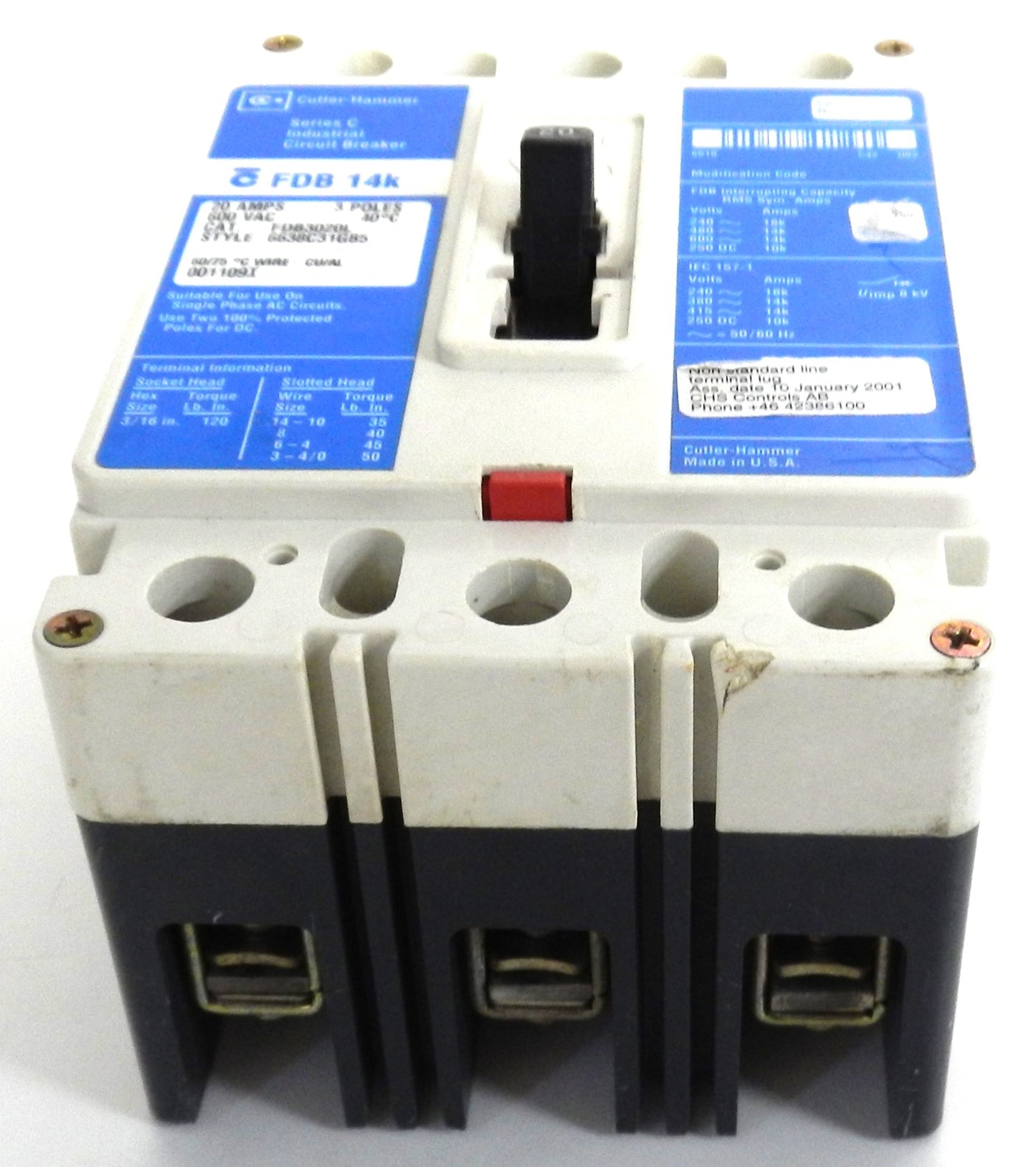

FDB3020L Cutler-Hammer Series C Molded Case Circuit Breaker 20A 3-Pole 600VAC Thermal Magnetic F-Frame

Description:

• Genuine Cutler-Hammer Series C molded case circuit breaker for commercial and industrial power distribution
• Rated 20 Amps with 3-pole protection for three-phase electrical systems
• Operates on 600 VAC and 250 VDC electrical systems
• Thermal-magnetic trip unit provides reliable overload and short-circuit protection
• Part of the Series C F-Frame FDB circuit breaker family
• Feed-through design with line and load terminals for secure field wiring
• Fixed thermal and fixed magnetic trip characteristics
• UL Listed and suitable for industrial control panels, switchgear, and OEM equipment
• Compatible with Eaton and legacy Westinghouse Series C F-Frame installations
• Ideal for motor control centers, panelboards, industrial machinery, HVAC systems, and power distribution.

Specifications:

• Manufacturer Name: Cutler-Hammer (Eaton)
• Part Number (MPN): FDB3020L
• Product Series: Series C
• Product Type: Molded Case Circuit Breaker
• Frame Size: F-Frame
• Breaker Type: FDB
• Number of Poles: 3
• Rated Current: 20 A
• Rated Voltage:
  • 600 VAC
  • 250 VDC
• Frequency: 50/60 Hz
• Trip Type: Thermal Magnetic (Fixed Thermal / Fixed Magnetic)
• Interrupting Rating:
  • 18 kAIC @ 240 VAC
  • 14 kAIC @ 480 VAC
• Connection Type: Feed-Through, Line & Load Terminals
• Mounting Type: Panel Mount
• Operating Temperature: 40°C Maximum Ambient
• Certifications: UL Listed
• Application: Industrial Power Distribution, Switchgear, Panelboards, Motor Control Centers, Industrial Control Panels, OEM Equipment.

Dimensions:

• Height: 6.0 in (152.4 mm)
• Width: 4.13 in (104.9 mm)
• Depth: 3.38 in (85.9 mm)

Weight:

• Approximate Weight: 5.0 lb (2.27 kg).
