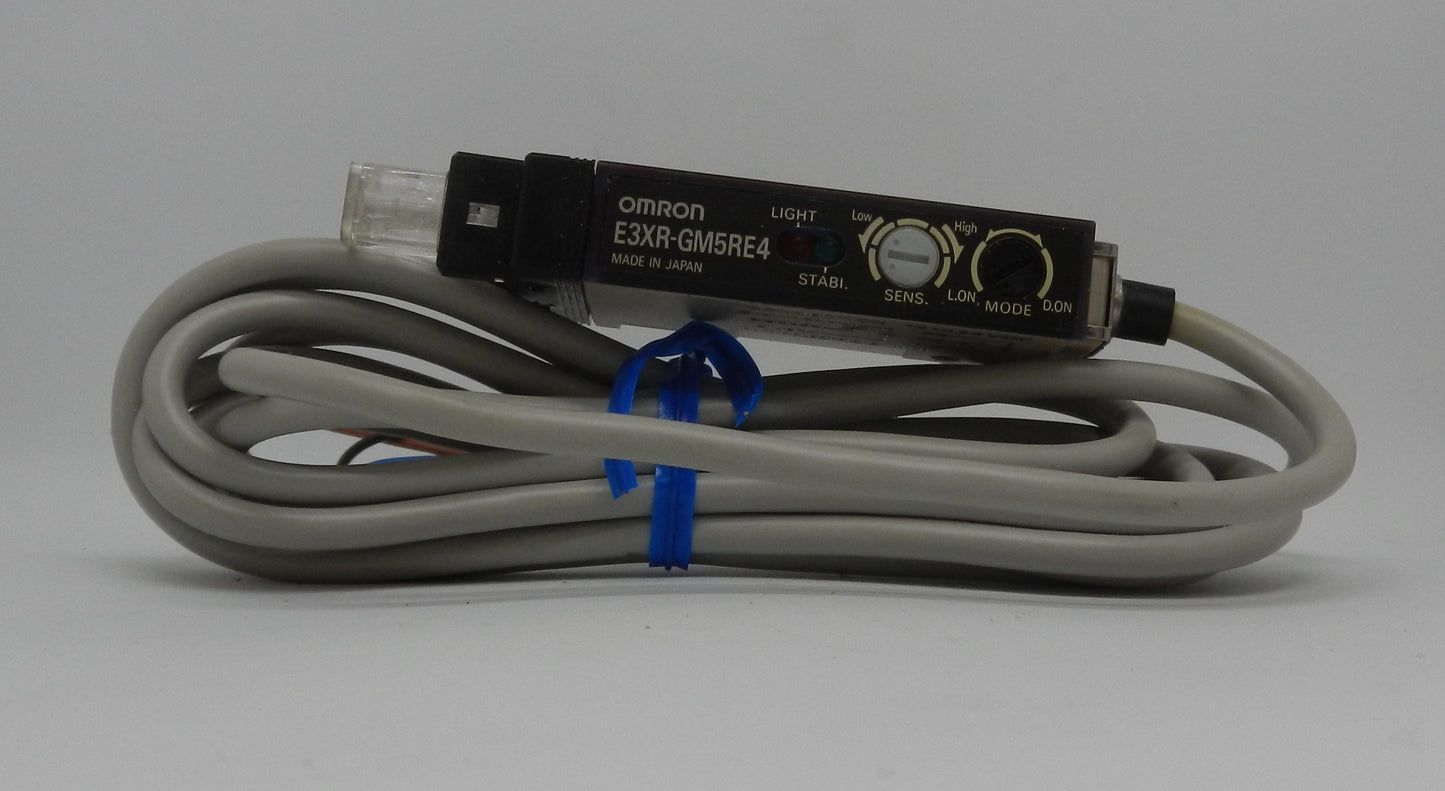

E3XR-GM5RE4 Omron Grooved Photoelectric Mark Sensor Red LED 660nm NPN 12-24VDC 2m Cable

Description:

• Genuine Omron grooved photoelectric mark sensor designed for high-speed registration mark detection in packaging and printing applications
• Features a 660 nm red LED light source optimized for detecting printed marks on transparent film and labels
• NPN open-collector transistor output for easy integration with PLCs and industrial control systems
• Operates on 12–24 VDC power with low current consumption
• 5 mm groove width provides precise detection of small registration marks
• Detects marks as small as 2 × 3 mm on transparent film
• Light-ON/Dark-ON selectable operation for flexible installation
• Four-turn sensitivity adjustment allows accurate setup for various materials and colors
• Factory-installed 2 m pre-wired cable simplifies installation
• Ideal for packaging machinery, label printing, web inspection, converting equipment, and industrial automation applications.

Specifications:

• Manufacturer Name: Omron
• Part Number (MPN): E3XR-GM5RE4
• Product Series: E3XR-GM
• Product Type: Grooved Photoelectric Mark Sensor
• Sensing Method: Through-Beam (Grooved)
• Groove Width: 5 mm
• Light Source: Red LED (660 nm)
• Operating Voltage: 12–24 VDC ±10%
• Ripple: 10% max. (P-P)
• Current Consumption: 40 mA max.
• Output Type: NPN Open-Collector Transistor
• Operation Mode: Light-ON / Dark-ON Selectable
• Detectable Mark Size: 2 × 3 mm minimum
• Sensitivity Adjustment: 4-Turn Potentiometer
• Response Time: 1 ms max.
• Protection Circuits:
  • Reverse Polarity Protection
  • Output Short-Circuit Protection
• Cable Length: 2 m (Pre-Wired)
• Degree of Protection: IP65
• Operating Temperature: -25°C to +55°C
• Storage Temperature: -25°C to +70°C
• Applications:
  • Packaging Machines
  • Label Detection
  • Registration Mark Detection
  • Printing Equipment
  • Film Processing
  • Industrial Automation
• Lifecycle Status: Discontinued by Manufacturer.

Dimensions:

• Groove Width: 5 mm
• Compact grooved sensor housing designed for installation on packaging and marking equipment.

Weight:

• Approximate Weight: 0.03 kg (0.07 lb).
