EATON

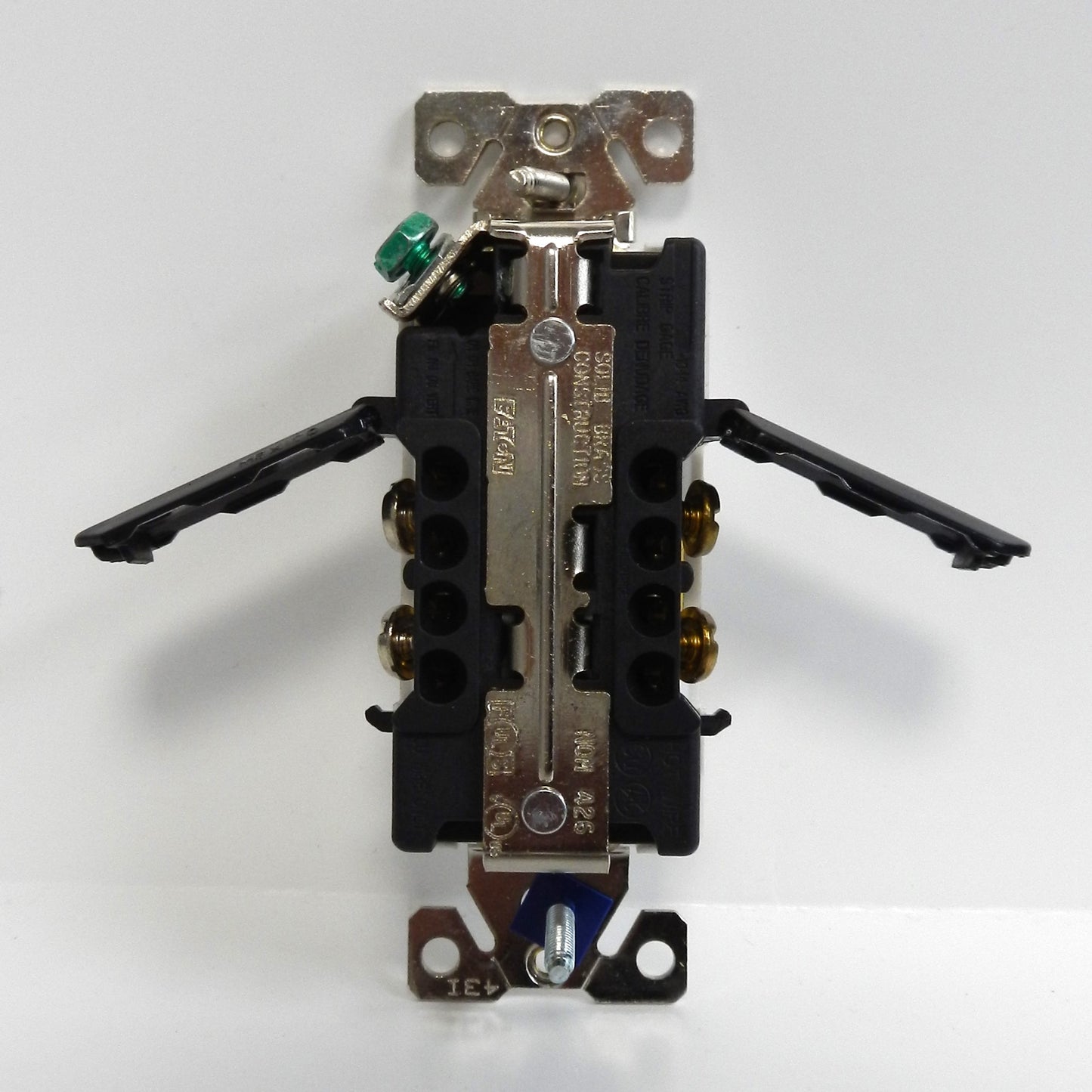

8262W Eaton Arrow Hart Hospital Grade Duplex Receptacle 15A 125V NEMA 5-15R White

$9.99 CAD

Sale Sold out

Style NEW

Description:

Genuine Eaton Arrow Hart extra heavy-duty hospital grade duplex receptacle for healthcare and commercial electrical applications
Rated 15 Amp, 125 Volt AC with NEMA 5-15R configuration
Hospital Grade construction meets stringent performance requirements for medical facilities and critical environments
Extra heavy-duty design provides superior plug retention and long service life
Back and side wiring allows flexible installation options
Auto-grounding feature simplifies installation in grounded metal electrical boxes
High-impact nylon face and durable construction resist chemicals, wear, and repeated plug insertions
Suitable for hospitals, clinics, laboratories, commercial buildings, schools, industrial facilities, and OEM equipment
Flush-mount duplex receptacle compatible with standard wall plates
Certified to UL 498, Federal Specification WC-596G, CSA, and NOM standards for hospital-grade receptacles.

Manufacturer Name: Eaton
Brand: Arrow Hart
Part Number (MPN): 8262W
Product Type: Hospital Grade Duplex Receptacle
Device Grade: Extra Heavy-Duty Hospital Grade
Receptacle Type: Duplex
Configuration: NEMA 5-15R
Number of Poles: 2
Number of Wires: 3
Rated Current: 15 A
Rated Voltage: 125 VAC
Frequency: 60 Hz
Grounding: Grounding
Wiring Method: Back Wire & Side Wire
Mounting Type: Flush Mount
Contact Material: Brass
Face Material: High-Impact Nylon
Strap Material: Nickel-Plated Brass
Terminal Wire Size: #14–10 AWG Copper or Copper-Clad Aluminum
Color: White
Operating Temperature: -20°C to +70°C
Certifications:
- UL 498 Listed
- Federal Specification WC-596G
- CSA Certified
- NOM Certified
Applications:
- Hospitals
- Healthcare Facilities
- Medical Equipment
- Commercial Buildings
- Industrial Control Panels
- Laboratories
- Institutional Facilities
