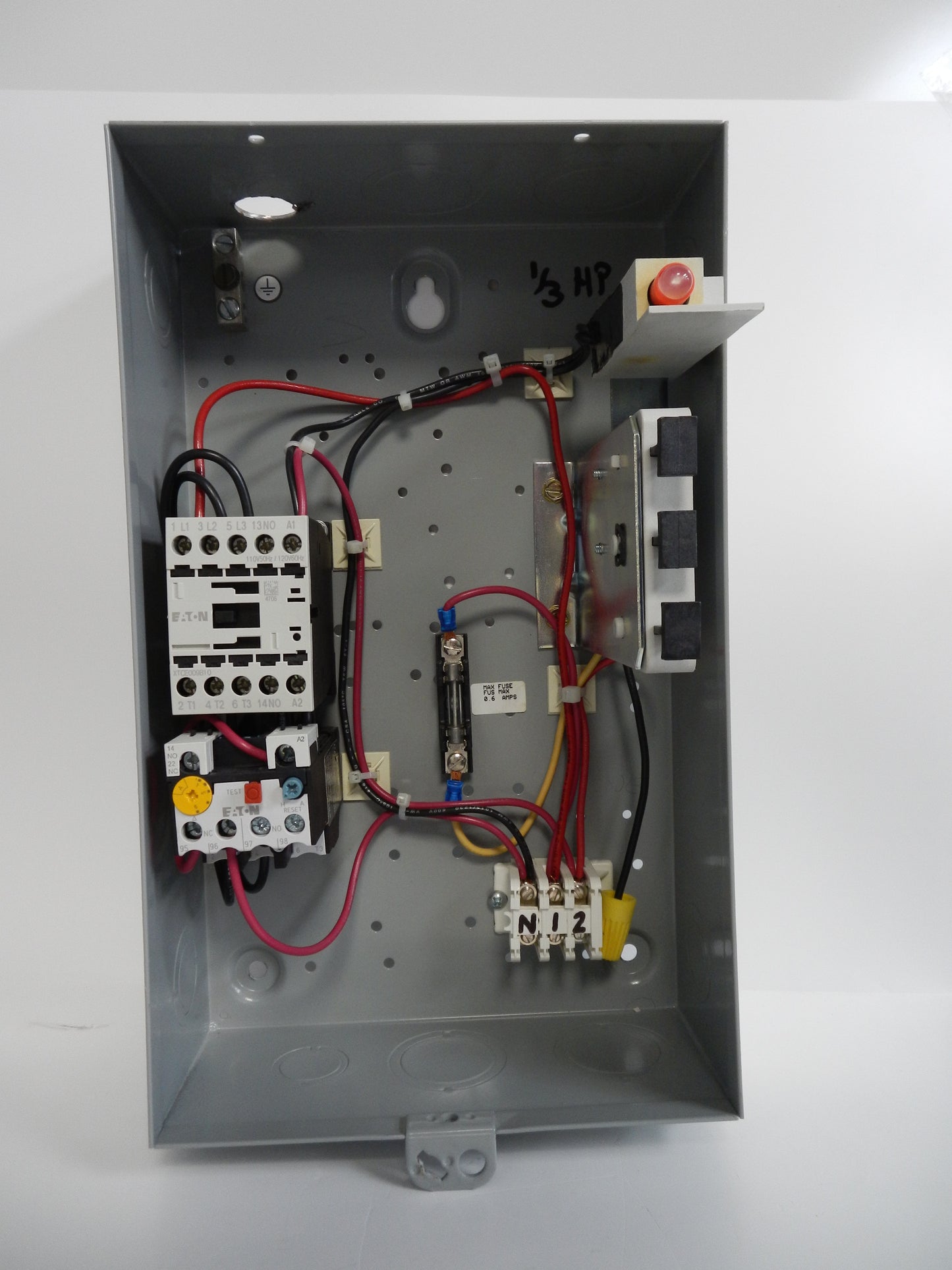

ECX09C1AJA-J Eaton XT Non-Combination Motor Controller 9A Non-Reversing NEMA 1 120VAC

Description:

• Genuine Eaton XT enclosed non-combination motor controller for industrial motor control applications
• Designed for full-voltage, non-reversing motor starting and stopping
• Rated at 9 Amps for reliable operation with three-phase motors
• 120 VAC, 60 Hz control circuit with factory-installed control components
• NEMA 1 / IP23 enclosure for indoor industrial installations
• Includes an XTOB bi-metallic overload relay with an adjustable overload range of 6–10 A
• Equipped with HAND/OFF/AUTO selector switch for convenient local operation
• Provides motor overload protection while allowing dependable control of pumps, fans, conveyors, compressors, and industrial machinery
• Surface-mount enclosure simplifies installation and maintenance
• Ideal for industrial automation, OEM equipment, HVAC systems, water treatment facilities, manufacturing plants, and machine control panels.

Specifications:

• Manufacturer Name: Eaton
• Part Number (MPN): ECX09C1AJA-J
• Product Series: XT IEC
• Product Type: Non-Combination Motor Controller
• Starter Type: Full Voltage, Non-Reversing
• Amperage Rating: 9 A
• Control Voltage: 120 VAC, 60 Hz
• Enclosure Rating: NEMA 1 / IP23
• Overload Relay Type: XTOB Bi-Metallic
• Adjustable Overload Range: 6–10 A
• Operator: HAND / OFF / AUTO Selector Switch
• Mounting Type: Surface Mount
• Phase: Three-Phase Motor Applications
• Certifications:
  • UL Listed
  • CSA Certified
• Applications:
  • Motor Control
  • Pumps
  • Fans
  • Compressors
  • Conveyors
  • Industrial Automation
  • HVAC Equipment
  • Manufacturing Machinery

Dimensions:

• Height: 7.15 in (182 mm)
• Width: 6.06 in (154 mm)
• Depth: 10.76 in (273 mm).

Weight:

• Approximate Weight: 13 lb (5.9 kg)
