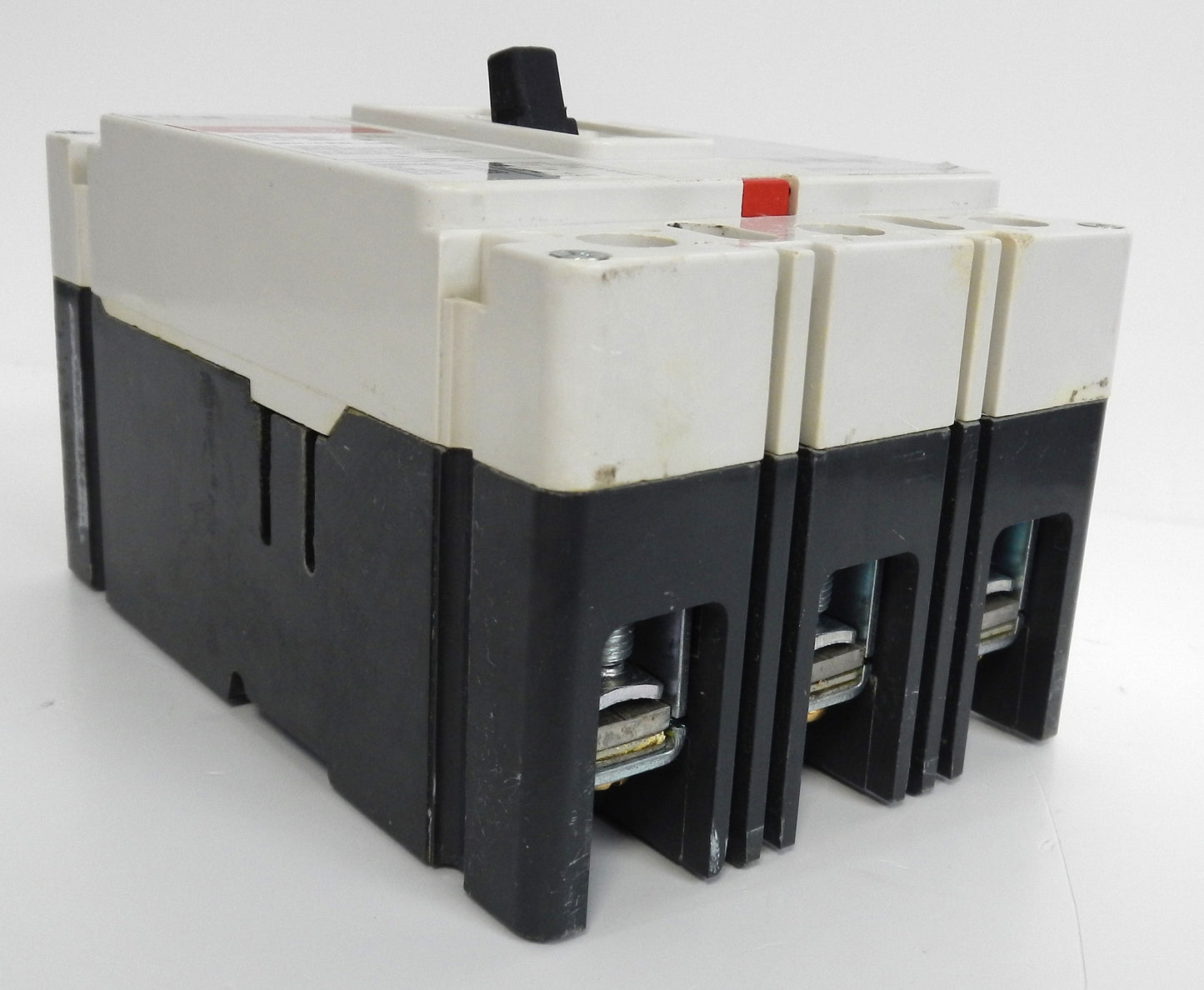

FDB3060L Eaton Series C Molded Case Circuit Breaker 60A 3-Pole 600VAC 250VDC F-Frame

Description:

• Genuine Eaton / Cutler-Hammer Series C molded case circuit breaker for industrial power distribution and equipment protection
• Rated at 60 Amps with a 3-pole configuration for three-phase electrical systems
• F-Frame thermal-magnetic circuit breaker with fixed thermal and fixed magnetic trip
• Rated for 600 VAC and 250 VDC applications
• 35 kAIC @ 480 VAC and 65 kAIC @ 240 VAC interrupting capacity for reliable fault protection
• Features line and load lug terminals for feed-through wiring
• Suitable for branch circuit protection, motor loads, panelboards, switchboards, and industrial control equipment
• UL Listed and engineered for dependable operation in commercial and industrial environments
• Ideal for manufacturing facilities, OEM equipment, power distribution systems, motor control centers, and electrical panels

Specifications:

• Manufacturer Name: Eaton
• Part Number (MPN): FDB3060L
• Product Series: Series C
• Product Type: Molded Case Circuit Breaker (MCCB)
• Frame Size: F-Frame
• Number of Poles: 3
• Rated Current: 60 A
• Rated Voltage:
  • 600 VAC
  • 250 VDC
• Frequency: 50/60 Hz
• Trip Unit:
  • Fixed Thermal
  • Fixed Magnetic
• Interrupting Rating:
  • 65 kAIC @ 240 VAC
  • 35 kAIC @ 480 VAC
• Terminal Type: Line and Load Lugs
• Connection Type: Feed-Through
• Protection Type: Thermal-Magnetic
• Certifications:
  • UL Listed
• Applications:
  • Industrial Power Distribution
  • Motor Protection
  • Distribution Panels
  • Switchboards
  • Control Panels
  • OEM Equipment
  • Commercial Electrical Systems

Dimensions:

• Height: 6.0 in (152.4 mm)
• Width: 4.13 in (104.9 mm)
• Depth: 3.38 in (85.9 mm)

Weight:

• Approximate Weight: 4.5 lb (2.04 kg).
