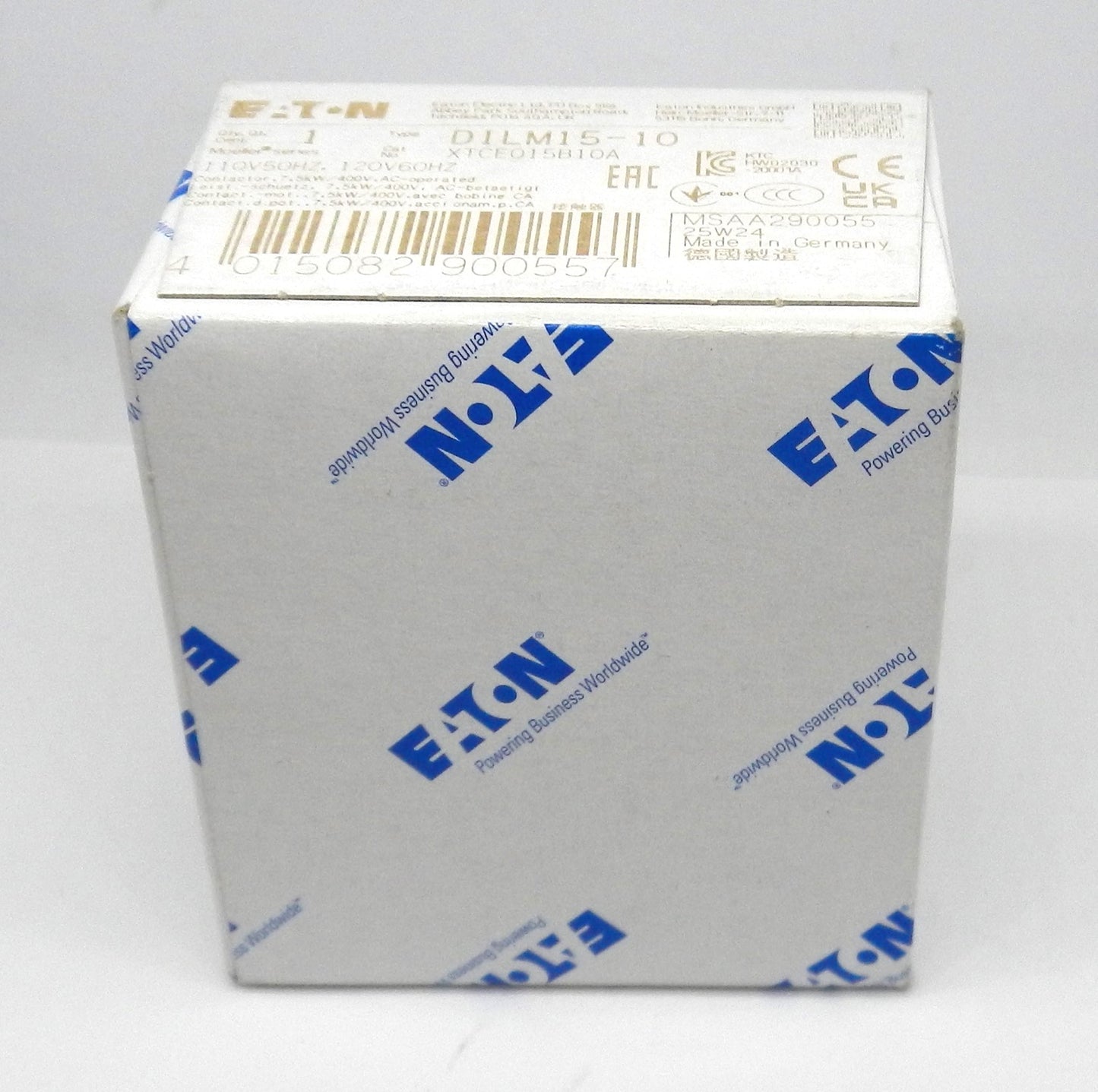

XTCE015B10A Eaton XT IEC Contactor 3-Pole 15A 120V AC Coil 1NO Auxiliary Screw Terminal

Description:

• Genuine Eaton XT IEC non-reversing contactor designed for industrial motor control and automation applications
• Rated for 15A AC-3 motor loads with a 120 VAC (60 Hz) / 110 VAC (50 Hz) control coil
• 3-pole (3 NO) main contacts with 1 Normally Open (1 NO) built-in auxiliary contact
• Compact 45 mm frame saves panel space while providing reliable switching performance
• Screw terminal connections ensure secure, vibration-resistant wiring
• Suitable for full-voltage non-reversing motor starting applications
• DIN rail or panel mount installation for flexible integration into control panels
• UL Listed, CSA Certified, CE Marked, and IEC 60947 compliant
• Ideal for motor starters, pumps, compressors, conveyors, HVAC systems, packaging machinery, and industrial automation
• Manufactured by Eaton for dependable industrial motor control.

Specifications:

• Manufacturer Name: Eaton
• Part Number (MPN): XTCE015B10A
• Product Series: XT IEC
• Product Type: IEC Magnetic Contactor
• Contactor Type: Full Voltage Non-Reversing (FVNR)
• Number of Poles: 3
• Main Contacts: 3 NO
• Auxiliary Contacts: 1 NO
• Rated Operational Current (AC-3): 15 A
• Coil Voltage:
  • 110 VAC, 50 Hz
  • 120 VAC, 60 Hz
• Frequency: 50/60 Hz
• Frame Size: 45 mm
• Connection Type: Screw Terminals
• Horsepower Rating:
  • 1 HP @ 115V, 1-Phase
  • 2 HP @ 200V, 3-Phase
  • 3 HP @ 230V, 3-Phase
  • 5 HP @ 460V, 3-Phase
  • 10 HP @ 575V, 3-Phase
• Mounting Type: DIN Rail or Panel Mount
• Certifications: UL Listed, CSA Certified, CE, IEC 60947, EN 60947, RoHS Compliant
• Application: Motor Starters, Pumps, Compressors, Conveyors, HVAC Equipment, Industrial Machinery, OEM Equipment, Industrial Automation.

Dimensions:

• Width: 45 mm (1.77 in)
• Height: Approximately 77 mm (3.03 in)
• Depth: Approximately 86 mm (3.39 in)

Weight:

• Approximate Weight: 0.30 lb (0.14 kg).
