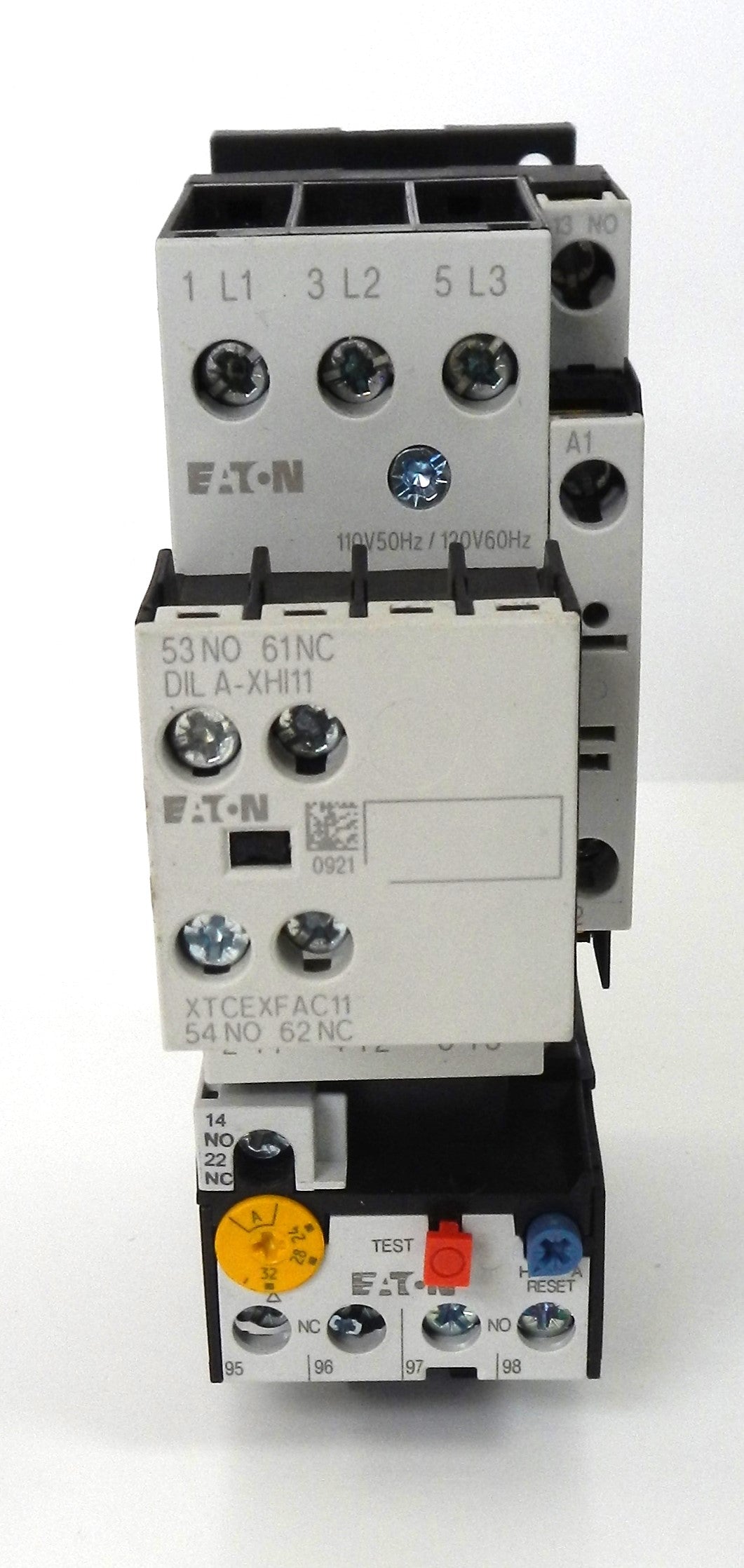

Eaton XTCE032C10 + XTOB032CC1 + XTCEXFAC11 IEC Motor Starter 32A Contactor Overload Relay Auxiliary Contact

Description:

• Genuine Eaton XT IEC motor starter assembly including:
  • XTCE032C10 IEC Contactor
  • XTOB032CC1 Thermal Overload Relay
  • XTCEXFAC11 Front-Mounted Auxiliary Contact Block
• Complete motor control solution for industrial motor starting and overload protection
• XTCE032C10 features a 32A, 3-pole non-reversing contactor with 1 Normally Open (1NO) built-in auxiliary contact and screw terminals.
• XTOB032CC1 thermal overload relay provides an adjustable 24–32A overload range with Trip Class 10, 1NO + 1NC auxiliary contacts, and direct mounting to compatible XT contactors.
• XTCEXFAC11 front-mounted auxiliary contact block adds 1 Normally Open (1NO) + 1 Normally Closed (1NC) auxiliary contacts for additional control and signaling functions.
• Modular design allows fast assembly and simplified maintenance
• Screw terminal connections provide secure field wiring
• Ideal for motor control panels, conveyors, pumps, compressors, HVAC systems, machine tools, and OEM equipment
• Designed for industrial automation, manufacturing, and electrical control applications

Specifications:

XTCE032C10 IEC Contactor

• Manufacturer: Eaton
• Part Number: XTCE032C10
• Product Series: XT IEC
• Product Type: IEC Magnetic Contactor
• Rated Operational Current: 32 A
• Number of Poles: 3
• Operation: Full Voltage Non-Reversing (FVNR)
• Built-In Auxiliary Contact: 1 NO
• Frame Size: 45 mm
• Terminal Type: Screw Terminals
• Mounting: DIN Rail / Panel Mount
• Certifications:
  • UL Listed
  • CSA Certified
  • CE
  • IEC 60947
  • EN 60947

XTOB032CC1 Thermal Overload Relay

• Manufacturer: Eaton
• Part Number: XTOB032CC1
• Product Type: Bimetal Thermal Overload Relay
• Adjustable Current Range: 24–32 A
• Trip Class: 10
• Auxiliary Contacts: 1 NO + 1 NC
• Mounting: Direct Mount to XTCE Contactor
• Compatible Contactor Range: 25–32 A XT IEC Contactors

XTCEXFAC11 Auxiliary Contact Block

• Manufacturer: Eaton
• Part Number: XTCEXFAC11
• Product Type: Front-Mounted Auxiliary Contact Block
• Contact Configuration: 1 NO + 1 NC
• Mounting Position: Front Mount
• Compatible With: XTCE007B through XTCE032C IEC Contactors

Applications

• Motor Starters
• Industrial Automation
• Motor Control Centers (MCC)
• Pumps
• Compressors
• Conveyors
• HVAC Equipment
• Packaging Machinery
• OEM Equipment
• Industrial Control Panels

Dimensions:

• Contactor Frame Size: 45 mm
• Modular assembly designed for compact DIN rail or panel-mounted motor control systems.

Weight:

• Approximate Combined Weight: 0.73 kg (1.60 lb).
