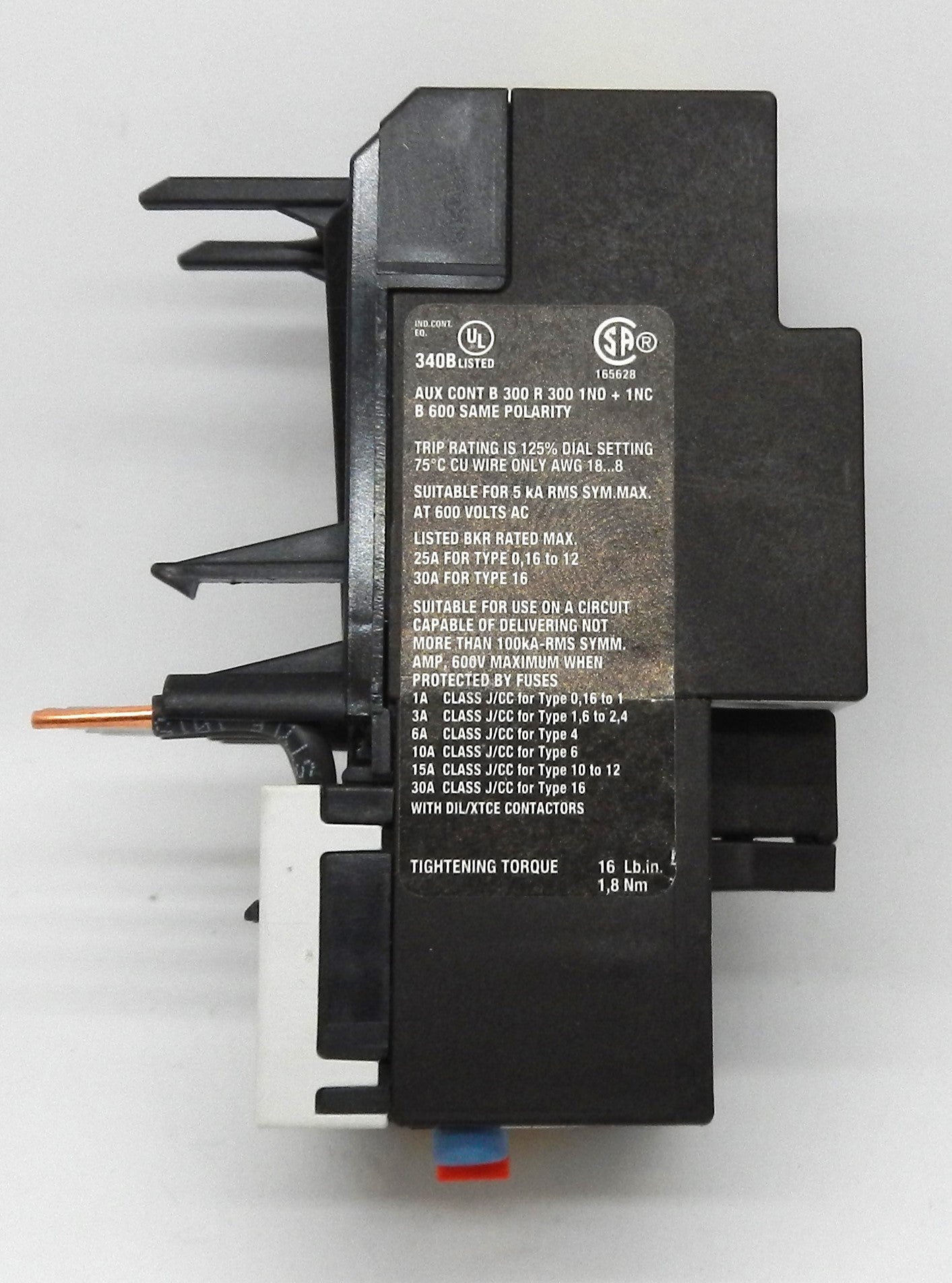

XTOB006BC1 Eaton XT IEC Bimetallic Overload Relay 4-6A Class 10A 1NO+1NC

Description:

• Genuine Eaton XT Series IEC bimetallic overload relay for reliable motor overload protection
• Adjustable 4–6 Amp current setting for precise motor protection
• Class 10A trip characteristic provides dependable overload protection for standard motor starting applications
• Features 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts
• Designed for direct mounting to compatible XTCE Frame B (7–15A) contactors
• Selectable manual or automatic reset after overload trip
• Temperature-compensated bimetallic design ensures consistent protection under varying ambient conditions
• Suitable for protection of three-phase AC motors and industrial motor control circuits
• Ideal for industrial automation, OEM machinery, conveyors, pumps, compressors, HVAC systems, and manufacturing equipment
• UL Listed, CSA Certified, CE Marked, ATEX and RoHS compliant.

Specifications:

• Manufacturer Name: Eaton
• Part Number (MPN): XTOB006BC1
• Product Series: XT IEC
• Product Type: Bimetallic Overload Relay
• Overload Adjustment Range: 4–6 A
• Trip Class: 10A
• Auxiliary Contacts:
  • 1 Normally Open (NO)
  • 1 Normally Closed (NC)
• Mounting Type: Direct to Contactor
• Compatible Contactors: XTCE Frame B (7–15A)
• Frame Size: 45 mm
• Reset Type:
  • Manual
  • Automatic
• Standards:
  • IEC 60947
  • EN 60947
  • UL Listed
  • CSA Certified
• Certifications:
  • CE
  • RoHS
  • ATEX
• Operating Temperature: -25°C to +55°C
• Degree of Protection: IP20
• Applications:
  • Motor Protection
  • Industrial Automation
  • Motor Starters
  • Pump Control
  • HVAC Systems
  • Conveyor Systems
  • OEM Machinery
  • Manufacturing Equipment

Dimensions:

• Length: 83 mm (3.27 in)
• Width: 45 mm (1.77 in)
• Height: 48 mm (1.89 in).

Weight:

• Approximate Weight: 0.32 kg (0.70 lb).
