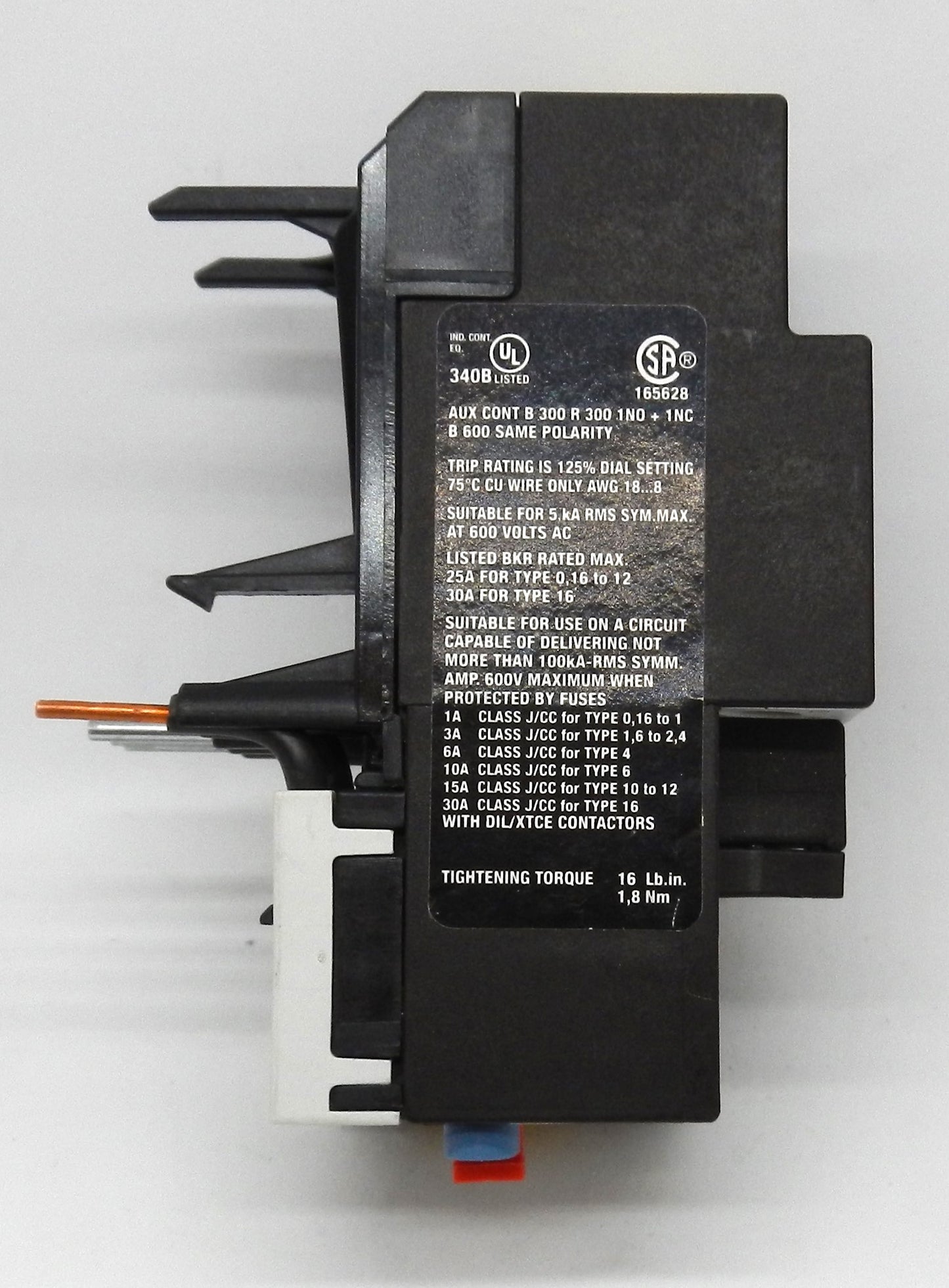

XTOB010BC1 Eaton XT IEC Bimetallic Overload Relay 6-10A Class 10 Direct Mount 1NO+1NC

Description:

• Genuine Eaton XT Series IEC bimetallic overload relay for industrial motor protection
• Adjustable 6–10 Amp current setting for accurate motor overload protection
• Class 10 tripping characteristic provides reliable protection against overloads and phase loss
• Features 1 Normally Open (1NO) and 1 Normally Closed (1NC) auxiliary contacts
• Designed for direct mounting to compatible Eaton XT contactors
• Compatible with 7–15A Frame B XT contactors
• Bimetallic thermal overload design with automatic temperature compensation
• Manual and automatic reset capability for flexible operation
• Helps protect three-phase motors against overload, phase imbalance, and phase failure
• Ideal for motor starters, conveyors, pumps, compressors, HVAC systems, industrial machinery, OEM equipment, and control panels.

Specifications:

• Manufacturer Name: Eaton
• Part Number (MPN): XTOB010BC1
• Product Series: XT IEC
• Product Type: Bimetallic Overload Relay
• Adjustable Current Range: 6–10 A
• Trip Class: Class 10
• Frame Size: 45 mm (Frame B)
• Auxiliary Contacts:
  • 1 Normally Open (1NO)
  • 1 Normally Closed (1NC)
• Mounting Type: Direct Mount to Contactor
• Compatible Contactors: Eaton XT 7–15A
• Reset Type: Manual / Automatic
• Protection Functions:
  • Motor Overload Protection
  • Phase Failure Protection
  • Phase Imbalance Protection
• Standards:
  • UL Listed
  • CSA Certified
  • IEC 60947
  • EN 60947
  • CE Marked
  • RoHS Compliant
  • ATEX Compliant
• Applications:
  • Motor Starters
  • Industrial Automation
  • Motor Control Centers
  • HVAC Equipment
  • Pumps
  • Compressors
  • Conveyors
  • OEM Machinery

Dimensions:

• Length: 83 mm (3.27 in)
• Width: 45 mm (1.77 in)
• Height: 48 mm (1.89 in)

Weight:

• Approximate Weight: 0.32 kg (0.70 lb).
