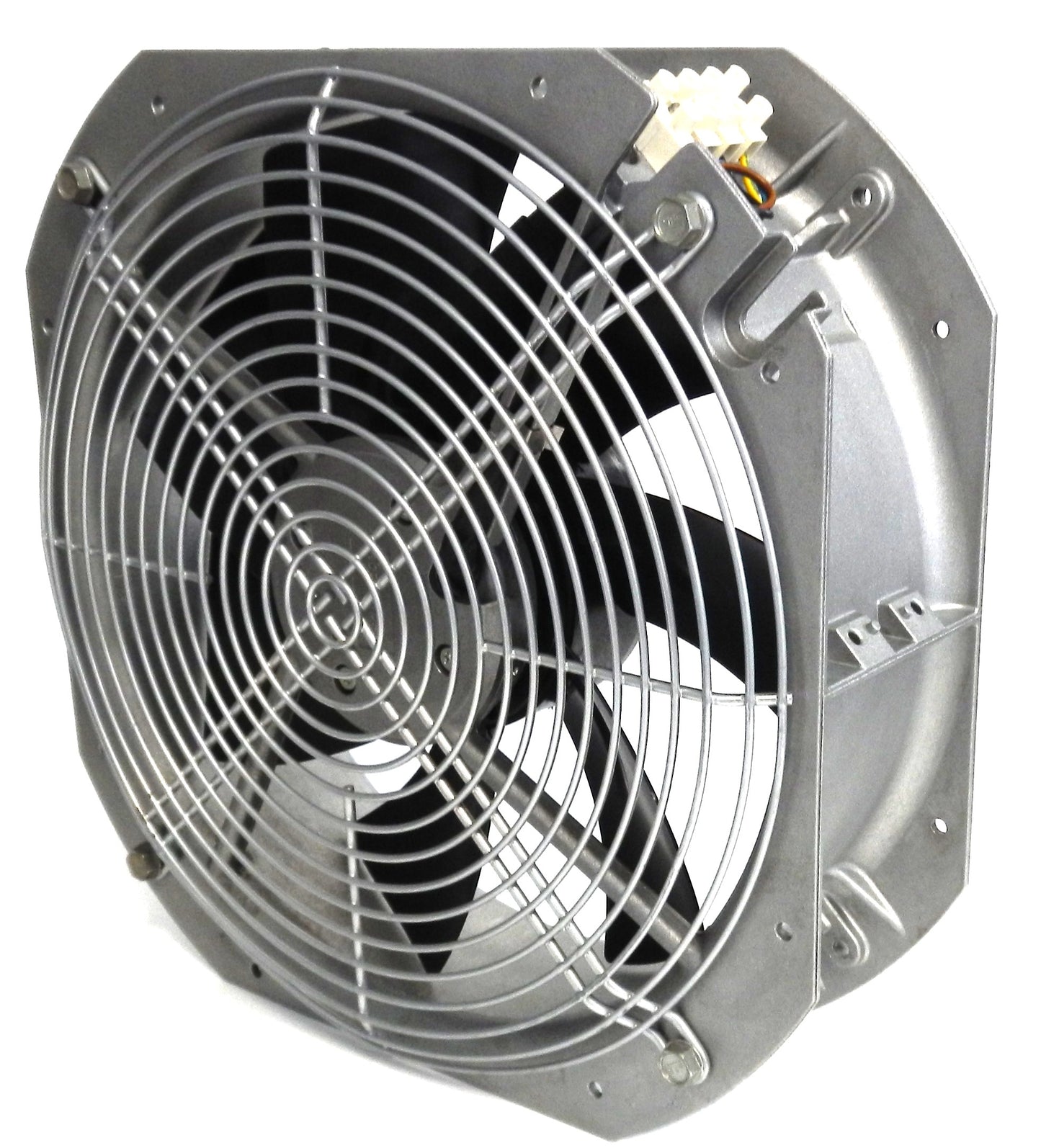

W2D250-HH14-09 ebm-papst AC Axial Fan with Wall Ring 250mm 400/460VAC 3-Phase IP44

Description:

• Genuine ebm-papst AC axial fan with integrated wall ring for industrial ventilation and cooling applications
• 250 mm tubeaxial fan with high-efficiency sickle-blade impeller for superior airflow
• Operates on 400/460 VAC, 3-phase AC power
• Ball bearing motor provides long service life and low-maintenance operation
• Rugged IP44-rated construction for demanding industrial environments
• Integrated wall ring optimizes airflow and simplifies installation
• Terminal block connection for secure industrial wiring
• Continuous-duty S1 operation for reliable performance in HVAC and OEM equipment
• Ideal for air handling units, condensers, ventilation systems, electrical enclosures, machine cooling, spray booths, and industrial process ventilation
• Manufactured by ebm-papst, a global leader in industrial air movement solutions.

Specifications:

• Manufacturer Name: ebm-papst
• Part Number (MPN): W2D250-HH14-09
• Product Series: W2D250
• Product Type: AC Axial Fan with Wall Ring
• Fan Type: Tubeaxial
• Fan Diameter: 250 mm
• Motor Type: AC Induction Motor
• Supply Voltage: 400/460 VAC
• Input Phase: 3-Phase
• Frequency: 50/60 Hz
• Speed:
  • 2465 RPM @ 50 Hz
  • 2800 RPM @ 60 Hz
• Power Consumption:
  • 110 W @ 50 Hz
  • 145–175 W @ 60 Hz
• Current Draw:
  • 0.20 A @ 400V 50 Hz
  • 0.23–0.24 A @ 400/460V 60 Hz
• Maximum Static Pressure: 120 Pa
• Bearing Type: Ball Bearing
• Blade Material: Steel
• Frame Material: Aluminum
• Connection Type: Terminal Block
• Protection Rating: IP44
• Operating Temperature: -25°C to +60°C (up to +85°C at specific 50 Hz operating conditions)
• Certifications: CE, UL, CSA, CCC, EAC, RoHS
• Application: HVAC Systems, Industrial Ventilation, Electrical Enclosures, Condensers, Machine Cooling, Air Handling Units, OEM Equipment.

Dimensions:

• Fan Size: 320 × 320 mm
• Fan Diameter: 250 mm
• Depth: 90.2 mm

Weight:

• Approximate Weight: 2.6 kg (5.7 lb).
