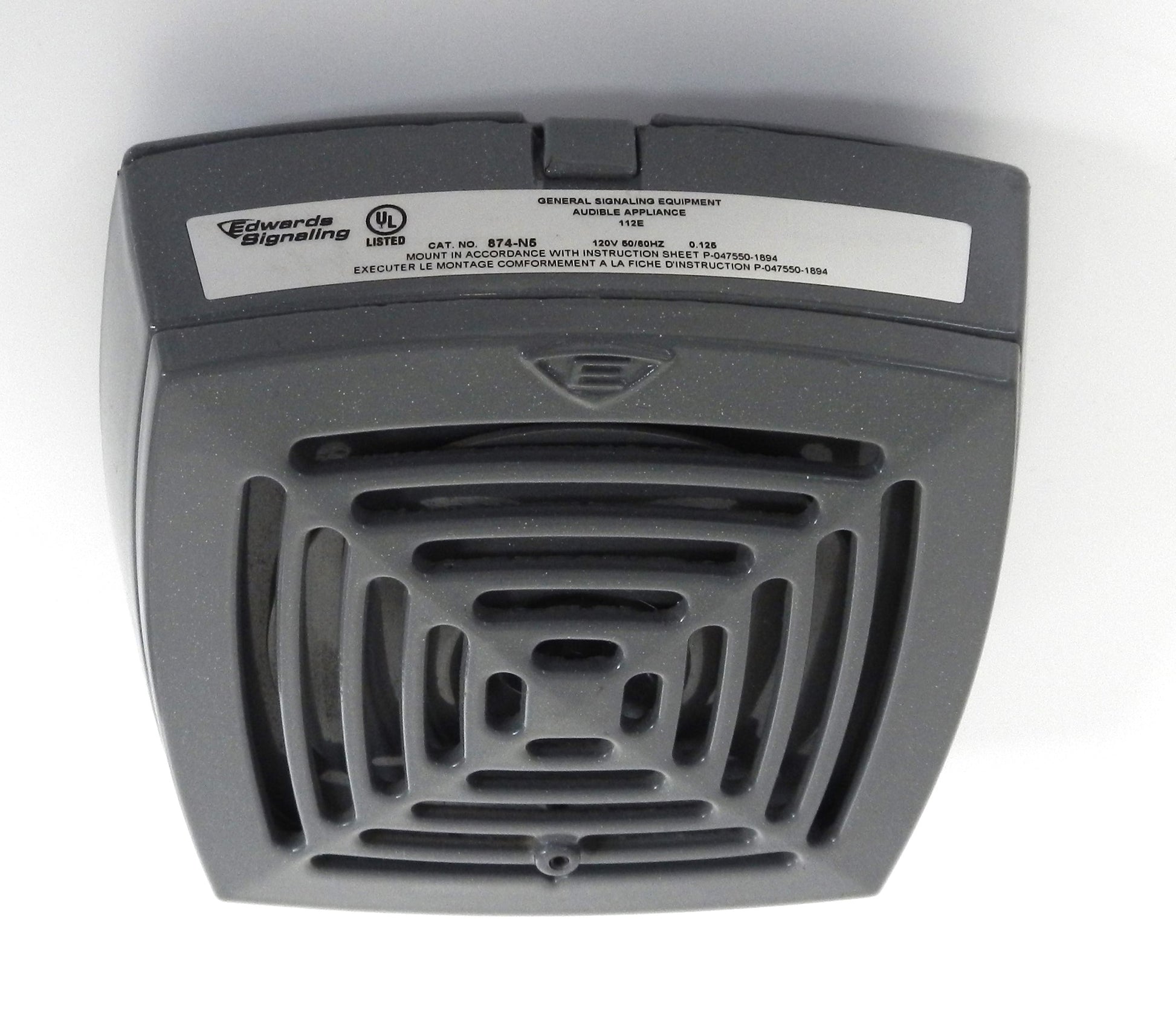

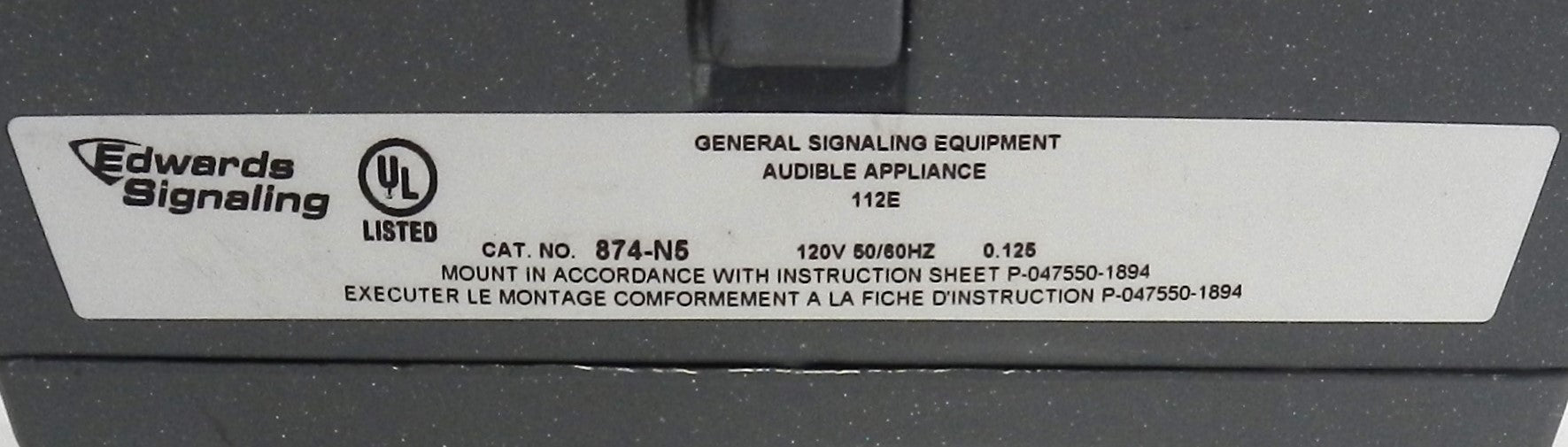

874-N5 Edwards Signaling 120VAC Vibrating Horn 103 dB Heavy-Duty Indoor Surface Mount

Description:

• Genuine Edwards Signaling heavy-duty vibrating horn for industrial and commercial audible alarm applications
• Operates on 120 VAC, 50/60 Hz with a low current draw of approximately 0.13 A
• Produces a powerful continuous horn tone with an adjustable sound output up to 103 dB at 10 ft (113 dB at 1 m)
• Designed for indoor surface-mount installation with included Adaptaplate® mounting plate for quick plug-in installation
• Heavy-duty die-cast housing with corrosion-resistant finish for long service life
• Adjustable volume control allows sound level customization for various environments
• Suitable for equipment malfunction alerts, evacuation alarms, security warnings, paging, and industrial notification systems
• UL Listed and FM Approved for dependable industrial performance
• Ideal for manufacturing facilities, warehouses, commercial buildings, machine rooms, and industrial automation systems.

Specifications:

• Manufacturer Name: Edwards Signaling
• Part Number (MPN): 874-N5
• Product Series: 874 Series (AdaptaHorn®)
• Product Type: Vibrating Horn
• Operating Voltage: 120 VAC
• Frequency: 50/60 Hz
• Operating Current: 0.13 A
• Power Consumption: 15.6 VA
• Sound Type: Continuous Horn
• Sound Output:
  • 103 dB @ 10 ft (3 m)
  • 113 dB @ 1 m
• Mounting Type: Surface Mount
• Connection Type: Plug-In (Adaptaplate®)
• Housing Material: Heavy-Duty Die-Cast Metal
• Finish: Corrosion-Resistant Gray
• Duty Cycle: 400 Hours @ 50% Duty Cycle
• Operating Voltage Range: -20% to +10% of Nominal Voltage
• Approvals:
  • UL Listed
  • FM Approved
• Applications:
  • Industrial Alarm Systems
  • Equipment Fault Notification
  • Machine Alarms
  • Security Warning Systems
  • Commercial Buildings
  • Manufacturing Facilities
  • Warehouses

Dimensions:

• Height: 5.0 in (127 mm)
• Width: 5.0 in (127 mm)
• Depth: 2-1/8 in (54 mm)

Weight:

• Approximate Weight: 1.20 kg (2.65 lb).
