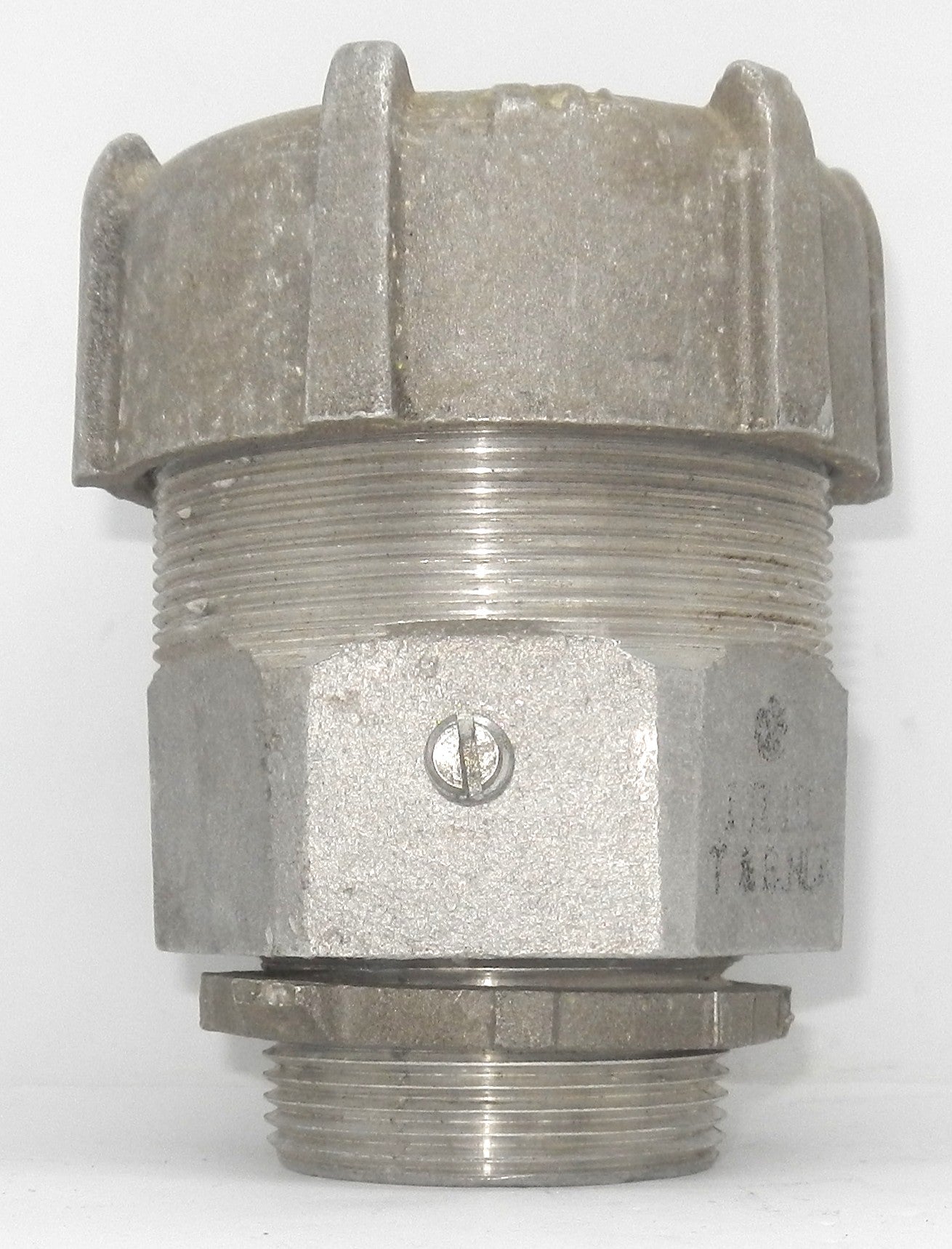

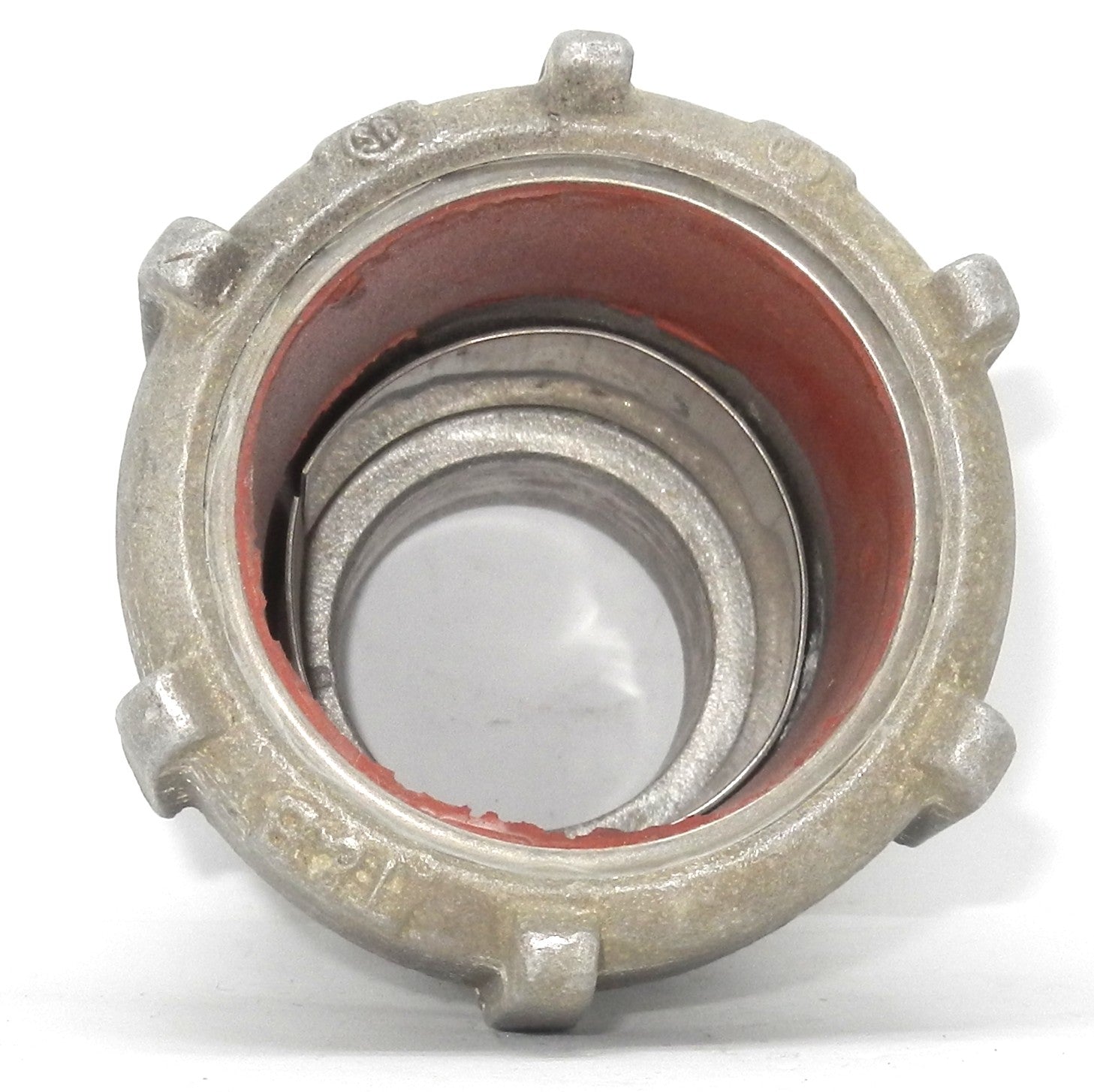

10470 Thomas & Betts T&B Star Teck 1-1/4" Watertight TECK Cable Connector 1.375-1.625"

Description:

• Genuine Thomas & Betts (T&B) electrical cable connector for industrial TECK cable installations
• Catalog number 10470
• 1-1/4 inch trade / hub size
• Designed for cable jacket outside diameters from 1.375 to 1.625 inches
• 1.187 inch throat diameter
• Watertight construction helps provide a secure cable entry in demanding industrial environments
• Constructed from durable malleable iron
• Suitable for TECK / ACWU cable applications
• Designed for use in hazardous-location applications where permitted
• Straight connector configuration with male NPT thread
• Suitable for industrial electrical installations, control panels, machinery, manufacturing facilities, and commercial electrical systems
• UL and CSA approved.

Specifications:

• Manufacturer Name: Thomas & Betts (T&B / ABB)
• Part Number (MPN): 10470
• Product Family: Star Teck / T&B Fittings
• Product Type: Watertight TECK Cable Connector
• Connector Style: Straight
• Trade Size: 1-1/4 in
• Hub Size: 1-1/4 in
• Hub Type: Male NPT Thread
• Cable Jacket Range: 1.375–1.625 in
• Cable Opening Range: 1-3/8–1-5/8 in
• Throat Diameter: 1.187 in
• Cable Type: TECK / ACWU
• Material: Malleable Iron
• Construction: Metallic
• Feature: Watertight
• Finish: PVC Coated
• Grounding: No
• Insulated Throat: No
• Jacketed: Yes
• Application: Hazardous Location / Industrial Cable Connection
• Approvals:
  • UL
  • CSA
• UNSPSC: 39121420
• Made in Canada: Yes.

Dimensions:

• Cable Range: 1.375–1.625 in (34.9–41.3 mm)
• Throat Diameter: 1.187 in (30.1 mm)
• Hub Size: 1-1/4 in.

Weight:

• Net Weight: Approximately 1.255 lb (0.57 kg).
