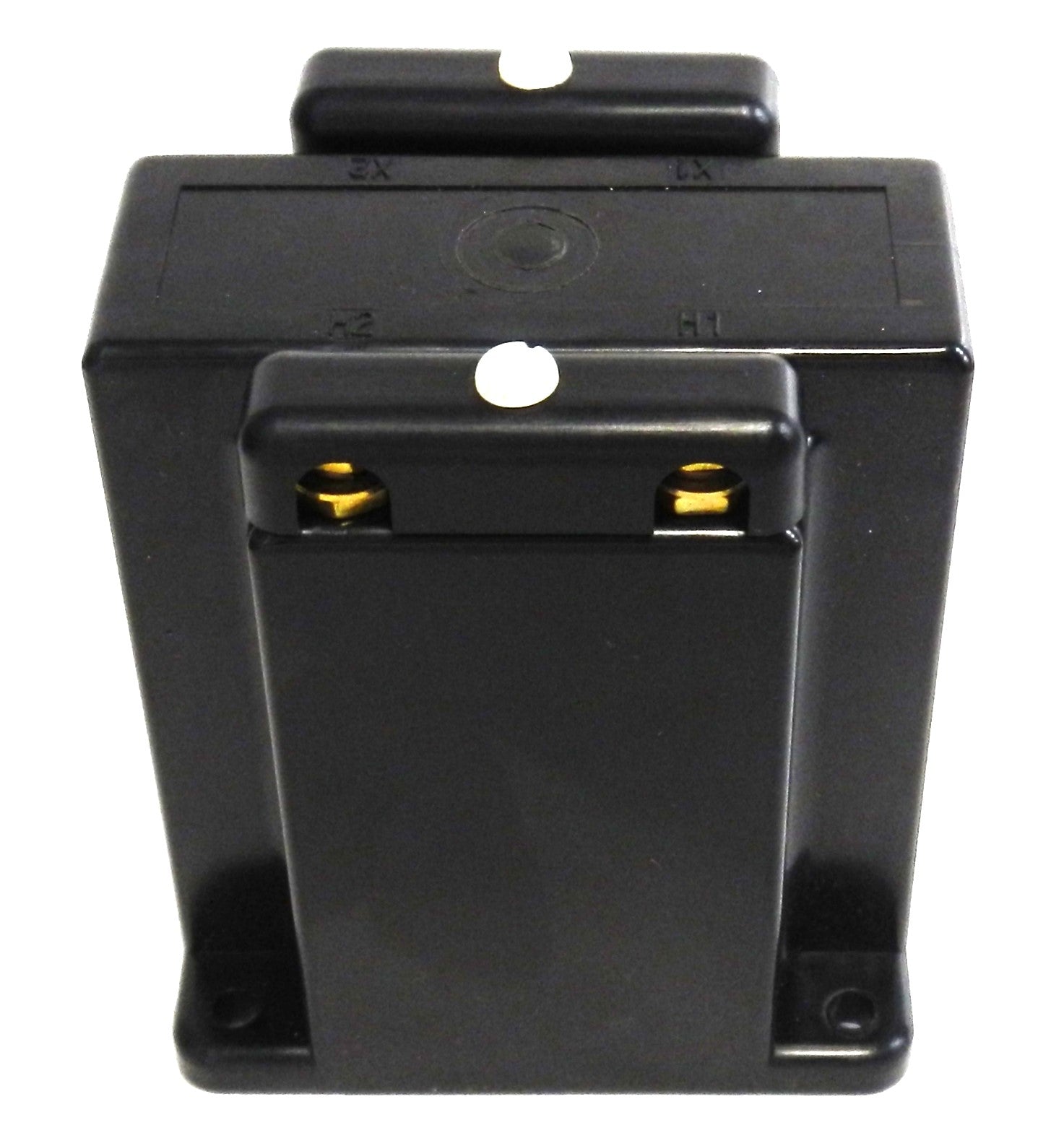

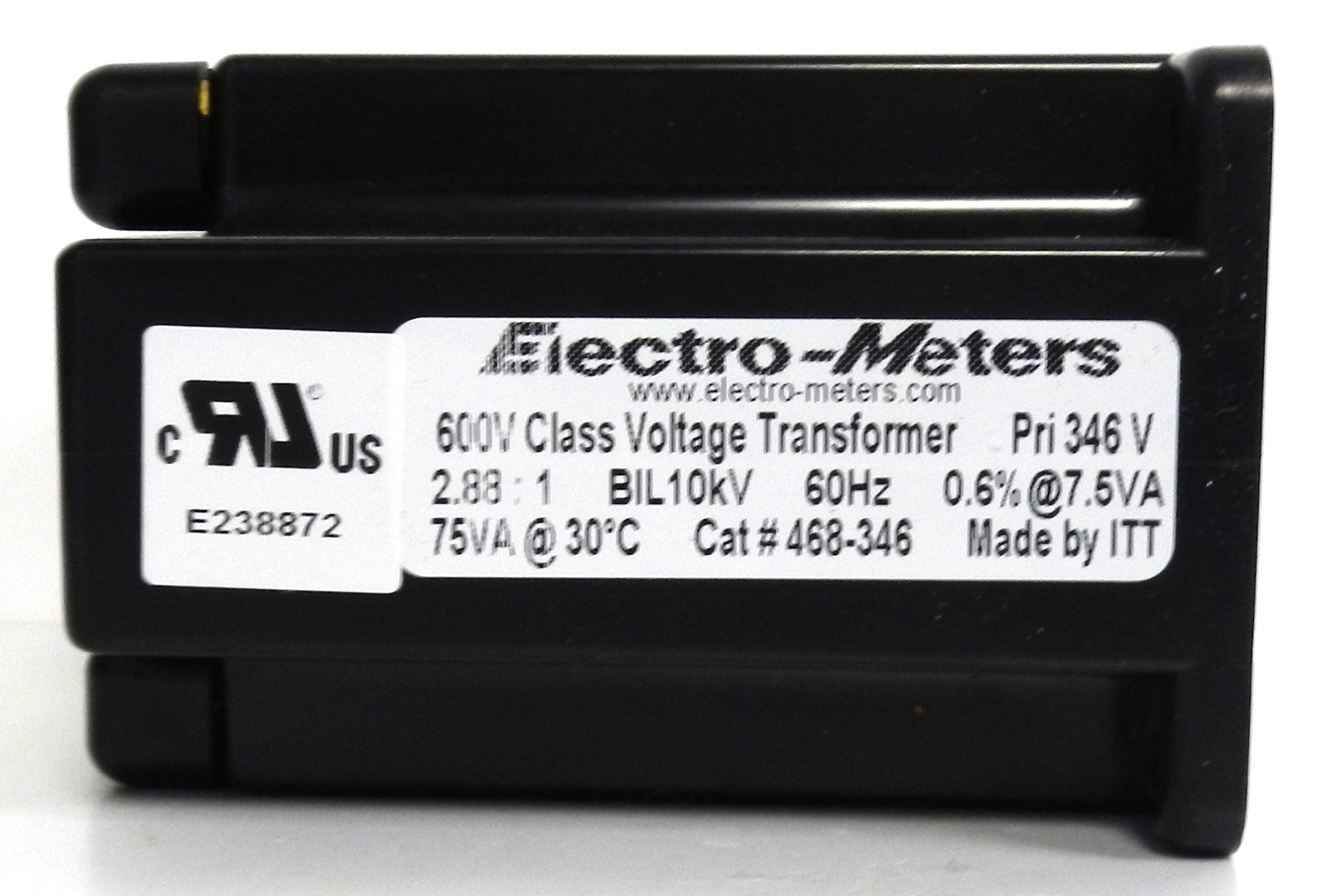

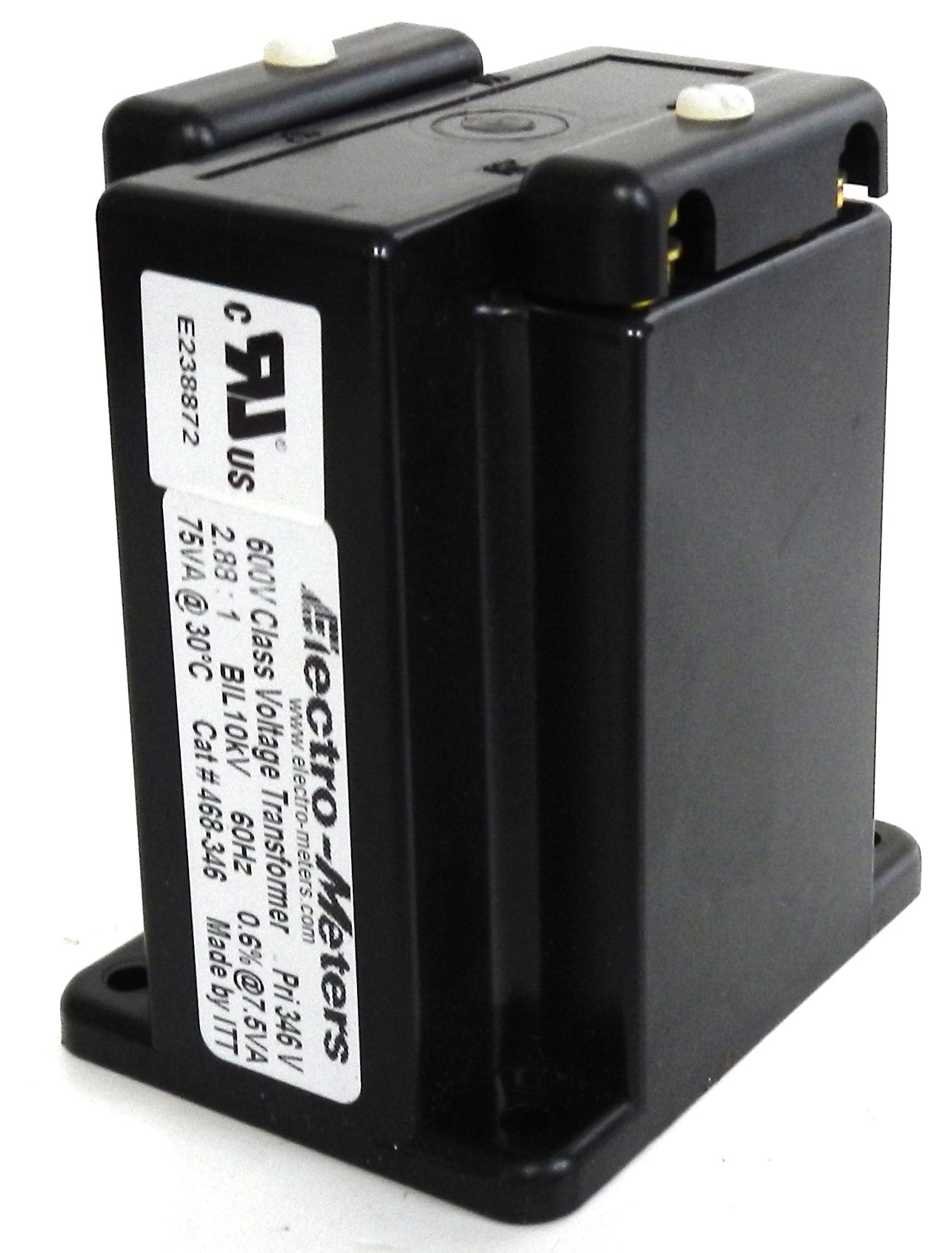

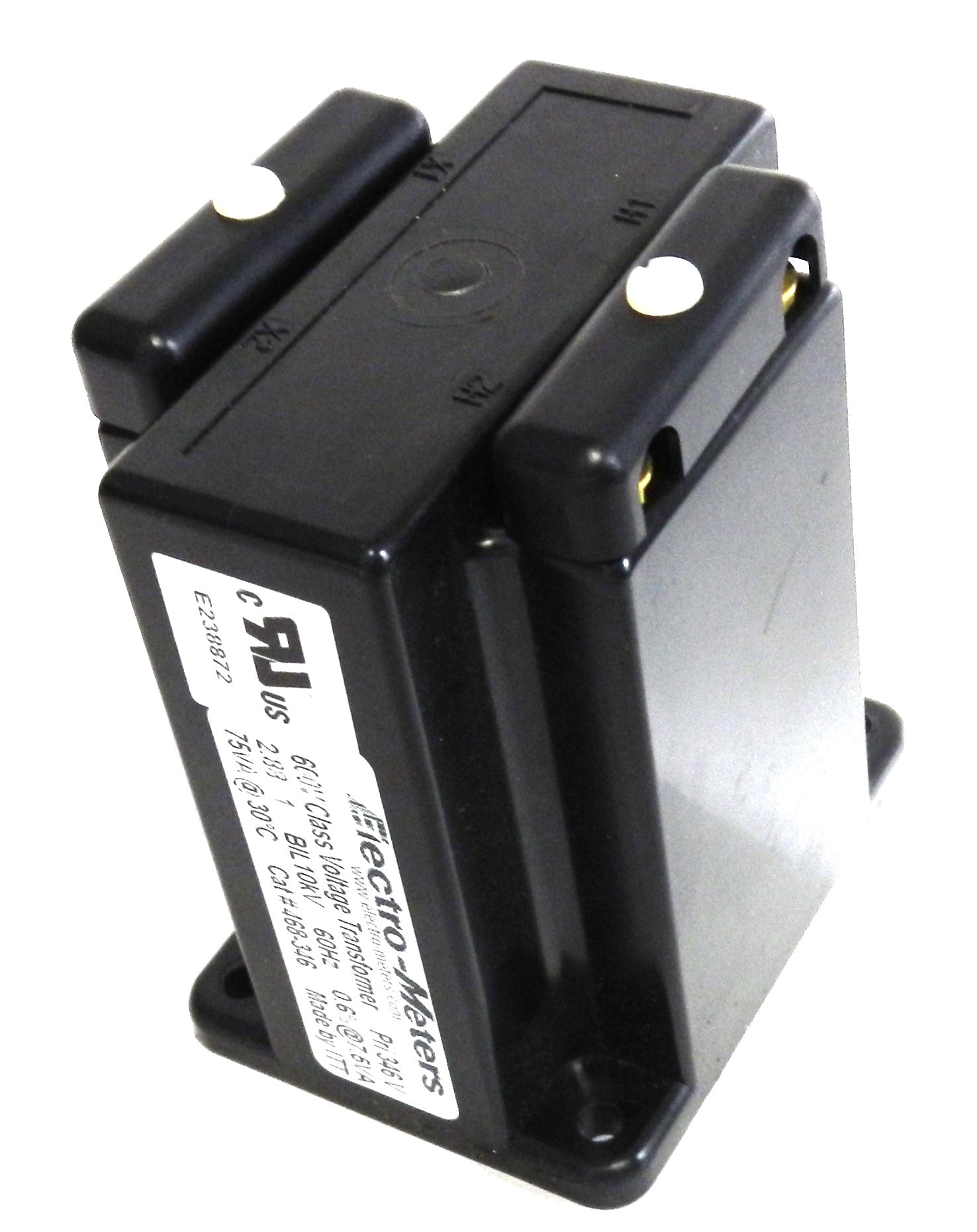

468-346 Electro-Meters Potential Transformer 347:120V Single-Phase 10kV BIL Indoor Metering VT

Description:

• Genuine Electro-Meters instrument potential transformer (voltage transformer) designed for precision metering and monitoring applications
• 347:120 VAC voltage ratio for stepping down distribution voltage to standard metering voltage
• Single-phase indoor design for switchgear, metering panels, and power monitoring systems
• 10 kV BIL insulation level for dependable electrical insulation and protection
• ±0.6% accuracy class at 7.5 VA for high-accuracy voltage measurement
• Encapsulated resin core and windings housed in a durable thermoplastic enclosure
• Designed for operation at 60 Hz electrical systems
• Suitable for meters, relays, power analyzers, and protective instrumentation
• UL Recognized and CSA Approved; manufactured to IEEE C57.13 and IEC 44-1 standards
• Ideal for commercial buildings, industrial facilities, utilities, switchboards, and electrical distribution systems.

Specifications:

• Manufacturer Name: Electro-Meters
• Part Number (MPN): 468-346
• Product Type: Potential Transformer (Voltage Transformer)
• Primary Voltage: 347 VAC
• Secondary Voltage: 120 VAC
• Voltage Ratio: 347:120
• Phase: Single-Phase
• Frequency: 60 Hz
• Accuracy Class: ±0.6% @ 7.5 VA
• Thermal Rating:
  • 75 VA @ 30°C
  • 50 VA @ 55°C
• Insulation Level: 600 V, 10 kV BIL
• Enclosure: Thermoplastic, Resin Encapsulated
• Mounting: Indoor Panel Mount
• Standards:
  • IEEE C57.13
  • IEC 44-1
  • UL Recognized
  • CSA Approved
• Application: Revenue Metering, Power Monitoring, Protective Relays, Electrical Instrumentation, Switchgear, Control Panels.

Dimensions:

• Compact indoor panel-mount design
• Thermoplastic encapsulated housing
• Designed for convenient mounting and field wiring.

Weight:

• Approximate Weight: 2.5 lb (1.13 kg).
