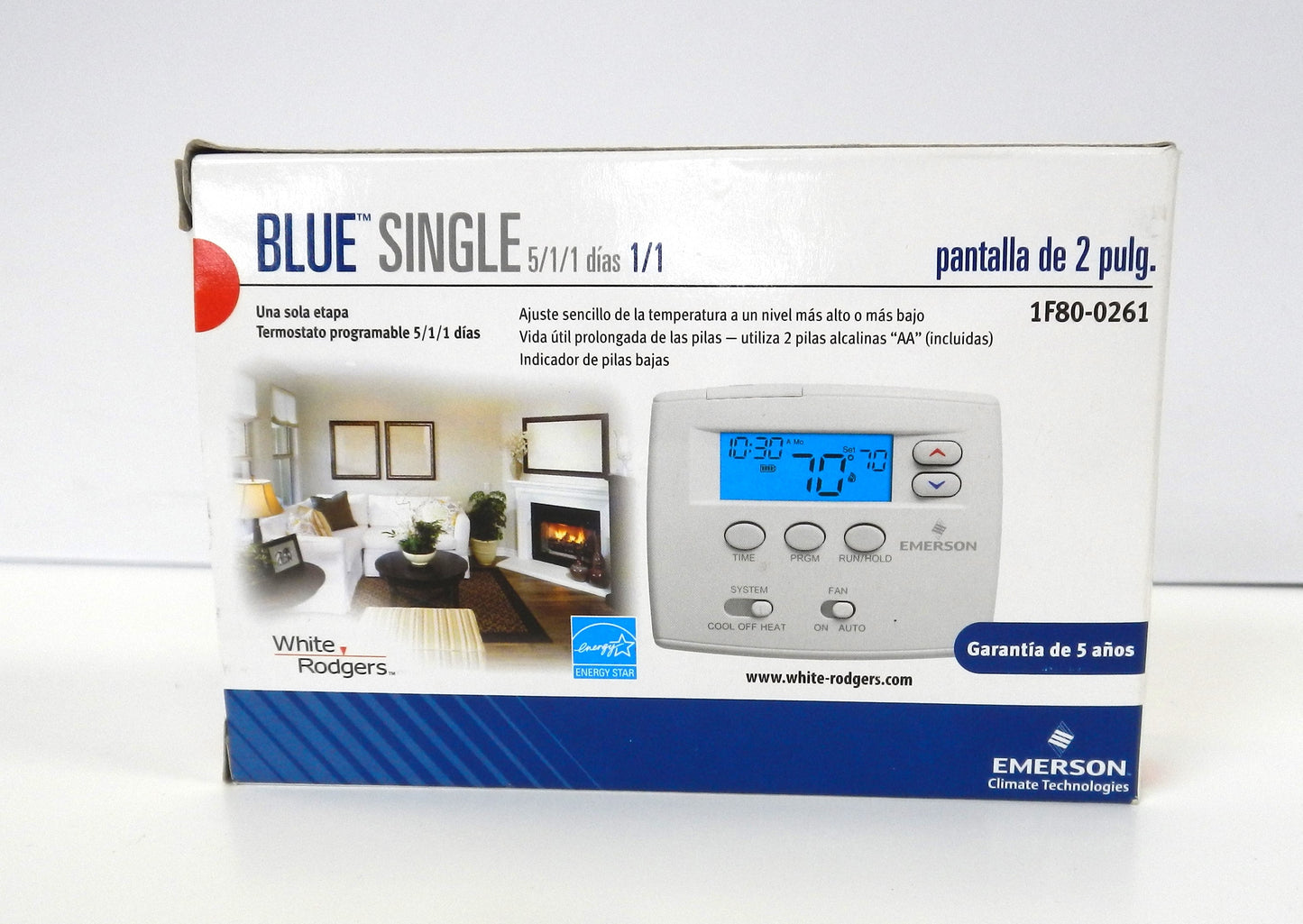

1F80-0261 Emerson White-Rodgers Blue Series 5-1-1 Programmable Single-Stage Thermostat

Description:

• Genuine Emerson / White-Rodgers Blue Series programmable digital thermostat for residential and light commercial HVAC systems
• 5-1-1 day programmable scheduling allows separate weekday, Saturday, and Sunday temperature settings
• Designed for single-stage heating and cooling systems and single-stage heat pumps without auxiliary heat
• Large 2-square-inch backlit LCD display provides clear visibility in low-light conditions
• Supports conventional gas, oil, electric, millivolt, and 24 VAC HVAC systems
• Battery-powered or optional hardwired operation with a common (C) wire
• Features Energy Management Recovery (EMR), compressor short-cycle protection, filter change reminder, and low battery indicator
• Retains programmed settings during power outages
• Ideal for residential homes, apartments, offices, and light commercial HVAC applications
• Not compatible with electric baseboard heaters, multi-stage HVAC systems, or heat pumps with auxiliary heat.

Specifications:

• Manufacturer Name: Emerson / White-Rodgers
• Part Number (MPN): 1F80-0261
• Product Series: Blue Series
• Product Type: Programmable Digital Thermostat
• Programming: 5-1-1 Day
• System Compatibility:
  • Single-Stage Heat / Cool
  • Gas
  • Oil
  • Electric
  • Millivolt
  • Single-Stage Heat Pump (No Auxiliary Heat)
• Display: 2 in² Backlit LCD
• Power Supply:
  • 2 AA Batteries
  • 20–30 VAC Hardwired (Optional C-Wire)
• Electrical Rating:
  • mV to 30 VAC
  • 50/60 Hz
• Terminal Load:
  • 1.0 A per Terminal
  • 1.5 A Maximum Combined
• Temperature Setpoint Range:
  • 45°F to 90°F (7°C to 32°C)
• Operating Temperature:
  • 32°F to 105°F (0°C to 41°C)
• Operating Humidity:
  • Up to 90% Non-Condensing
• Terminal Connections:
  • R, C, Y, W, G, O/B
• Features:
  • Energy Management Recovery (EMR)
  • Compressor Protection Delay
  • Filter Change Reminder
  • Low Battery Indicator
  • Permanent Memory Backup
• Applications:
  • Residential HVAC
  • Furnaces
  • Air Conditioners
  • Heat Pumps (Single Stage)
  • Light Commercial HVAC

Dimensions:

• Height: 3.75 in (95 mm)
• Width: 4.75 in (121 mm)
• Depth: 1.50 in (38 mm)

Weight:

• Approximate Weight: 0.13 kg (0.28 lb).
