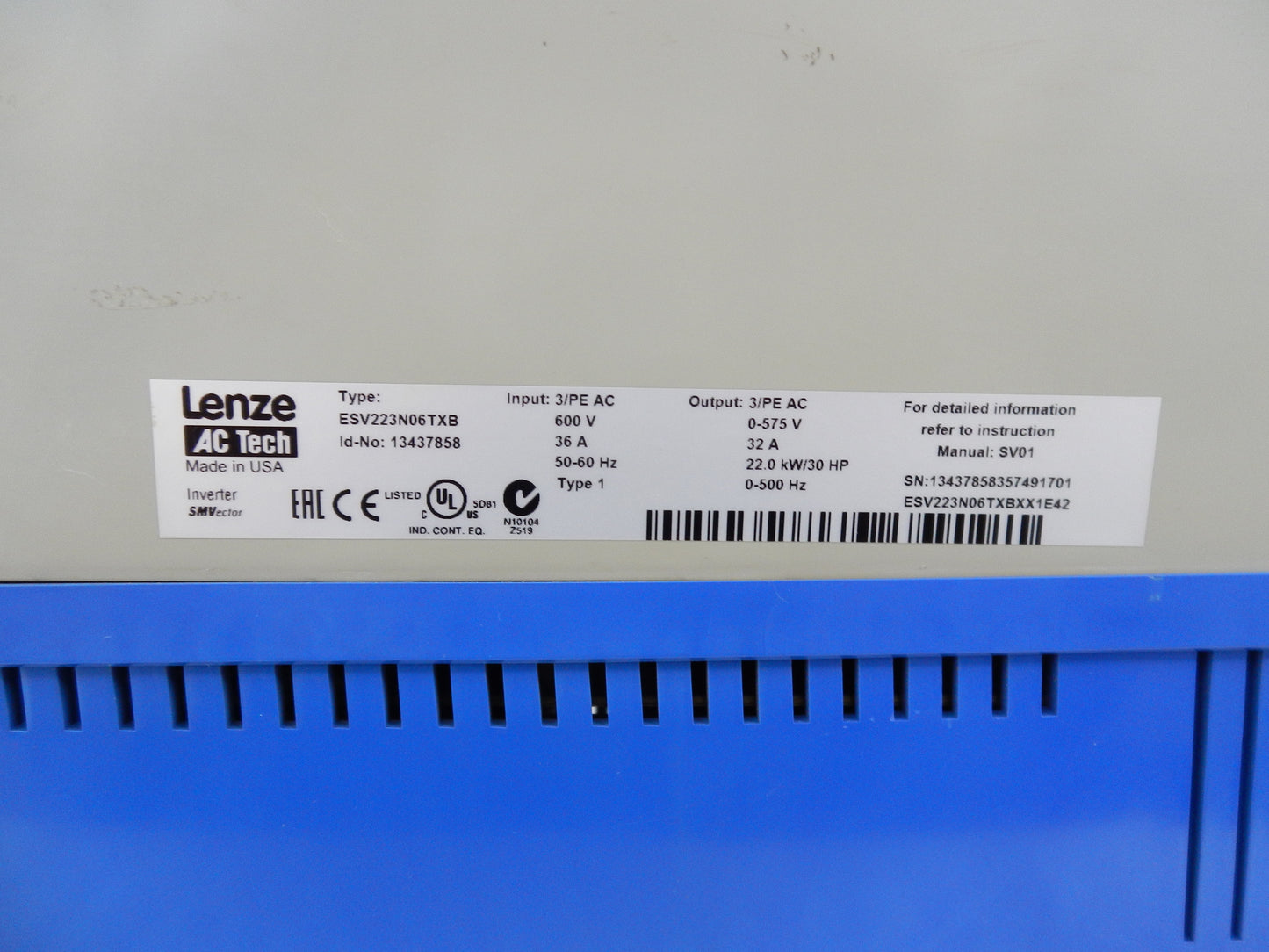

ESV223N06TXB Lenze SMVector AC Variable Frequency Drive 30HP 22kW 600V 3-Phase NEMA 1 VFD

Description:

• Genuine Lenze SMVector AC Variable Frequency Drive (VFD) for industrial motor speed and torque control
• Rated for 30 HP (22 kW), designed for 600V three-phase industrial applications
• Sensorless vector control delivers excellent low-speed torque and precise motor performance
• Supports output frequencies from 0 to 500 Hz for flexible motor control
• NEMA 1 / IP31 enclosure for indoor industrial installations
• Features an integrated LED display and keypad for quick programming and monitoring
• Includes programmable acceleration and deceleration ramps, PID control, dynamic braking support, and auto-tuning capabilities
• Suitable for pumps, fans, conveyors, compressors, mixers, packaging machinery, material handling, and OEM equipment
• Compact, high-performance design engineered for demanding industrial automation applications.

Specifications:

• Manufacturer Name: Lenze
• Part Number (MPN): ESV223N06TXB
• Product Series: SMVector
• Product Type: AC Variable Frequency Drive (VFD)
• Rated Motor Power:
  • 30 HP
  • 22 kW
• Input Voltage: 480–600 VAC
• Input Phase: 3-Phase
• Output Phase: 3-Phase
• Rated Output Current: 32 A
• Output Frequency Range: 0–500 Hz
• Control Method: Sensorless Vector Control
• Enclosure Rating: NEMA 1 / IP31
• Display: Integrated LED Keypad
• Mounting Type: Panel Mount
• Dynamic Braking: Supported
• Auto-Tuning: Supported
• Protection Features:
  • Overcurrent Protection
  • Overvoltage Protection
  • Undervoltage Protection
  • Overtemperature Protection
  • Motor Overload Protection
  • Short Circuit Protection
• Certifications:
  • cULus
  • CE
• Applications:
  • Pumps
  • Fans
  • Conveyors
  • Compressors
  • Material Handling
  • Packaging Equipment
  • Industrial Automation
  • OEM Machinery

Dimensions:

• Height: 12.5 in (318 mm)
• Width: 6.9 in (175 mm)
• Depth: 8.1 in (206 mm).

Weight:

• Approximate Weight: 13.2 lb (6.0 kg).
