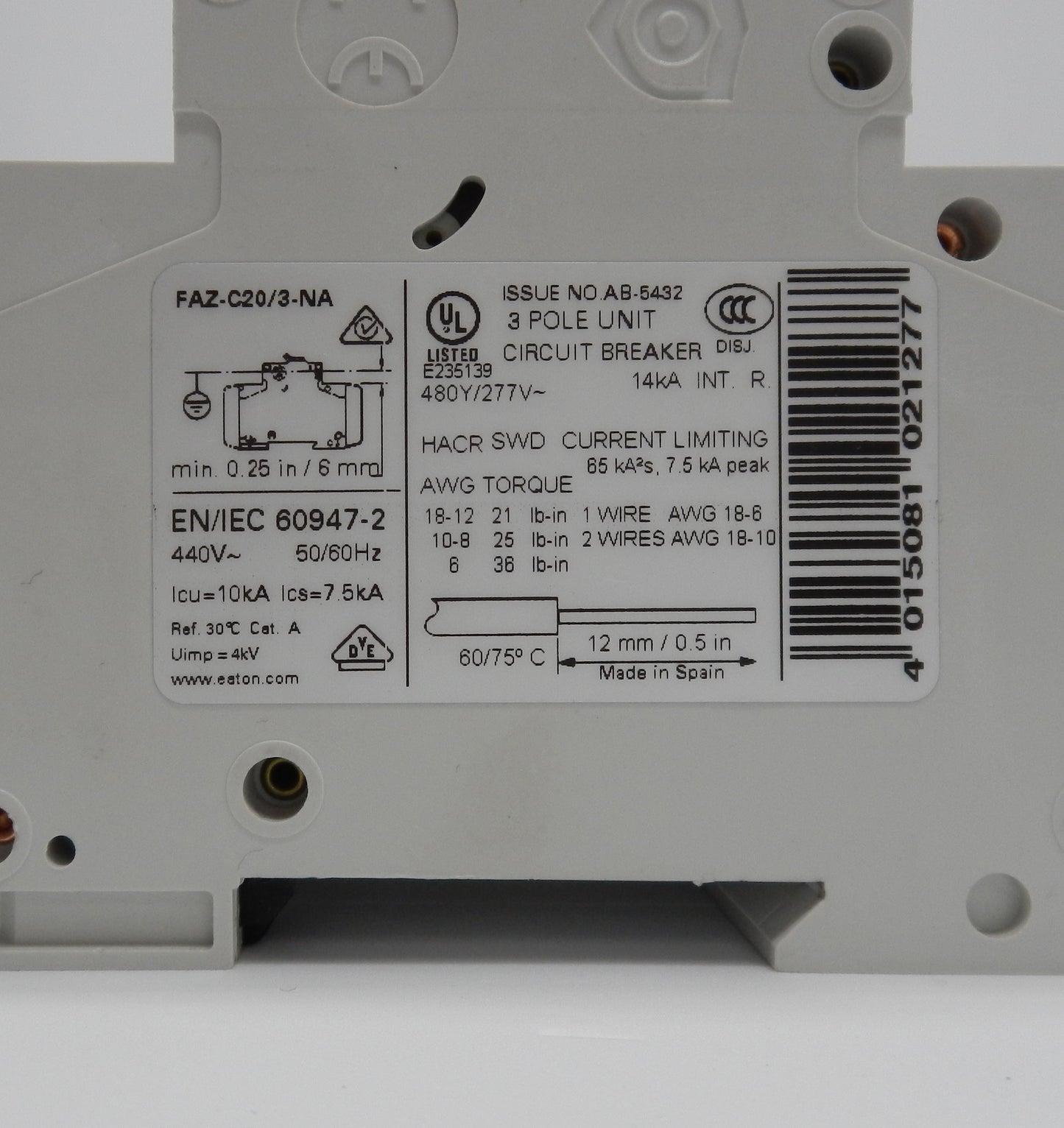

FAZ-C20/3-NA Eaton 20A 3-Pole Miniature Circuit Breaker C-Curve UL489 DIN Rail

Description:

• Genuine Eaton FAZ Series miniature circuit breaker for industrial branch circuit and control panel protection
• Provides 3-pole, 20 Amp overcurrent protection for three-phase electrical systems
• C-Curve trip characteristic ideal for circuits with moderate inrush currents, including small motors, transformers, pilot devices, and control equipment
• Rated for 277/480 VAC, 50/60 Hz operation
• UL 489 Listed branch circuit protector suitable for industrial and commercial applications
• Thermal-magnetic trip mechanism provides dependable overload and short-circuit protection
• Compact 35 mm DIN rail mounting for fast installation in industrial control panels
• Screw terminal connections ensure secure and reliable wiring
• Suitable for industrial automation, OEM machinery, motor control panels, HVAC systems, and electrical distribution equipment
• Part of Eaton's FAZ-NA series designed specifically for North American UL applications.

Specifications:

• Manufacturer Name: Eaton
• Part Number (MPN): FAZ-C20/3-NA
• Product Series: FAZ-NA
• Product Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 3
• Rated Current: 20 A
• Trip Curve: C
• Trip Characteristic: 5–10 × In
• Protection Type: Thermal-Magnetic
• Rated Voltage: 277/480 VAC
• Frequency: 50/60 Hz
• Interrupt Rating:
  • 14 kAIC (UL 489)
  • 15 kA (IEC 60947-2)
• Mounting Type: 35 mm DIN Rail
• Terminal Type: Screw Terminals
• Standards:
  • UL 489 Listed
  • CSA C22.2 No. 5
  • IEC 60947-2
• Application:
  • Branch Circuit Protection
  • Industrial Control Panels
  • Motor Control
  • Small Transformers
  • Pilot Devices
  • OEM Equipment
  • Industrial Automation

Dimensions:

• Height: 105 mm (4.13 in)
• Width: 53.1 mm (2.09 in)
• Depth: 75.5 mm (2.97 in).

Weight:

• Approximate Weight: 0.45 kg (1.0 lb).
