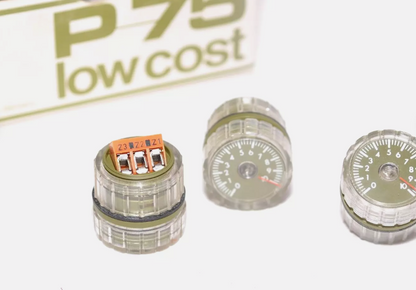

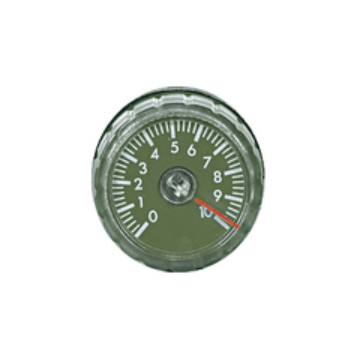

FB/F10/10SEC./POT.1MOHM Pilz Remote Timer Module 10 Second 1 MΩ Panel Mount Timer Controller

Description:

• Genuine Pilz remote timer controller designed for use with compatible PMDsrange electronic monitoring relays and timer modules
• Provides remote adjustment of timer settings via a front-mounted rotary potentiometer
• Features an absolute time scale up to 10 seconds with a 1 MΩ potentiometer
• Designed for 22.5 mm panel mounting, making it ideal for control panel installations
• Rotary knob allows precise adjustment of timing parameters from the front of the enclosure
• Rugged construction with IP66 protection for reliable operation in industrial environments
• Ideal for industrial automation, machine control, process equipment, safety systems, and OEM control panels
• Commonly used as an external timing adjustment accessory for compatible Pilz PMDsrange monitoring relays and timer modules.

Specifications:

• Manufacturer Name: Pilz
• Part Number (MPN): FB/F10/10SEC./POT.1MOHM
• Product Type: Remote Timer Controller / Timer Module Accessory
• Product Family: PMDsrange Accessories
• Function: External Timer Adjustment
• Maximum Time Setting: 10 Seconds
• Potentiometer Resistance: 1 MΩ
• Scale Type: Absolute
• Adjustment Method: Rotary Knob
• Mounting Diameter: 22.5 mm
• Mounting Type: Panel Mount
• Protection Rating: IP66
• Housing: Industrial Plastic
• Applications:
  • Electronic Monitoring Relays
  • Timer Modules
  • Industrial Automation
  • Machine Control
  • Safety Circuits
  • OEM Equipment
  • Control Panels

Dimensions:

• Mounting Hole Diameter: 22.5 mm
• Compact front-panel design for industrial control panels.

Weight:

• Approximate Weight: 0.02 kg (0.04 lb).
