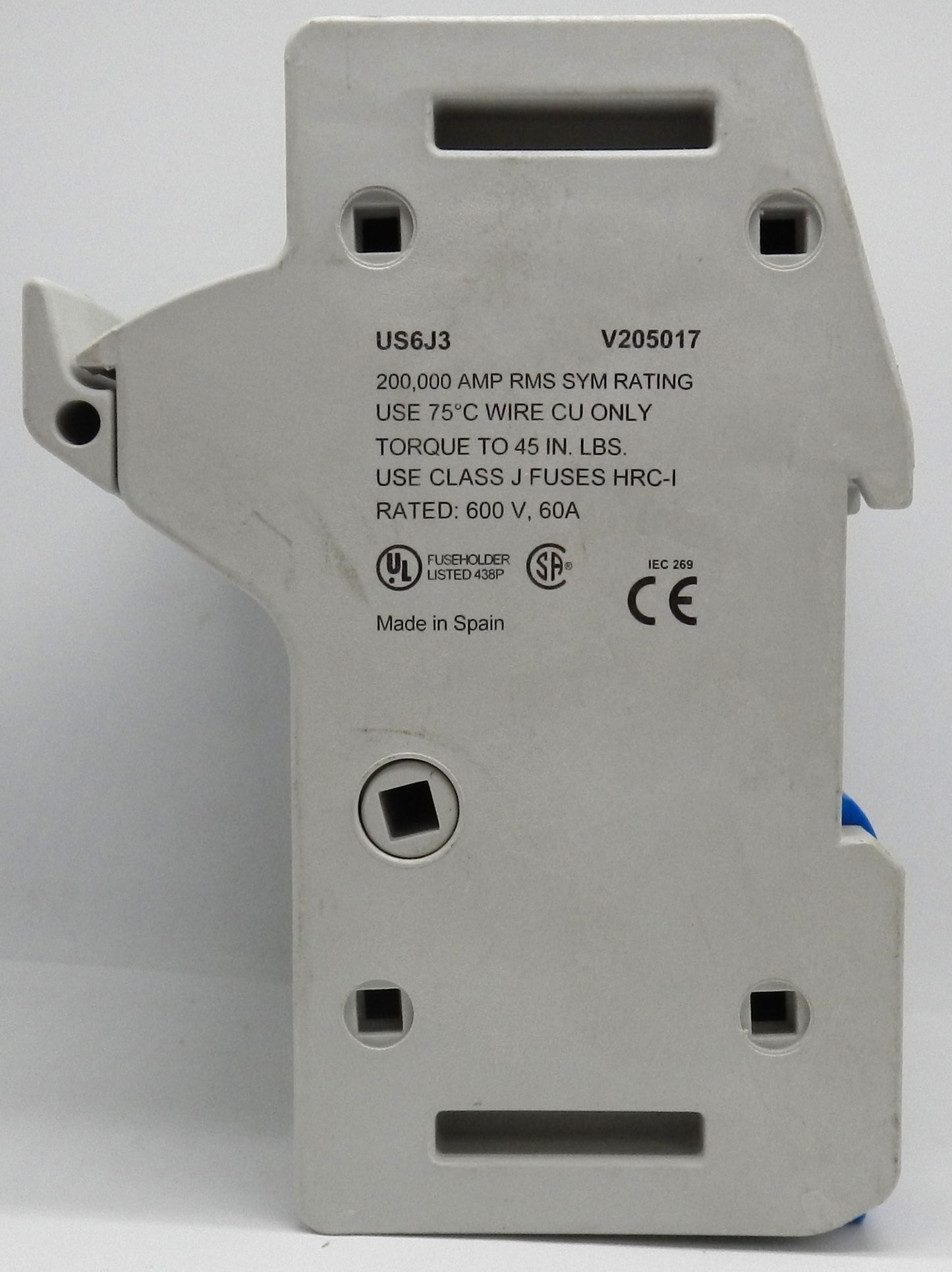

US6J3 Ferraz Shawmut UltraSafe 60A 3-Pole Class J Fuse Holder 600VAC DIN Rail

Description:

• Genuine Ferraz Shawmut (Mersen) UltraSafe fuse holder for industrial power distribution and circuit protection
• Designed for Class J fuses with a maximum current rating of 60 Amps
• 3-pole configuration for three-phase electrical systems
• Rated for 600 VAC / 600 VDC industrial applications
• Finger-safe IP20 design enhances operator safety during installation and fuse replacement
• Pressure plate screw terminals provide secure, vibration-resistant wire connections
• Snap-mounts directly onto a 35 mm DIN rail for fast installation
• Features a latch that remains open for easy fuse replacement and servicing
• Lockable in the open position for added maintenance safety
• Compatible with AJT, A4J, and HSJ Class J fuses
• Ideal for motor control, transformers, lighting, HVAC, industrial control panels, OEM equipment, and general power distribution.

Specifications:

• Manufacturer Name: Ferraz Shawmut (Mersen)
• Part Number (MPN): US6J3
• Product Series: UltraSafe
• Product Type: Class J Fuse Holder
• Fuse Class: Class J
• Number of Poles: 3
• Current Rating: 60 A
• Voltage Rating:
  • 600 VAC
  • 600 VDC
• Mounting Type: 35 mm DIN Rail
• Terminal Type: Pressure Plate Screw Terminal
• Wire Size:
  • 14–2 AWG Copper (Solid or Stranded)
• Material: Polyamide
• Protection Rating: IP20 Finger Safe
• Lockable: Yes (Open Position)
• Standards:
  • UL Listed (UL 512)
  • CSA Certified
  • IEC Compliant
  • RoHS Compliant
• Recommended Fuse Types:
  • AJT
  • A4J
  • HSJ Class J Fuses
• Applications:
  • Industrial Control Panels
  • Motor Protection
  • Transformers
  • HVAC Systems
  • Lighting Circuits
  • OEM Equipment
  • Electrical Distribution

Dimensions:

• Height: 4.80 in (121.9 mm)
• Width: 4.72 in (119.9 mm)
• Depth: 3.50 in (88.9 mm)

Weight:

• Approximate Weight: 0.83 kg (1.83 lb).
