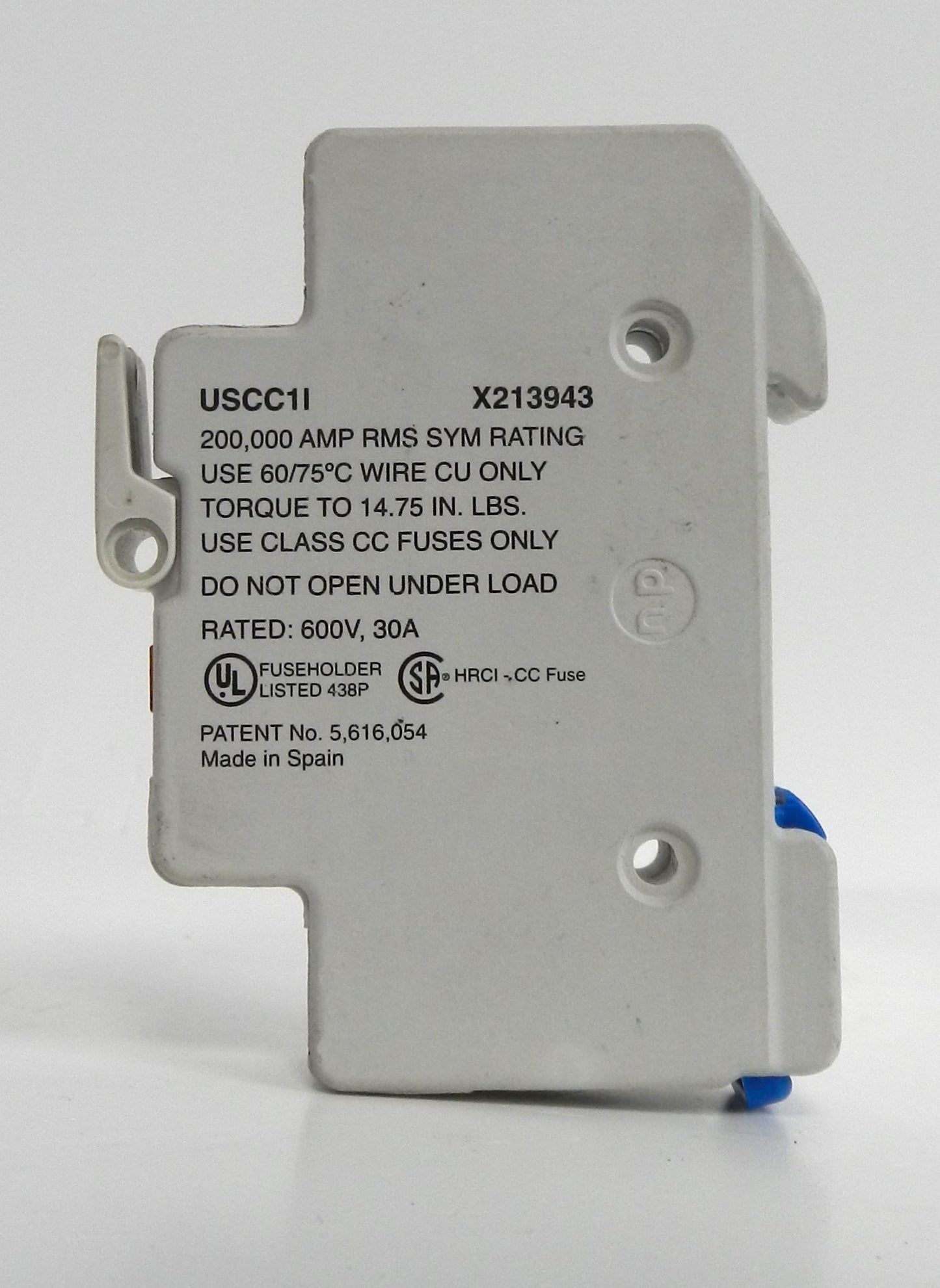

USCC1I X213943 Ferraz Shawmut UltraSafe Class CC Fuse Holder 30A 600VAC DIN Rail with Indicator

Description:

• Genuine Ferraz Shawmut (Mersen) UltraSafe fuse holder for industrial control panel and branch circuit protection
• Designed for Class CC fuses (10 × 38 mm) with a maximum current rating of 30A
• Single-pole modular fuse holder with an integrated blown fuse indicator for quick fault identification
• Rated for 600 VAC and 600 VDC applications
• Finger-safe design enhances operator safety during installation and maintenance
• Compact footprint saves panel space and allows easy side-by-side mounting
• Mounts directly to a 35 mm DIN rail for fast installation
• Pressure-plate screw terminals accept #14 to #6 AWG copper conductors
• Ideal for motor circuits, transformers, industrial control panels, OEM machinery, PLC panels, HVAC equipment, and automation systems
• Part of the Mersen UltraSafe USCC Series fuse holder family for reliable Class CC fuse protection.

Specifications:

• Manufacturer Name: Ferraz Shawmut (Mersen)
• Part Number (MPN): USCC1I X213943
• Alternate Catalog Number: USCC1I
• Product Series: UltraSafe
• Product Type: Class CC Fuse Holder
• Number of Poles: 1
• Fuse Type: Class CC (10 × 38 mm)
• Rated Current: 30 A
• Rated Voltage:
  • 600 VAC
  • 600 VDC
• Interrupt Rating:
  • 200 kA RMS Symmetrical (AC)
  • 100 kA RMS Symmetrical (DC)
• Terminal Type: Pressure Plate Screw
• Wire Size: #14–#6 AWG Copper
• Mounting Type: 35 mm DIN Rail
• Body Material: High-Strength Polyamide
• Feature: Blown Fuse Indicator
• Standards:
  • UL Listed
  • CSA Certified
  • UL 4248-4
• Applications:
  • Industrial Control Panels
  • Motor Protection
  • Transformers
  • PLC Systems
  • HVAC Equipment
  • OEM Machinery
  • Industrial Automation

Dimensions:

• Height: 78 mm (3.07 in)
• Width: 17.5 mm (0.69 in)
• Depth: 59 mm (2.32 in)

Weight:

• Approximate Weight: 0.014 kg (0.03 lb).
