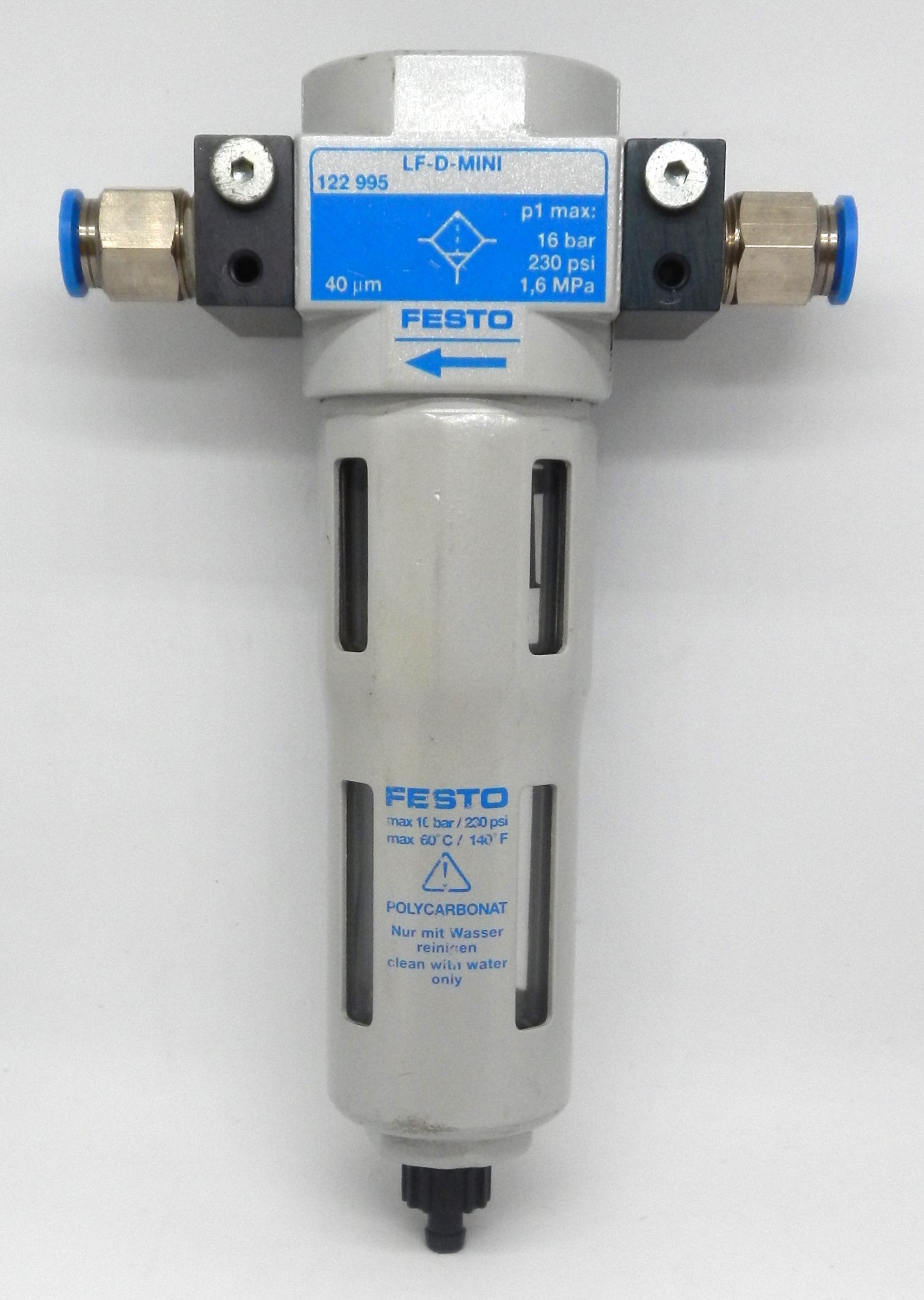

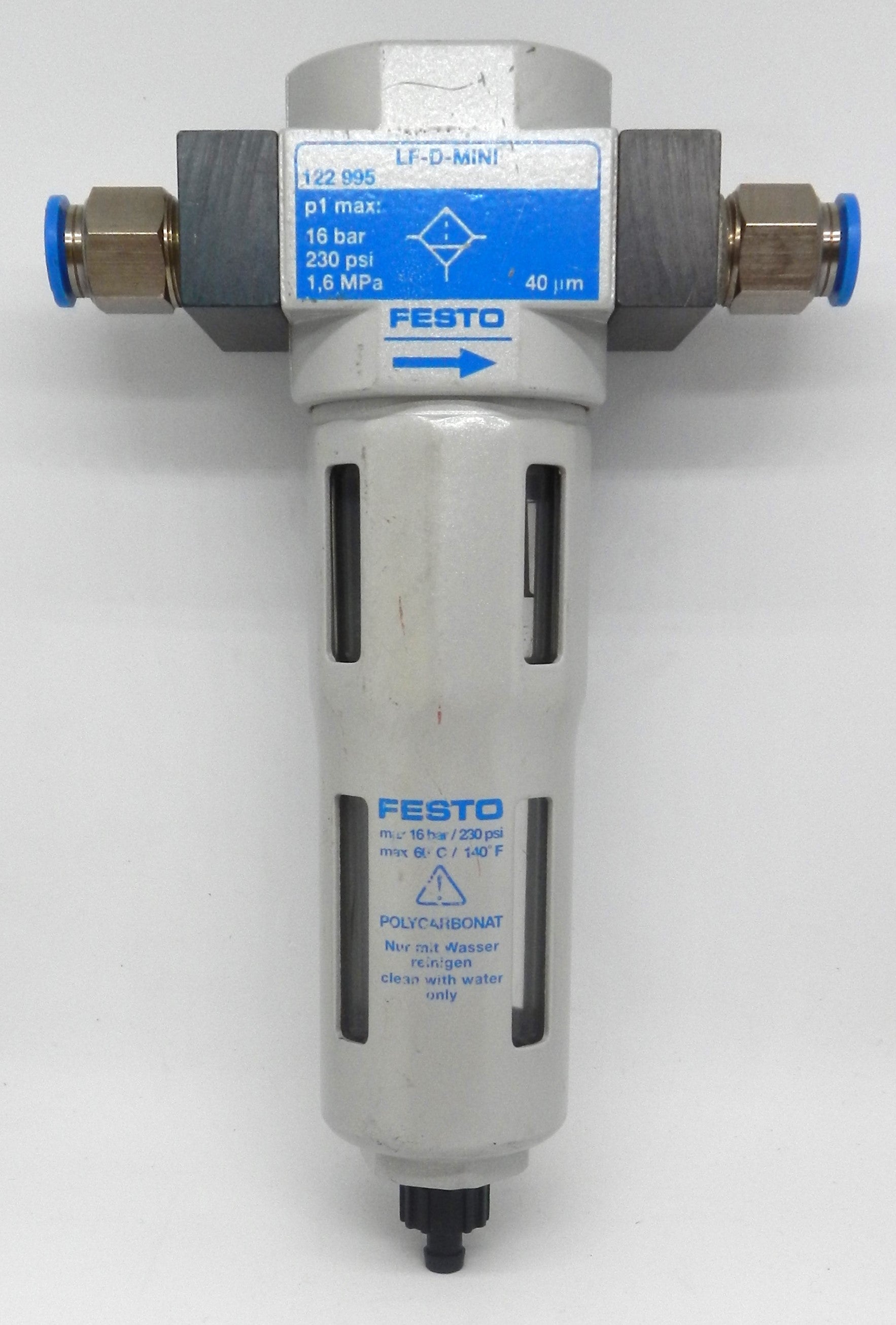

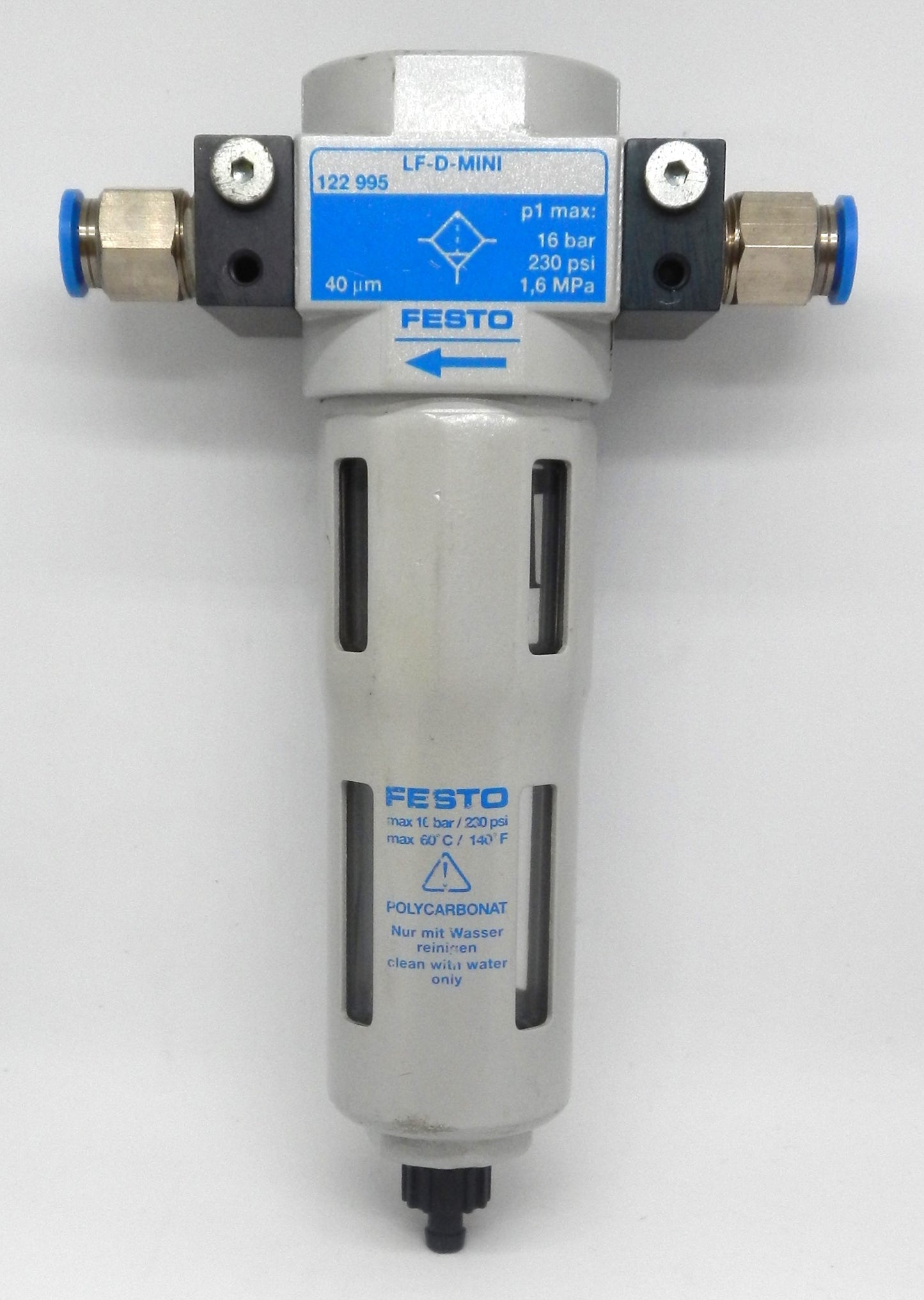

LF-D-MINI Festo Pneumatic Air Filter 40µm Manual Drain 0-16 Bar D-Series Mini

Description:

• Genuine Festo pneumatic compressed-air filter for industrial air preparation systems
• Part number LF-D-MINI / 192551
• Part of the Festo D-Series Mini air preparation family
• Provides 40 µm filtration to remove solid particles and condensate from compressed-air systems
• Uses a sintered filter with centrifugal separator for effective air cleaning
• Features a manual rotary condensate drain
• Equipped with a metal bowl guard for additional protection in industrial environments
• Operating pressure range of 0–16 bar
• Suitable for compressed air and compatible inert gases
• Designed for vertical installation within ±5°
• Suitable for pneumatic machinery, automation systems, production equipment, air preparation assemblies, and OEM applications

Specifications:

• Manufacturer: Festo
• Part Number: LF-D-MINI
• Festo Part Number: 192551
• Product Type: Pneumatic Air Filter
• Series: D-Series
• Size: Mini
• Filtration Grade: 40 µm
• Filter Design: Sintered Filter with Centrifugal Separator
• Condensate Drain: Manual Rotary
• Bowl Guard: Metal
• Operating Pressure: 0–16 bar
• Operating Medium: Compressed Air / Inert Gas
• Mounting Position: Vertical ±5°
• Mounting Type: In-Line / With Accessories
• Pneumatic Connections: Sub-Base
• Filter Material: PE
• Housing Material: Die-Cast Zinc
• Bowl Material: Polycarbonate (PC)
• Ambient Temperature: -10°C to +60°C
• Medium Temperature: -10°C to +60°C
• Storage Temperature: -10°C to +60°C
• Corrosion Resistance Class: CRC 2
• Material Compliance: RoHS Compliant

Dimensions:

• Size Class: Mini
• Designed for compact modular installation in Festo D-Series air preparation systems
• Connection plates/adapters determine the final threaded port configuration.

Weight:

• Product Weight: 250 g (0.55 lb)
